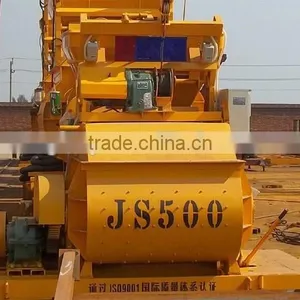

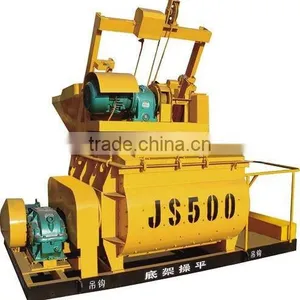

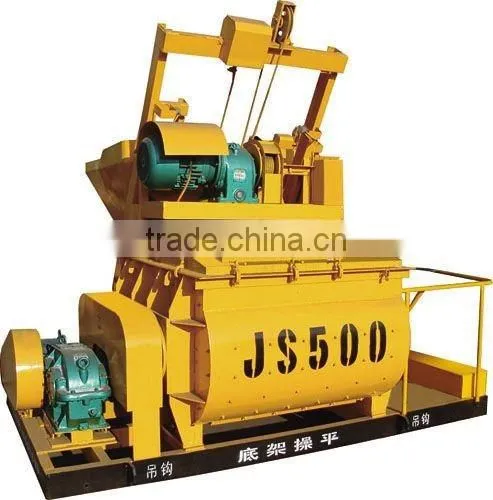

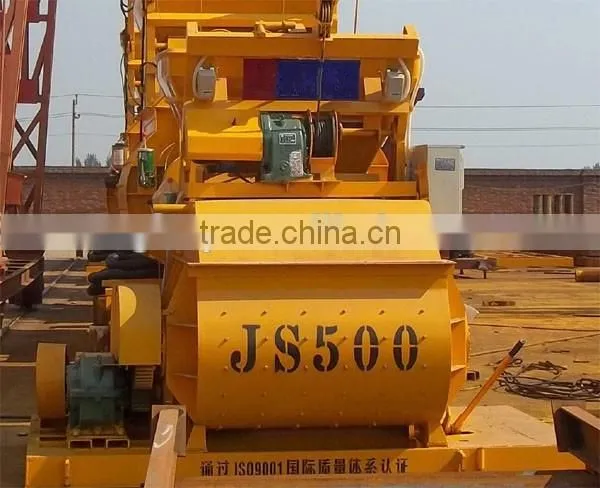

JS500 ISO approved mini concrete mixer with good performance
JS500 mini concrete mixer can mixing the plastic and half-dry hard concrete,fluid concrete and light aggregate concrete. This mixer is applicable to the common construction working site, road, bridge and each kind of precast product factory. It can work independently or be used as facility concrete plant, which is applied with correspond batching machine.
Different models of mini concrete mixer:
Model |
JS500 |
JS750 |
JS1000 |
|
Discharge volume (L) |
500L |
750 |
1000 |
|
Charging volume (L) |
800L |
1200 |
1600 |
|
Theoretical capacity (m3/h) |
≥25 |
≥35 |
≥60 |
|
Maximum aggregate grain size (mm) |
80/60 |
80/60 |
80/80 |
|
Working circle(s) |
72 |
72 |
60 |
|
Speed of hopper upgrade (m/min) |
18 |
18 |
18 |
|
Mixing blade |
Speed(r/min) |
35 |
31 |
23 |
Quantity |
2×7 |
2×7 |
2×10 |
|
Mixing motor |
Model |
Y180M-4 |
Y200L-4 |
Y280S-4 |
Power(kw) |
18.5 |
30 |
37X2 |
|
Lifting motor |
Model |
YEZ132S-4-B5 |
YEZ132M-4-B5 |
YEJ180L-4 |
Power(kw) |
5.5 |
7.5 |
22 |
|
Water pump motor |
Model |
50DWB20-8A |
65DW35-5 |
CK65/20L |
Power(kw) |
0.75 |
1.1 |
4 |
|
|
Dimensions (L x W x H)mm |
Transport dimension(mm) |
3050*2300*2680 |
3650*2600*2890 |
5860*2250*2735 |
Working condition dimension(mm) |
4461*3050*5225 |
4951*3650*6225 |
10720*3870*10726 |
|
Height of unloading(mm) |
1500 |
1600 |
3800 |
|
Weight(kg) |
4000 |
5500 |
15000 |
|
Mini concrete mixer mixing system :
Shipping for concrete mixer:
Working principle of mini concrete mixer:
After electrify, the main raw material through the hopper, into the internal mixer, two stirring shaft by the motor reducer drive, in the opposite direction of rotation of the mixing work, make sufficient raw materials mixing.
How to get this mini concrete mixer:
Hot seling products:
Any question about this mini concrete mixer, please feel free to ask us:
