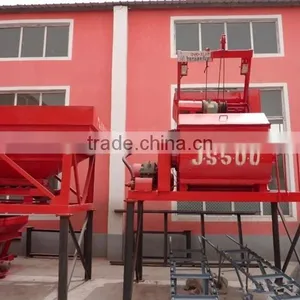

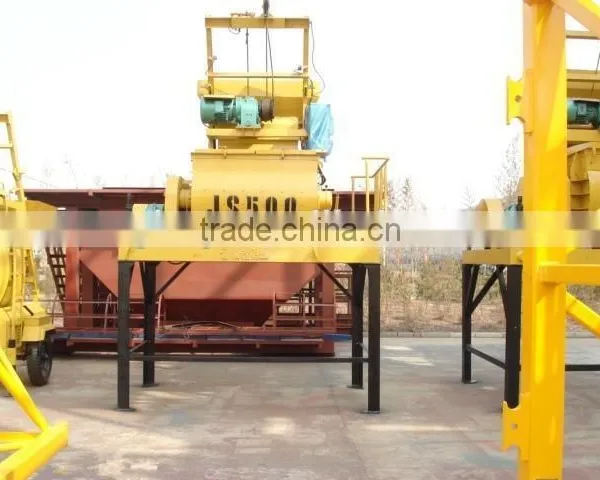

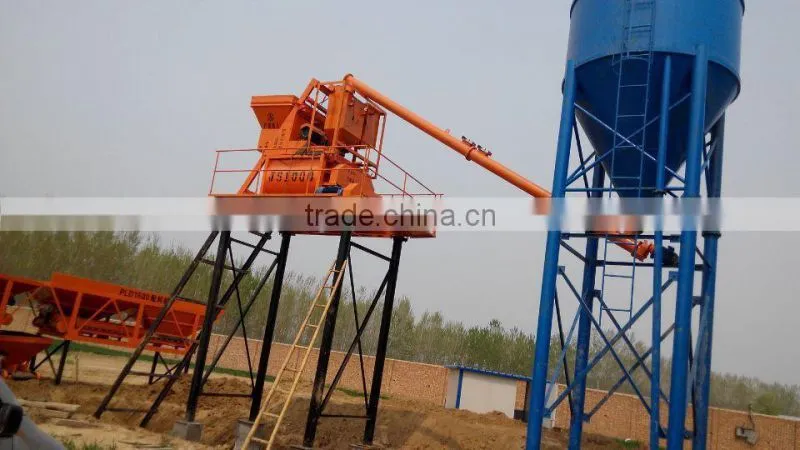

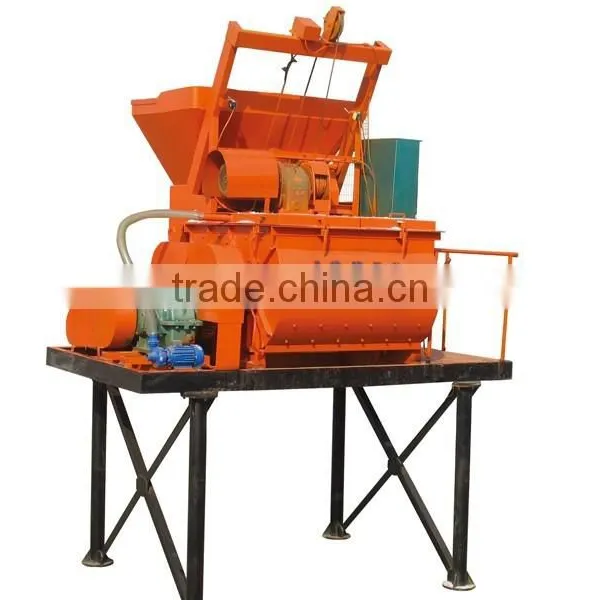

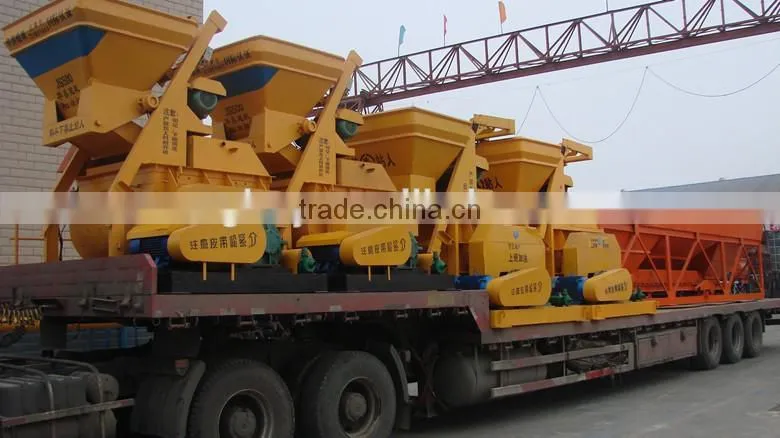

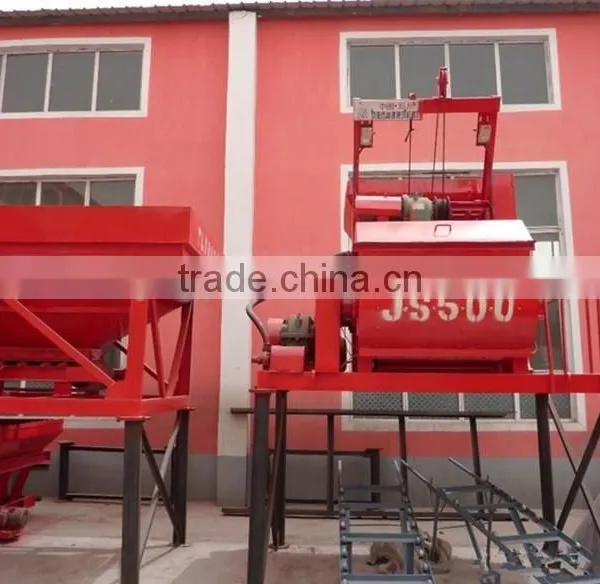

JS500 concrete mixer machine for construction with 500L discharge volume
Different models of concrete mixer machine:
Model |
JS500 |
JS750 |
JS1000 |
|
Discharge volume (L) |
500L |
750 |
1000 |
|
Charging volume (L) |
800L |
1200 |
1600 |
|
Theoretical capacity (m3/h) |
≥25 |
≥35 |
≥60 |
|
Maximum aggregate grain size (mm) |
80/60 |
80/60 |
80/80 |
|
Working circle(s) |
72 |
72 |
60 |
|
Speed of hopper upgrade (m/min) |
18 |
18 |
18 |
|
Mixing blade |
Speed(r/min) |
35 |
31 |
23 |
Quantity |
2×7 |
2×7 |
2×10 |
|
Mixing motor |
Model |
Y180M-4 |
Y200L-4 |
Y280S-4 |
Power(kw) |
18.5 |
30 |
37X2 |
|
Lifting motor |
Model |
YEZ132S-4-B5 |
YEZ132M-4-B5 |
YEJ180L-4 |
Power(kw) |
5.5 |
7.5 |
22 |
|
Water pump motor |
Model |
50DWB20-8A |
65DW35-5 |
CK65/20L |
Power(kw) |
0.75 |
1.1 |
4 |
|
|
Dimensions (L x W x H)mm |
Transport dimension(mm) |
3050*2300*2680 |
3650*2600*2890 |
5860*2250*2735 |
Working condition dimension(mm) |
4461*3050*5225 |
4951*3650*6225 |
10720*3870*10726 |
|
Height of unloading(mm) |
1500 |
1600 |
3800 |
|
Weight(kg) |
4000 |
5500 |
15000 |
|
Working principle of concrete mixer machine:
After electrify, the main raw material through the hopper, into the internal mixer, two stirring shaft by the motor reducer drive, in the opposite direction of rotation of the mixing work, make sufficient raw materials mixing.
How to get this concrete mixer machine:
Hot seling products:
Any question about this concrete mixer machine, please feel free to ask us:
