CE approved sawdust wood chips rotary dryer

Specifications

wood chips rotary dryer
1.moisture of raw materail can be reduced to below 5%
al, oil, gas can be used

  CE approved sawdust wood chips rotary dryer



Usage of   wood chips rotary dryer



1, with the heat air recycle inside to remove moisture of material less than 15% .

2, Use to dry manure, sawdust

3, working method : a heated gas.

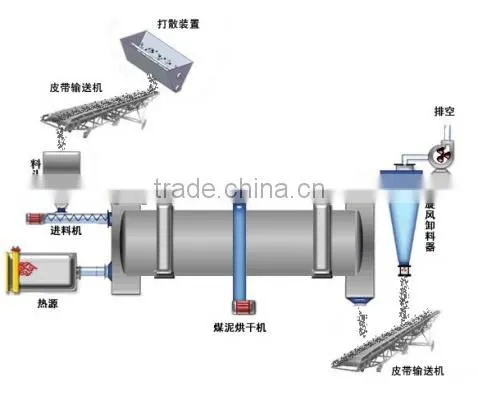

Working principle of wood chips rotary dryer   :



1, by conveyor raw materials is convery into dryer

2, a heated gas of fire furnace into dryer

3, rotating tube then out of tube through by sawdust collector



Content of   wood chips rotary dryer



1, fire furnace

2, tube

3, conveyor

4, sawdust collector



Specification of   wood chips rotary dryer   :



Type	Transfers Barrel dryer (mm)	Transfers barrel length (m)	Output (Ton/h)	Gradient (°)	Rotational Speed/minute (r/min)	Power (kw)	Volume/cube (m3)
0.6×8	600	8	2	3-5	8	4	2026
0.8×10	800	10	4	3-5	7.2	4	5.02
1.0×12	1000	12	6	3-5	6.73	5.5	7.85
1.5×12	1500	12	10	3-5	5.8	11-7.5	13.31
1.5×18	1500	18	15	3-5	4.8	15-22	21.2
1.8×18	1800	18	20	3-5	3.2	18.5-30	48.22
2.2×22	2200	22	25	3-5	3	22-30	70.43
2.8×24	2800	24	30	3-5	2.59	30-55	147.8
