NCB Server Cabinet
Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
APPLICATION
Widely applied in finance, securities and data center; adopted by the professional servers’ network providers as IBM, SUN, HP, COMPAQ, DELL etc.
MATERIALS
Cold-rolled steel sheet. Thickness for frame 1.2mm, mounting rail
2.0mm(1.5mm for 600mm depth cabinet), fixed shelf 1.2mm , side
panel 1.2mm. Thickness for smoky grey glass 5mm
Technical specification

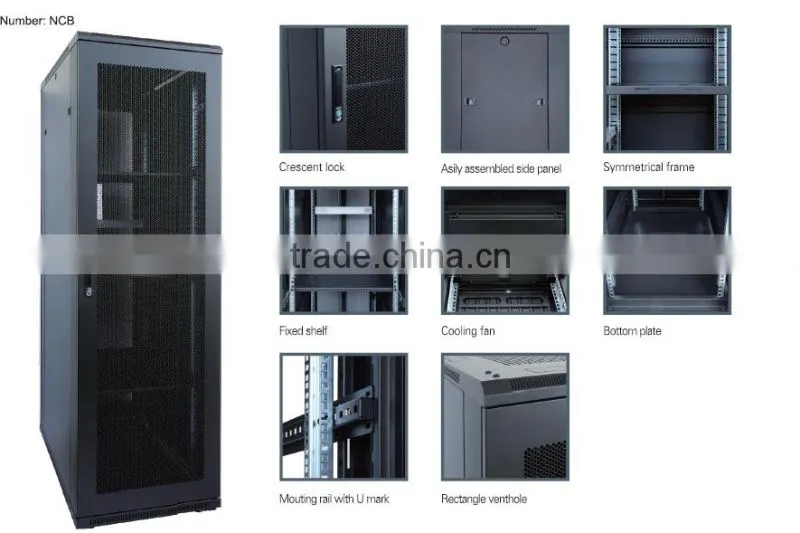

Exquisite design with precise craftsmanship
Good compatibility, adapt to more servers. Perfect ventilation

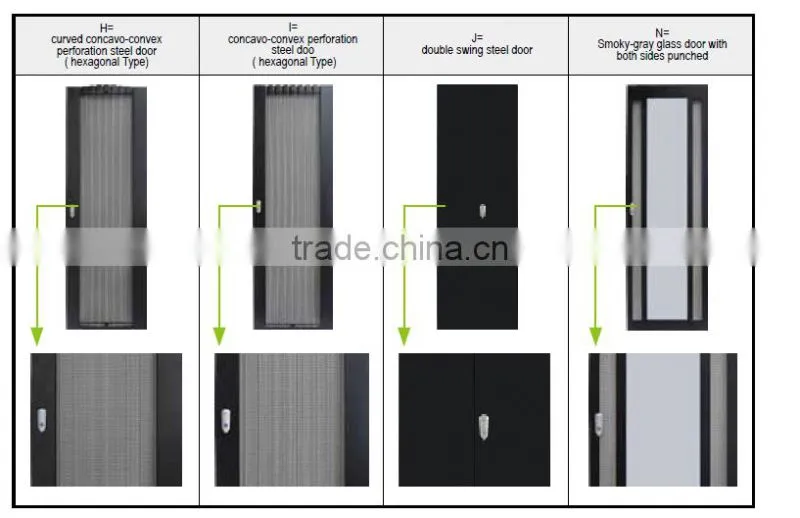

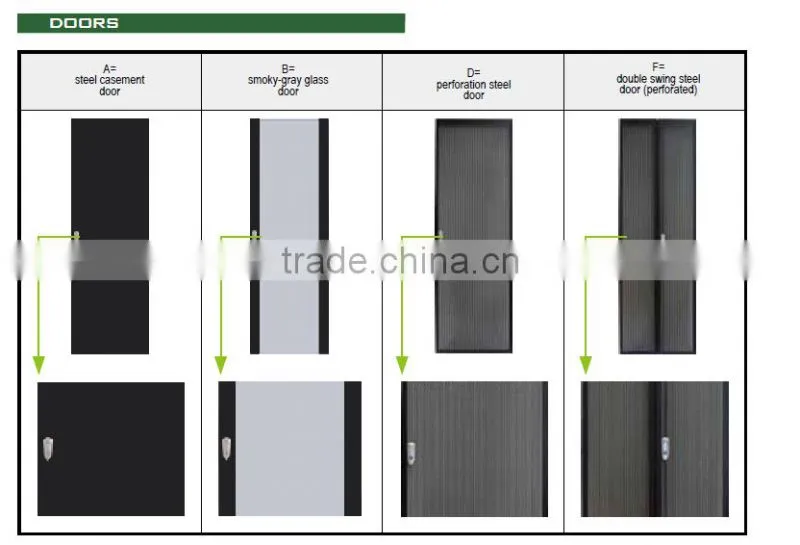

Vented front door and rear door enable ventilation and reliable operation
The top and bottom wiring channel can be closed and adjusted.
Optional plinth to meet under base wiring, ventilation and rat-proof

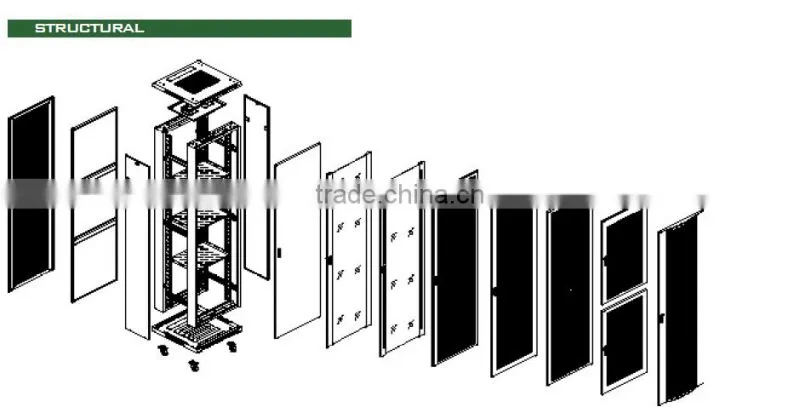

Rack’s side panel can be easily assembled
Adjustable feet and heavy duty castors are available at the same time ,
static loading: 800kg.(with adjustable feet).
Advanced lock
Surface finish: degreasing, pickling, phosphating, powder coating
Available in black and gray

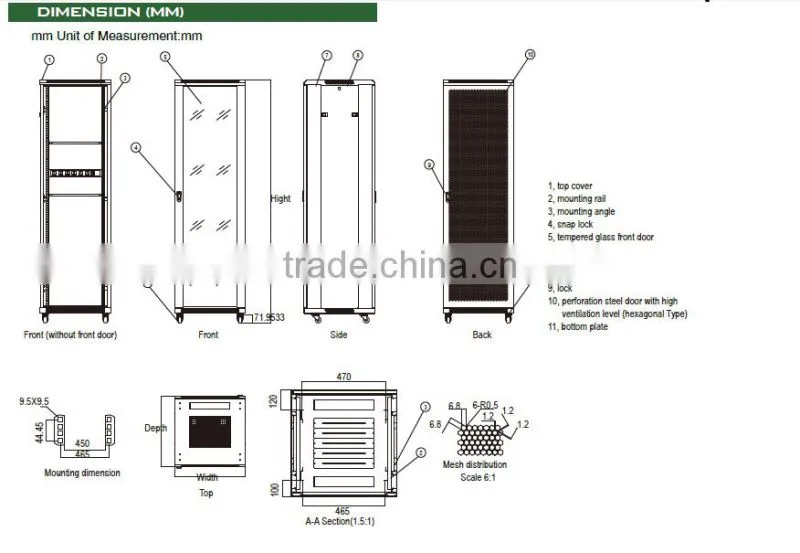

Height, width, and depth selectable, full range of optional accessories.
| Part No | Capacity/U | Width/mm | Depth/mm | Height/mm | CM/Width/m | CM/Depth/m | CM/Height/m | Volume/(M3 ) |
| NCB18-66-*# | 18U | 600 | 600 | 988 | 0.63 | 0.63 | 1.02 | 0.4 |
| NCB22-66-*# | 22U | 600 | 600 | 1166 | 0.63 | 0.63 | 1.2 | 0.48 |
| NCB22-68-*# | 22U | 600 | 800 | 1166 | 0.63 | 0.83 | 1.2 | 0.63 |
| NCB27-66-*# | 27U | 600 | 600 | 1388 | 0.63 | 0.63 | 1.42 | 0.56 |
| NCB32-66-*# | 32U | 600 | 600 | 1610 | 0.63 | 0.63 | 1.64 | 0.65 |
| NCB32-68-*# | 32U | 600 | 800 | 1610 | 0.63 | 0.83 | 1.64 | 0.86 |
| NCB37-66-*# | 32U | 600 | 600 | 1833 | 0.63 | 0.63 | 1.86 | 0.74 |
| NCB37-68-*# | 37U | 600 | 800 | 1833 | 0.63 | 0.83 | 1.86 | 0.97 |
| NCB37-610-*# | 37U | 600 | 1000 | 1833 | 0.63 | 1.04 | 1.86 | 1.22 |
| NCB37-88-*# | 37U | 800 | 800 | 1833 | 0.83 | 0.83 | 1.86 | 1.28 |
| NCB37-810-*# | 37U | 800 | 1000 | 1833 | 0.83 | 1.04 | 1.86 | 1.61 |
| NCB42-66-*# | 42U | 600 | 600 | 2055 | 0.63 | 0.63 | 2.08 | 0.83 |
| NCB42-68-*# | 42U | 600 | 800 | 2055 | 0.63 | 0.83 | 2.08 | 1.09 |
| NCB42-610-*# | 42U | 600 | 1000 | 2055 | 0.63 | 1,04 | 2.08 | 1.36 |
| NCB42-611-*# | 42U | 600 | 1100 | 2055 | 0.63 | 1.14 | 2.08 | 1.49 |
| NCB42-612-*# | 42U | 600 | 1200 | 2055 | 0.63 | 1.24 | 2.08 | 1.62 |
| NCB42-86-*# | 42U | 800 | 600 | 2055 | 0.83 | 0.63 | 2.08 | 1.09 |
| NCB42-88-*# | 42U | 800 | 800 | 2055 | 0.83 | 0.83 | 2.08 | 1.43 |
| NCB42-810-*# | 42U | 800 | 1000 | 2055 | 0.83 | 1.04 | 2.08 | 1.8 |
| NCB47-66-*# | 47U | 600 | 600 | 2277 | 0.63 | 0.63 | 2.3 | 0.91 |
| NCB47-68-*# | 47U | 600 | 800 | 2277 | 0.63 | 0.83 | 2.3 | 1.2 |
| NCB47-610-*# | 47U | 600 | 1000 | 2277 | 0.63 | 1.04 | 2.3 | 1.51 |
| NCB47-88-*# | 47U | 800 | 800 | 2277 | 0.83 | 0.83 | 2.3 | 1.58 |
| NCB47-810-*# | 47U | 800 | 1000 | 2277 | 0.83 | 1.04 | 2.3 | 1.99 |
Part number configuration tool:
NCB18---66 ( 18U)
NCB 18-66 ( x) Use the x to specify the capability of the cabinets:
18= 18 U 22 = 22 U 27 = 27 U 32 = 32U 42=42U 46= 46U
