Help CenterProfessional Papermaking Vibrating Sifter Screen
Related Products
-
Open Design Pulp Vibrating Screen for Single DeckUS$ 500 - 4,500MOQ: 1 Set -
Stainless Steel Paper Pulp Vibration Screen MachineUS$ 2,500 - 7,800MOQ: 1 Set
-
Large Capacity Paper Pulp Linear Vibratory SieveUS$ 2,500 - 7,800MOQ: 1 Set
-
Large Capacity Paper Pulp Linear Vibrating SeparatorUS$ 2,500 - 7,800MOQ: 1 Set
-
Large Capacity Paper Pulp Vibration Screen Machine With Low NoiseUS$ 500 - 4,500MOQ: 1 Set
Specifications
1.Large screening capacity2.High efficiency in paper-making industry
3.ISO9001:2008,CE,BV
4.Stable structure
Special Instructions:

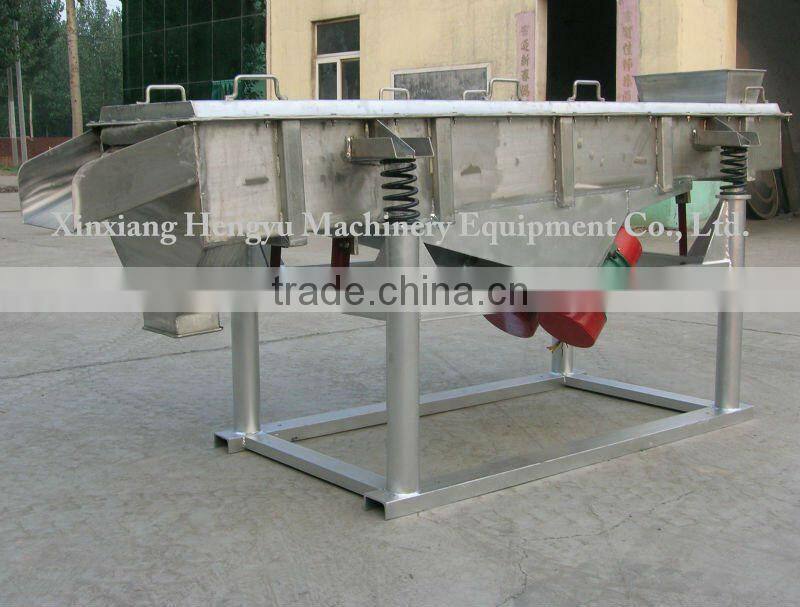

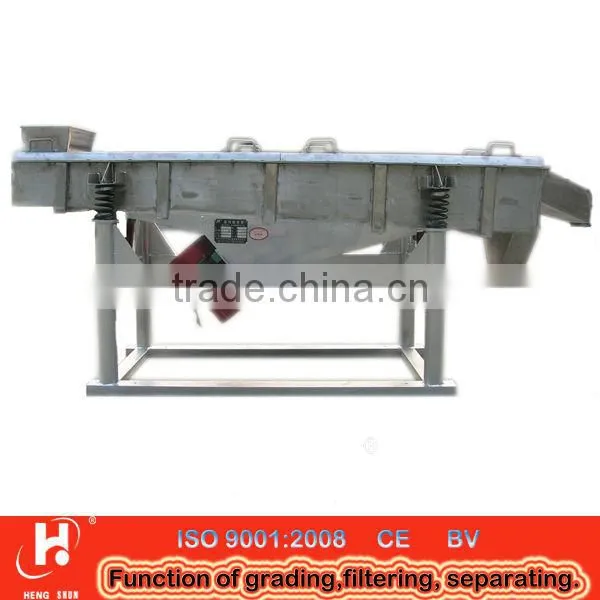

HY series Papermaking Vibrating sifter makes use of the vibrating motor as the vibration source, which throw up the materials on the screen, and at the same time, convey the materials forward in a straight line. The linear vibrating screen can be equipped can be provided as single deck and multi deck screens, the latter can be used to sieve kinds of the fine and coarse materials which will be discharged from the outlets respectively.
It has advantages as follows:
1. Lower energy consumption
2. Large output
3. Simple structure
4. Less maintenance
5. Fully closed structure
6. No dust flying
7. Discharge automatically
Main Features:
1. This machine is used for the coarse screening with large production capacity.
2. When be screened, the materials can also be conveyed forward straightly.
3. The obliquity of the screen can be adjusted according to your materials and production capacity.
Technical Parameters:
Model |
HY-520 |
HY-525 |
HY-1020 |
HY-1025 |
HY-1030 |
Appearance Dimension |
500×2000 |
500×2500 |
1000×2000 |
1000×2500 |
1000×3000 |
Material Granularity |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
Angle |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
Amplitude |
3-5 |
3-5 |
3-5 |
3-5 |
3-5 |
Layer |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
Power |
2× (0.37-0.75) |
2×(0.37-0.75) |
2× (0.55-1.1) |
2× (0.55-1.1) |
2× (0.55-1.1) |
The common voltage and frequency of this linear vibrating sifter is 380V, 50Hz, for other voltage or frequency, we could also customize products for you. In addition, we can manufacture vibrating screens with different layers from one layer to five layers.
Now our linear vibrating screen is well received in New Zealand, Canada, Egypt, Saudi Arabia, Spain, Italy, Korea, Japan, Vietnam, Brazil, etc. In addition, our Hengyu also provide circular vibrating screen with different model, ceramic slurry vibrating sifter, glaze vibrating screen and mixing machine. If you are in need of these products, please hesitate to contact us!

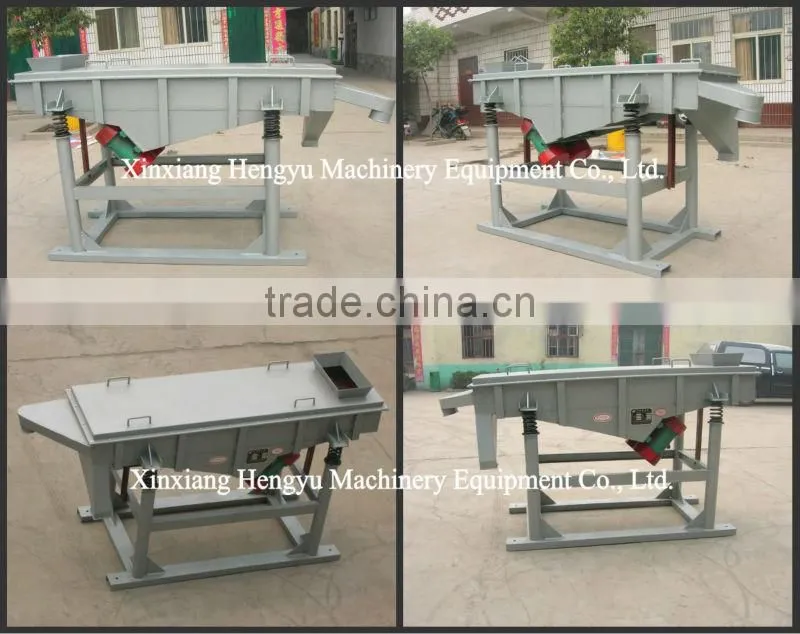

Four angel of papermaking Vibrating sifter as following pictures:
Tell us the name of your materials, you aim, capacity per hour, layers you asked and mesh size of each layer, right model will be recommended as soon as possible.
