Specifications
vibrating separator product1.High capacity with stainless steel sieve
2.Stainlesss steel material
3.Can be customized
SUS304 Vibrating Separator Product for Paper Pulp
About the product
Working principal
SUS304 vibrating separator product use vibration motor as vibration source, the materials is rosed
and moved in the straight at the same time. The materials are entered into entrance equality, and
then go through screen to create the materials with different sizes, which was discharged, from
different gates. It is suitable for low consuming, high output, and simple structure, easily maintain
all-closed structure, no powder dispersed, automobile discharged.
Features
1) Continuous production, single or multi-layer auto-classification filtering
2) Good sealing performance, no dust overflow.
3) Energy-saving and low noise with vibration motor.
4) Start fast and stop smoothly
5) Simple installation, easy operation and maintenance
6) High utilization rate of screen, large unit area, not easy to block, but easy replacement of screen.
7) High-precision screening reach to 96% or above, large processing capacity.
Technical parameters
Model |
HY-520 |
HY-525 |
HY-1020 |
HY-1025 |
HY-1030 |
Appearance Dimension |
500×2000 |
500×2500 |
1000×2000 |
1000×2500 |
1000×3000 |
Material Granularity |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
Angle |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
Amplitude |
3-5 |
3-5 |
3-5 |
3-5 |
3-5 |
Layer |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
Power |
2× (0.37-0.75) |
2×(0.37-0.75) |
2× (0.55-1.1) |
2× (0.55-1.1) |
2× (0.55-1.1) |
Note:
1. Each type can be 1-5 layers, and the mesh size is from 0.1 to 30mm.
2. Material: Q235A / SUS 304 / 316L
3. Voltage: 380V /400V, Frequency: 50 / 60 HZ.
4. If the specification or appearance has changed, we will not notify additionally.

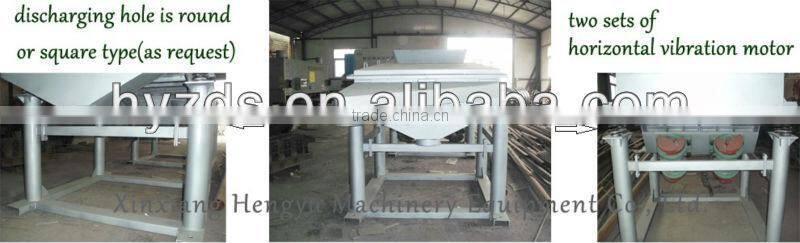

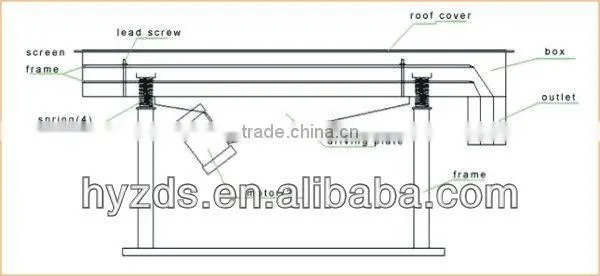

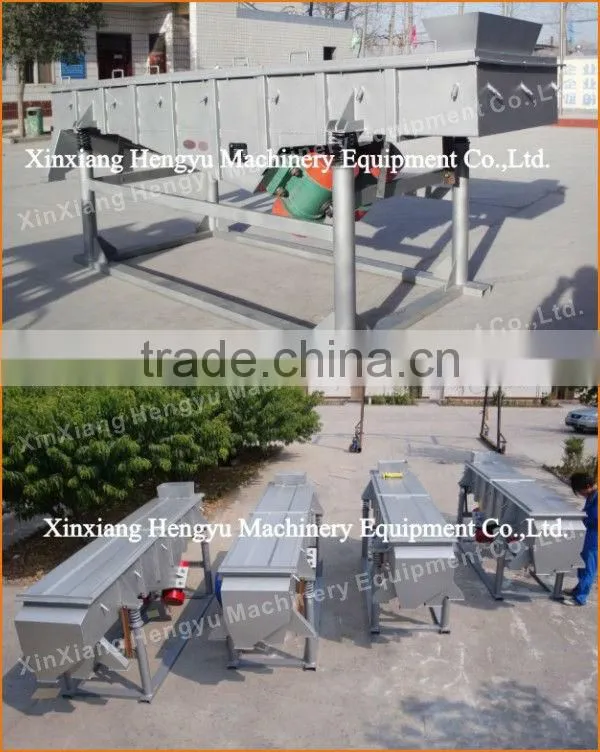

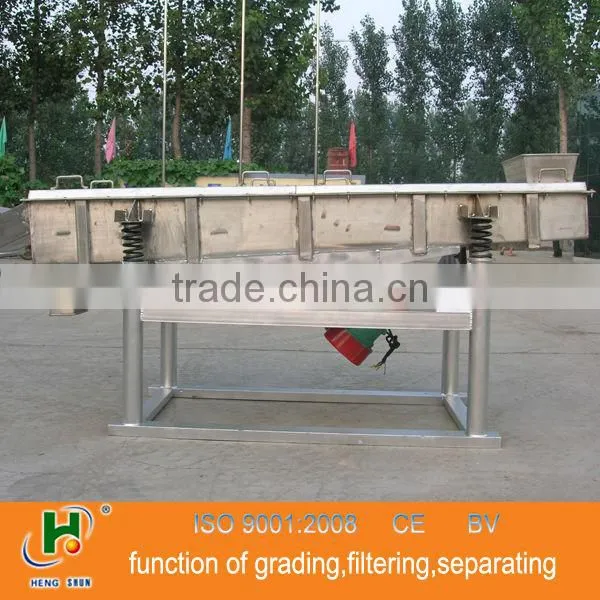

Show some pictures to undestand
Aout our company
Hengyu company have many skilled workers and professional technology team to provide customers
with prompt and thorough service. Our price are most competitive and reasonable, all order will be
supplied within the stipulated period. Waiting for your inquiry.
Quality assurance
Quality assurance is the process of verifying or determining whether products or services meet or exceed customer expectations. We use the following methods to ensure the quality of our products:
a.Experienced staff
b.Quality control department
c.Third-party supervision
Our products passed the ISO9001:2008 and CE certification, please check it as follows:
Contact information
According to clients' needs, we can design and manufacture vibrating separator product of special type and specification. Contact us now.
