Hengyu Brand Double Deck Rotating Slurry Sieve Machine

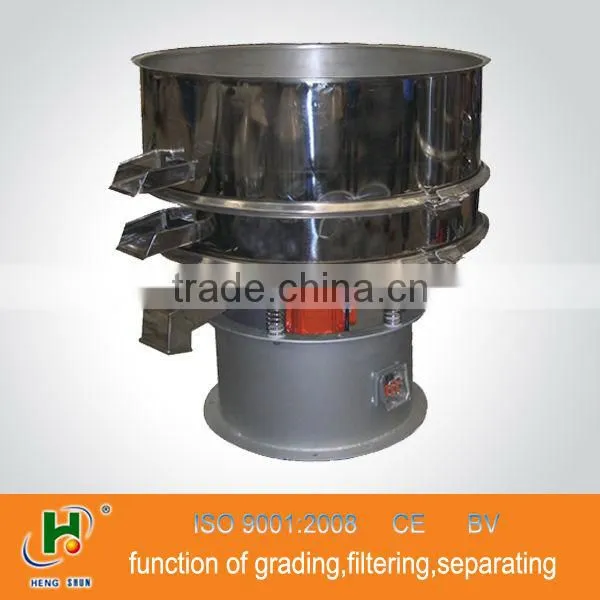

Hengyu Brand Double Deck Rotating Slurry Sieve Machine photo-1
US$ 1,000 - 7,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, rotating slurry sieve machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Lianyungang Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Other, rotating slurry sieve machine
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-800-1S
Voltage 220v, 380v or as your reuquirement
Power(W) 0.75 kw
Dimension(L*W*H) 1160*1160*810mm
Weight 150kg
Certification ISO9001:2008, CE, BV
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Rotating slurry sieve machine
2.Solid-separation function
3.Large screening capacity
4.Screening raw material: liquid



Hengyu brand double deck rotating slurry sieve machine



Introduction

Hengyu brand double deck rotating slurry sieve machine

Hengyu brand double deck rotating slurry sieve machine is my factory independent research and

development of the utility model patent product. It has been constantly updated through to reach its

present high level of reliability and performance.



Using purpose

Hengyu brand double deck rotating slurry sieve machine

Hengyu brand double deck rotating slurry sieve machine is widely used mud filtering in the line, it is

our company for the development of ceramics industry patent products, the effect of the field use is

very good. This device is used for slurry and dirty water in general.



Solid-liquid separation

This device can be single or double use, can very effective treatment of solid and liquid mixing

materials, solid-liquid separation can be realized rapidly, and filtered out raw materials of different

meshes.

Remove impurities

This device can remove impurity of liquid materials in different sizes of the small miscellaneous

material, separating fast.



Advantage of rotating slurry sieve machine

Hengyu brand double deck rotating slurry sieve machine

1. Large processing capacity. Bottom border as oscillating body, so vibrating parts is lighter than

general vibrating screen so that it has high screening efficiency.

2. Open design, observe the screen surface conveniently.

3. Using “new “type screen frame by our own develop; the screen use for long time, easy to change.

4. Motor with small power, light weight, high protection degree, can operate continuously.

5. Without the mechanical action. Even maintain easily, can be single or double use.



Technical parameters

Hengyu brand double deck rotating slurry sieve machine

Model

Power(KW)

Effective diameter

Largest vibration force

Layer

HY-800

-1S

0.37

0.55

800 mm

8000 N

-2S

HY-1000

-1S

0.40

0.55

1000 mm

10000 N

1

-2S

HY-1200

-1S

0.45

0.75

1130 mm

15000 N

-2S

2

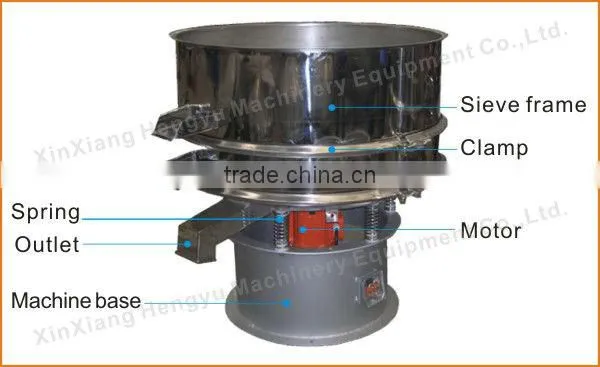

Let's know more about rotary filter machine by pictures

Hengyu brand double deck rotating slurry sieve machine

Hengyu brand double deck rotating slurry sieve machine

Hengyu brand double deck rotating slurry sieve machine



----------------------------------------------------------------------------------------------------



Hengyu company culture and service

Hengyu brand double deck rotating slurry sieve machine

Hengyu brand double deck rotating slurry sieve machine



Hengyu brand double deck rotating slurry sieve machine



Hengyu brand double deck rotating slurry sieve machine



Choose suitabel model of rotating slurry sieve machine

Hengyu brand double deck rotating slurry sieve machine

Before selecting the right model of rotating slurry sieve machine, please inform us the following information:
1. Material to be processed?
2. Granule size of the materials (Mesh size)?
3. Moisture content, density?
4. Production capacity (tons or kg per hour)?
5. Local power supply (voltage and frequency)?



We can offer the rotating slurry sieve machine and service for you; let us know your detailed requirements firstly by phone or email, please.



Hengyu brand double deck rotating slurry sieve machine
