213 China High Output Standard Rotating Drum Sieve

213 China High Output Standard Rotating Drum Sieve photo-1
US$ 1,000 - 7,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, drum screen
Application:
Other, 213 China high output standard rotating drum sieve
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, drum screen
Application Other, 213 China high output standard rotating drum sieve
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-800-2000
Voltage 220/380/415V, 50/60HZ
Power(W) 1.5KW
Dimension(L*W*H) 800*2000
Weight 260KGS
Certification ISO 9001:2008,CE,BV
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

                213 China high output standard rotating drum sieve



----------------------------------------------------------------product information----------------------------------------------------



Drum sieve features

213 China high output standard rotating drum sieve

1. Smooth operation and high screening efficiency

2. Suitable to separate various materials included poor quality of coal, coal slime, or soot.

3. It is consists of screening drum, rotary shaft, sieve deck, motor, reducer etc components.

4. Open type or enclosed type, if need, a duct collector can be equipped with it.

5. The drum is made of thick stainless steel for long service life.



How our rotating drum sieve working?

213 China high output standard rotating drum sieve

Our standard rotating drum sieve machine is consist of five parts as drum, frame, hopper, reducer and motor. After the material into the drum, on one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes. The different materials fall into different hoppers and then are sent to different finished product stacks by manpower or belt conveyor.



The applications of our drum sieve,

213 China high output standard rotating drum sieve

1. Standard drum sieve are often used in the production of organic products from various types of waste.
For example, excavation contractors may screen their site debris into two fractions; a saleable topsoil for farms, nurseries and site-work, as well as cleaned rock for aggregates or landscaping work. This allows the contractor to resell their waste, instead of incurring the cost of sending it for disposal.
2. Standard drum sieve applies to the production of compost, sand/gravel, lumber mill by-products and municipal waste.
3. Standard drum sieve are also used in the recovery of Gold from mineral rich soils. The dirt is broken up by high pressure water jets before entering the trommel which breaks up the dirt and outputs the rocks and stones while depositing the gold fragments in special plastic mats.

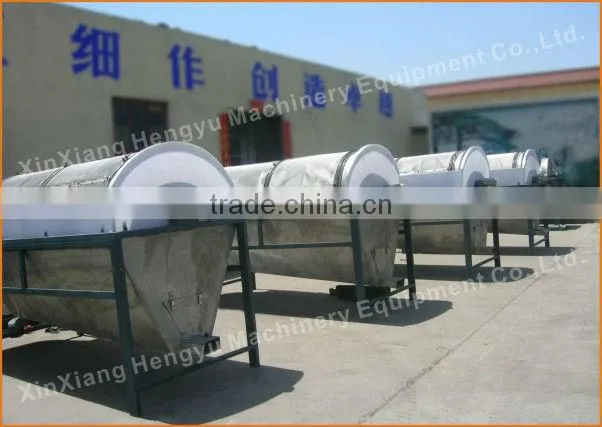

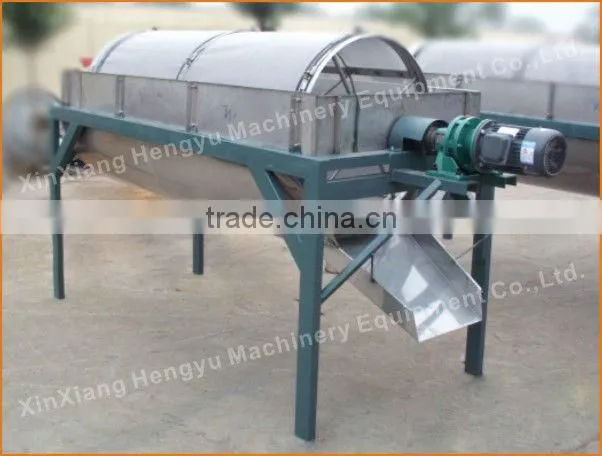

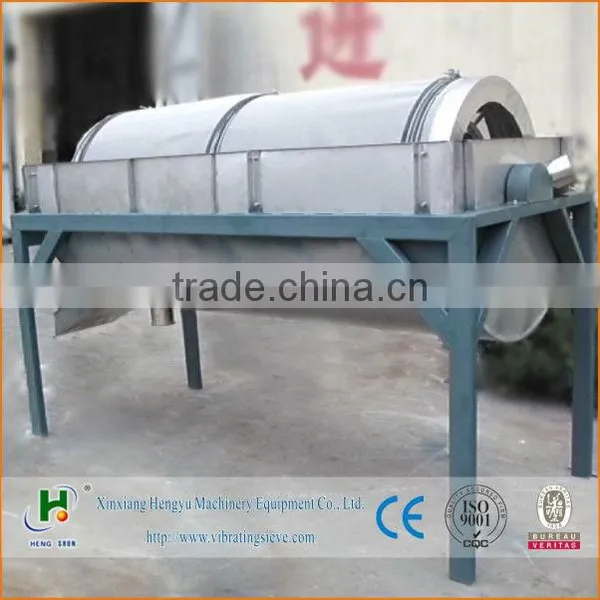

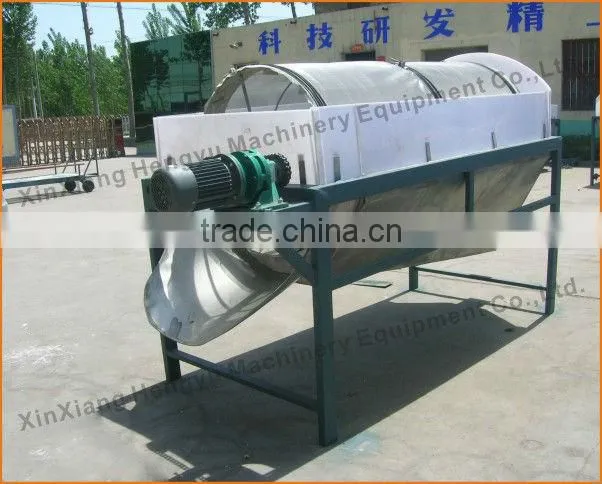

Rotating drum sieve photos show,

213 China high output standard rotating drum sieve

213 China high output standard rotating drum sieve

213 China high output standard rotating drum sieve
