HY Circular Vibrating Sifter for Pharmaceuticals Industry

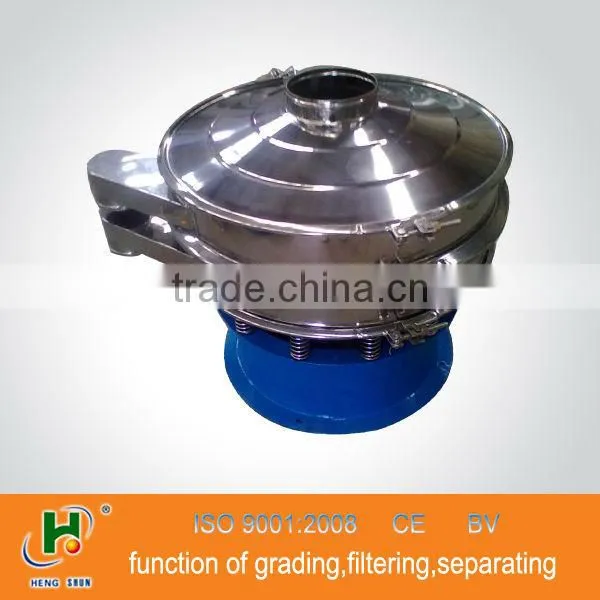

HY Circular Vibrating Sifter for Pharmaceuticals Industry photo-1
US$ 1,000 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, screening machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Other, screening machine
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HYBZ-800-1S
Voltage 220v, 380v or as your requirement
Power(W) 0.55kw
Dimension(L*W*H) 900*900*890mm
Weight 180kg
Certification ISO9001:2008, CE, BV
Warranty 12 month

Specifications

Used in any powder, grains, liquid
2.Big capacity, bouncing ball to clear mesh automaticly
3.Passed ISO, CE, BV
4.Long life



HY circular vibrating sifter for Pharmaceuticals industry





Introduction

HY circular vibrating sifter for Pharmaceuticals industry

Hengyu is an innovative manufacturer of circular vibrating sifter for the chemical, food, pharmaceutical

processing industries. Hengyu offers a wide range of auxiliary units and systems for meeting special

screening requirements.

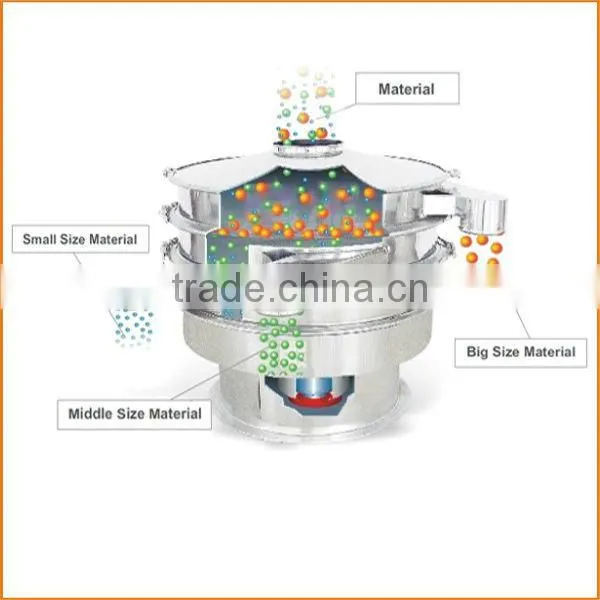

Screening demo



HY circular vibrating sifter for Pharmaceuticals industry

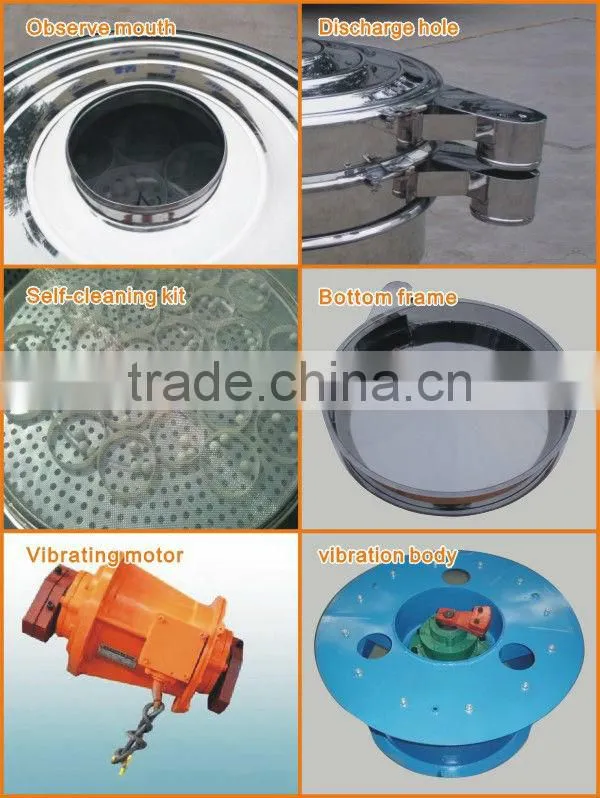

Circular vibrating sifter parts as follows



HY circular vibrating sifter for Pharmaceuticals industry



Technical parameters

HY circular vibrating sifter for Pharmaceuticals industry

Model

Diameter

(mm)

Screen surface

Screen opening



Power

(KW)

Deck

Diameter

Area

(mm)

(m2)

HY-400

400

360

0.1017

5-500 mesh

0.18

1-4

HY-600

600

560

0.2461

0.25-0.55

1-4

HY-800

800

760

0.4534

0.55-0.75

1-4

HY-1000

1000

930

0.6789

0.75-1.5

1-4

HY-1200

1200

1130

1.0023

1.10-1.75

1-4

HY-1500

1500

1430

1.6052

1.50-2.20

1-4

HY-1800

1800

1730

2.3494

2.20-3.0

1-4

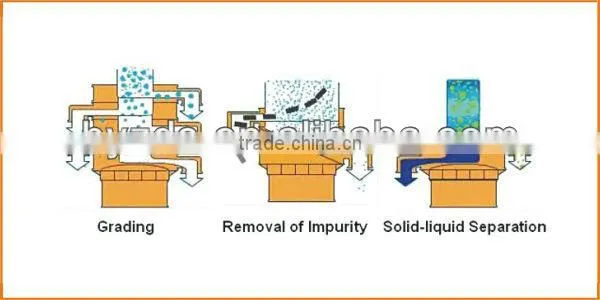

Function of circular vibrating sifter



HY circular vibrating sifter for Pharmaceuticals industry



Feature of circular vibrating sifter

HY circular vibrating sifter for Pharmaceuticals industry

1. Discharge the impurity and coarse materials automobile and operates continuously.

2. Unique screen flame design, long duration of screen, only 3 to 5min to replace the screen.

3. Impurities, coarse automatic discharge, it can be a continuous operation.

4. Different particles are graded automatically, so the auto-operation can be realized.

5. The outlet’s location can be adjusted to anywhere you need. It is very easy to form producing line.

6. Sieving machines can reach 5 layers, it is recommended to use 3 layers.



Application industry

HY circular vibrating sifter for Pharmaceuticals industry

1. Size classification: separation of particles into groups of comparable size from the materials.
2. Gravity filtering: removal of solids from liquids and slurries.
3. Product reclamation: removal of the solids from waste product or clarification of waste liquor for further use.
4. Screening: separation of a few oversize particles from a quantity of materials.
5. Liquid cleaning: cleaning of wastewater or removing the solids from recalculating liquid.

HY circular vibrating sifter for Pharmaceuticals industry

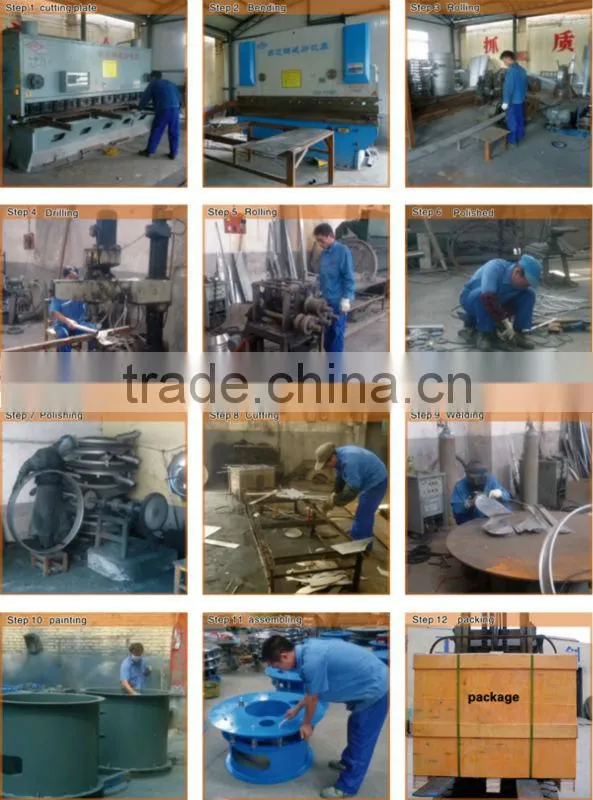

Production flow



HY circular vibrating sifter for Pharmaceuticals industry



Notice

HY circular vibrating sifter for Pharmaceuticals industry

In order to choose the suitable mode for you, please provide us the following information:
1. The name and feature of the raw material?
2. Aim of using: get rid of impurity, filtration or grading?
3. Handling capacity: kg /h, L/h?
4. Wire screen mesh size: (mesh or mm)?



if you are interested in our products, pls email or call us.

Should you be interested in our circular vibrating sifter, please do not hesitate to contact us and tell us your detailed requirements including name of your raw material, mesh, capacity and other special demands……

  HY circular vibrating sifter for Pharmaceuticals industry
