China CE Certification Vibrating Screens for Medicine

China CE Certification Vibrating Screens for Medicine photo-1
US$ 500 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HENG SHUN
Model Number:
HY-1000-1S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1000-1S
Application Other, particle, powder and liquid
Type Other, classification and screening machine
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.High efficiency in food industry
2.Self-cleaning function
3.Material with stainless steel
4.ISO,CE approved

            China CE certification Vibrating Screens for Medicine





China CE certification vibrating screens for medicine





Seven popular sizes (400/600/800/1000/1200/1500/1800) to fit any requirement, space-saving through high volume.



Three Functions



China CE certification vibrating screens for medicine



1. Grading

This type of vibrating screen can screen and separate precisely and continuously, the Multi—layer type can screen and separate five groups of different particles at a time. It is suitable for particle or other dry materials.

2. Removal of impurity

The vibrating screen can quickly separate a few oversize or undersize particles from a  quantity of your screening materials.

 3. Liquid-solid separation

The machines are used to remove solids from mixture of solid and liquid.

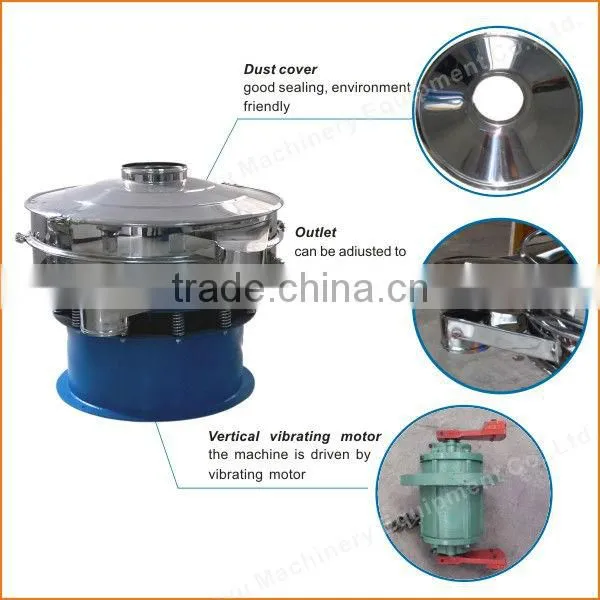

Features:

China CE certification vibrating screens for medicine
1.The machine outlet can be adjusted to any direction. Sieved material can be discharged straight away, suitable for automated operation.
2. Having no blockage in the screen, high efficiency, and it is applicable for 5-500 mesh.
3. It is easy to change the screens, which just only need 3-5 minutes, because of the unique screen.
4. It is easy to operate and maintain, light weight,  low noise and less energy consumption

5. The product was completely made of the stainless steel 304, which is up to the requirements of the national food-grade. it also can be used for single deck or multi decks.



Technical parameters



Model



Diameter

Screen surface



Screen opening

Power



Deck

Diameter

Area

(mm)

(mm)

(m2)

(kw)

 HY-400

400

360

0.1017









5-500mesh

0.18

1-4

 HY-600

600

560

0.2461

0.25-0.55

1-4

 HY-800

800

760

0.4534

0.55-0.75

1-4

 HY-1000

1000

930

0.6789

0.75-1.5

1-4

 HY-1200

1200

1130

1.0023

1.10-1.75

1-4

 HY-1500

1500

1430

1.6052

1.50-2.20

1-4

 HY-1800

1800

1730

2.3494

2.20-3.0

1-4

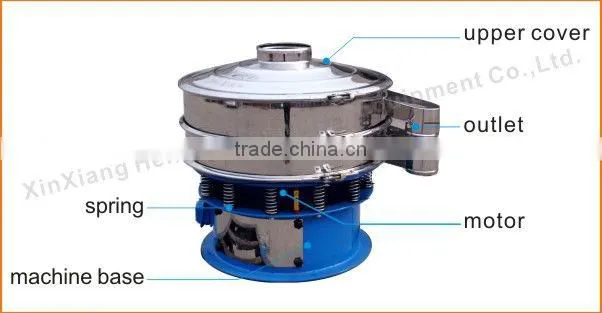

View some pictures to understand the more details of the model

China CE certification vibrating screens for medicine

China CE certification vibrating screens for medicine

China CE certification vibrating screens for medicine



Application

China CE certification vibrating screens for medicine

It is applicable to any powder, granule, liquid screening and filtering of the industry.

1.Food and beverage

                                 China CE certification vibrating screens for medicine

















































2. For some Particles,like bean, cocoa bean, peanut and so on

                        China CE certification vibrating screens for medicine







































3.Bread/wheat flour, seasoning, Coffee powder and powders

                                China CE certification vibrating screens for medicine



















































Choose us, you can get......

 1. Improve you product quality

 2. Increase your product productivity

 3. Operator friendly

 4. Reduce your costs
