Help CenterHerb Spices Rotary Sifter Screen Machine
Related Products
-
Round Vibro Shaker Machine for Medicine GranularUS$ 1,000 - 6,500MOQ: 1 Set -
Round Medicine Particle Vibro Shaker MachineUS$ 1,500 - 6,500MOQ: 1 Set
-
Diameter 200mm Lab Vibrating Sifter for Pharmaceuticals IndustryUS$ 100 - 500MOQ: 1 Set
-
GMP Standard Vibrating Screen for Medicine PowderUS$ 1,000 - 6,500MOQ: 1 Set
-
Double Deck Medicine Powder Vibration SieveUS$ 1,000 - 6,500MOQ: 1 Set
About our company
Xinxiang Hengyu Machinery Equipment Co., Ltd is honored ISO9001:2000, ISO9001:2008, BV and CE certificates. And our products have been sold to every city in China and exported to almost
20 countries, such as Sweden, Canada, Columbia, Australia, British, South Africa, Thailand and
so on.
Rotary Sifter Screen Machine's Over View
Advantages
a. Never jam the hole meshwork, no powder flying;
b. Any powders and particles are suitable for screening;
c. Easily to replace the screen, only 3-5 mins to replace the screen;
d. Discharge the impurity and coarse materials automobile and operates continuously;
e. Simple operation and convenience washing, long duration of screen.
Technical Parameter
To best fit into your production line and to make sure we can handle whatever through put you require, the Hengyu rotary screener is available in seven sizes:
|
Model |
Diameter |
Screen surface |
Screen opening |
Power |
Deck |
|
Diameter |
Area |
|||||
(mm) |
(mm) |
(m2) |
(kw) |
|||
HY-400 |
400 |
360 |
0.1017 |
5-500mesh |
0.18 |
1-4 |
HY-600 |
600 |
560 |
0.2461 |
0.25-0.55 |
1-4 |
|
HY-800 |
800 |
760 |
0.4534 |
0.55-0.75 |
1-4 |
|
HY-1000 |
1000 |
930 |
0.6789 |
0.75-1.5 |
1-4 |
|
HY-1200 |
1200 |
1130 |
1.0023 |
1.10-1.75 |
1-4 |
|
HY-1500 |
1500 |
1430 |
1.6052 |
1.50-2.20 |
1-4 |
|
HY-1800 |
1800 |
1730 |
2.3494 |
2.20-3.0 |
1-4 |
|

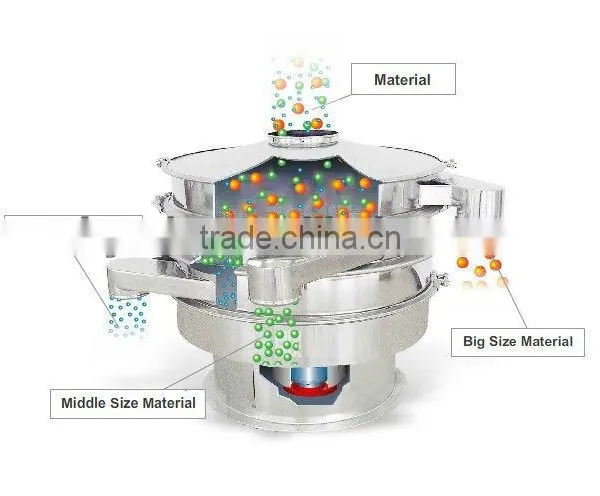

Working principle

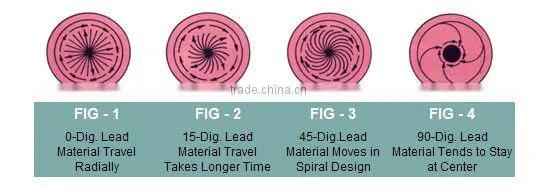

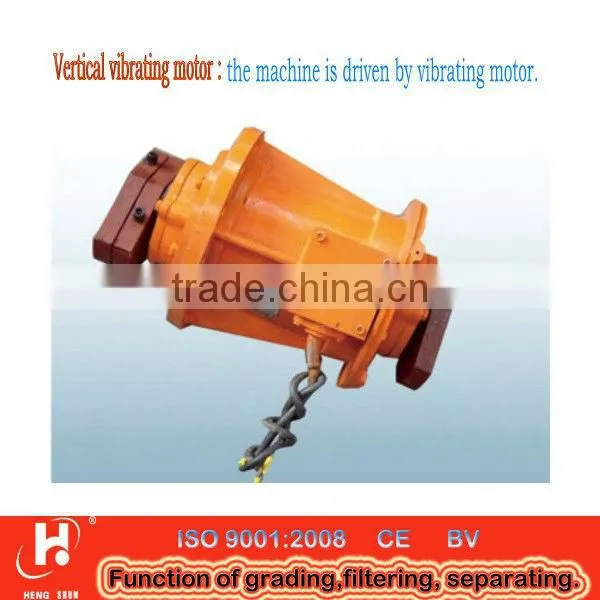

Vertical motor which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.

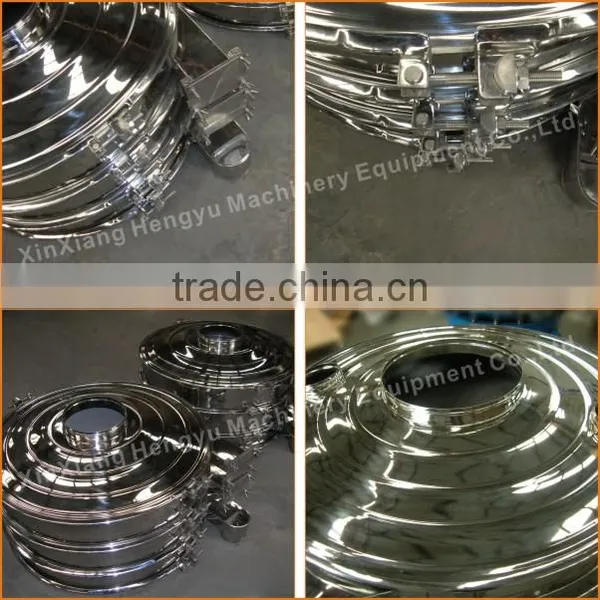

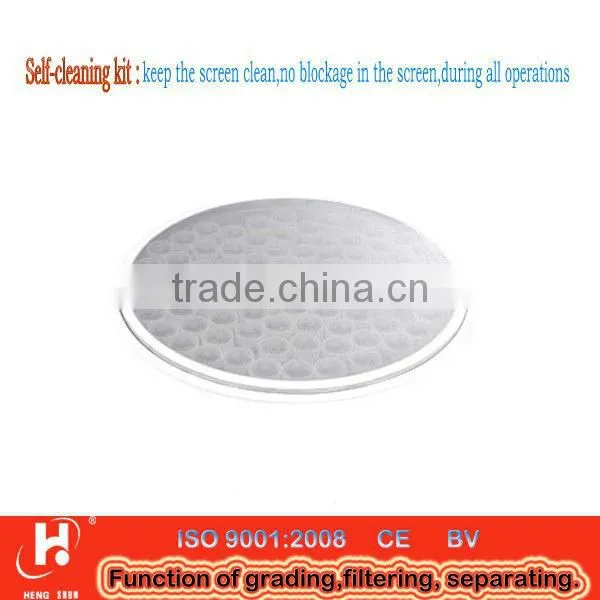

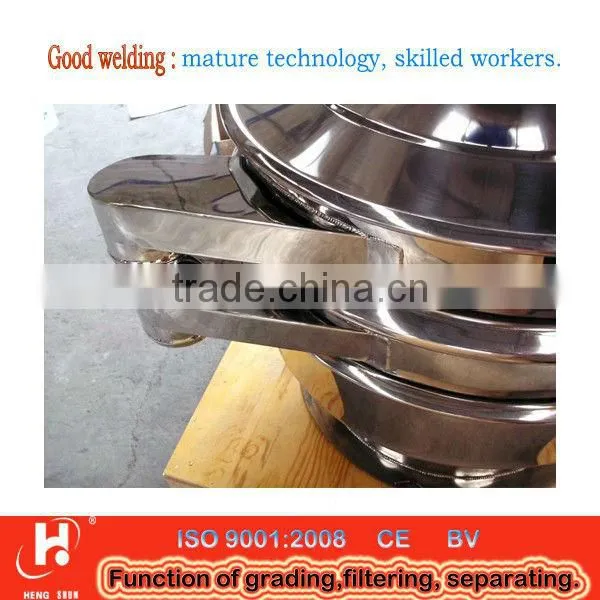

Product components show
Application Range
1,Chemical industry, colophony, coating, industry leechdom, cosm etic and paint.
2, Grinding materials and china industry: alumina, slurry, kaolin, carborundum and sprayer
dust.
3, Food industry: sugar, amylum, rice powder, milk, angel cake, sauce and juiec.
4, Paper-making industry: dope, white soil slurry, black and white liquid, disposed liquid, paper making liquid and waste water recycling.
5, Metallurgy and mining industry: aluminum powder, ceruse, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese. electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime and heavy calcium carbonate.
Any interested in our machine, feel free to contact, we are looking forward to solving screening problems together with you.
