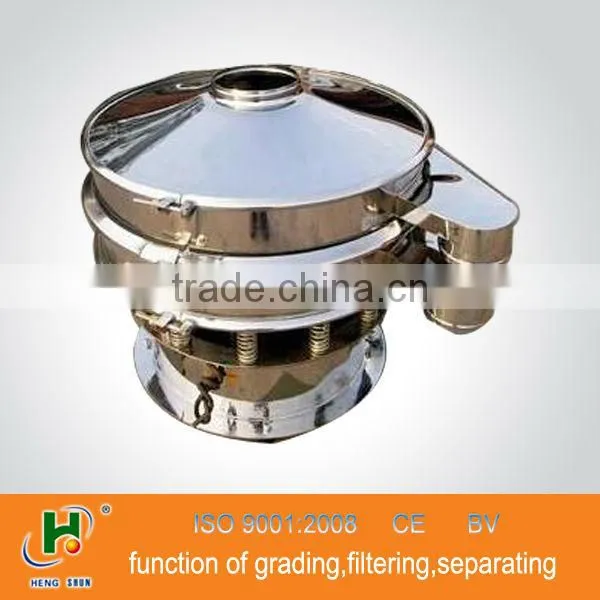

SS316 Round Herb Powder Vibrating Separator

SS316 Round Herb Powder Vibrating Separator photo-1
US$ 500 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HENG SHUN
Model Number:
HY-600-1S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port any port in china
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-600-1S
Application Granules
Type Other, grading, removal of impurity, round
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Good sealing performance
2.For dry or wet screening
3.High degree of separation
4.Easy to install and maintain
5.CE & ISO



  SS316 round herb powder vibrating separator

 SS316 round herb powder vibrating separator



Seven popular sizes (400/600/800/1000/1200/1500/1800) to fit any requirement, space-saving through high volume.



Three Functions

 SS316 round herb powder vibrating separator



1. Grading

This type of vibrating separator can screen and separate precisely and continuously, the Multi—layer type can screen and separate five groups of different particles at a time. It is suitable for particle

 or other dry materials.

2. Removal of impurity

The rotary vibrating separator can quickly separate a few oversize or undersize particles from a  quantity

of your materials.

 3. Liquid-solid separation

The machines are used to remove solids from mixture of solid and liquid.



Features:
1.The machine outlet can be adjusted to any direction. Sieved material can be discharged straight away, suitable for automated operation.
2. Having no blockage in the screen, high efficiency, and it is applicable for 5-500 mesh.
3. It is easy to change the screens, which just only need 3-5 minutes, because of the unique screen.
4. It is easy to operate and maintain, light weight,  low noise and less energy consumption

5. The product was completely made of the stainless steel 304, which is up to the requirements of the national food-grade. it also can be used for single deck or multi decks.



Technical parameters

Model

Diameter

(mm)

Screen surface

Screen opening



Power

(KW)

Deck

Diameter

Area

(mm)

(m2)

HY-400

400

360

0.1017

5-500 mesh

0.18

1-4

HY-600

600

560

0.2461

0.25-0.55

1-4

HY-800

800

760

0.4534

0.55-0.75

1-4

HY-1000

1000

930

0.6789

0.75-1.5

1-4

HY-1200

1200

1130

1.0023

1.10-1.75

1-4

HY-1500

1500

1430

1.6052

1.50-2.20

1-4

HY-1800

1800

1730

2.3494

2.20-3.0

1-4


It is applicable to any powder, granule, liquid screening and filtering of the industry.

1.Food and beverage



                                 SS316 round herb powder vibrating separator



2. For some Particles,like bean, cocoa bean, peanut and so on

                         SS316 round herb powder vibrating separator



3.Bread/wheat flour, seasoning, Coffee powder and powders

                                SS316 round herb powder vibrating separator





Choose us, you can get......



                                      1.Improve you product quality



                                      2.Increase your product productivity



                                      3.Operator friendly



                                      4.Reduce your costs
