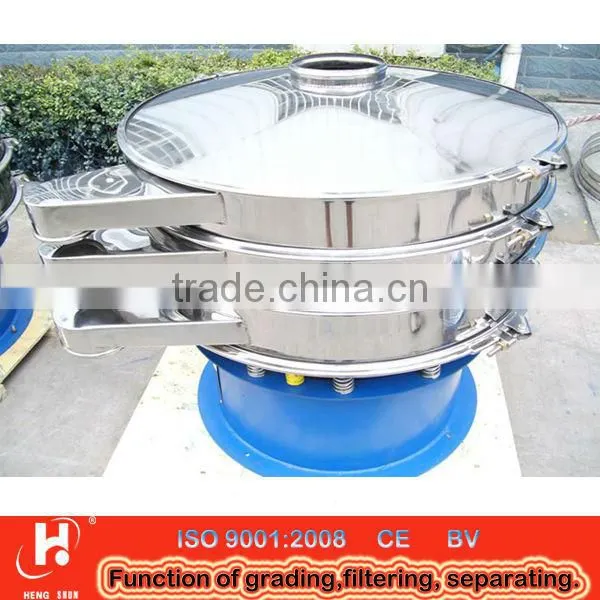

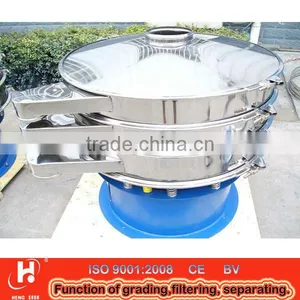

Help CenterPharmaceutical Sieving Machine With Good Sealing Performance
Related Products
-
Double Layer Circular Sieve Screener for PowderUS$ 1,000 - 6,500MOQ: 1 Set -
Double Layer Rotary Sieve for PharmaceuticalUS$ 1,000 - 6,500MOQ: 1 Set
-
24 Hours of Continuous Production-- Flour SieveUS$ 1,000 - 4,300MOQ: 1 Set
-
Xinxiang Hengyu Vibro Sifter MachineUS$ 1,000 - 9,500MOQ: 1 Set
-
Xinxiang Hengyu Flour Screening MachineUS$ 1,000 - 4,300MOQ: 1 Set
Specifications
1.High efficiency in food industry2.Self-cleaning function
3.Material with stainless steel
4.ISO,CE approved
Welcome to our site!
It's a good helper in Medicine industry!
Seven popular sizes (400/600/800/1000/1200/1500/1800) to fit any requirement, space-saving through high volume.
Three Functions
1. Grading
This type of vibration sieve machine can screen and separate precisely and continuously, the Multi—layer type can screen and separate five groups of different particles at a time. It is suitable for particle
or other dry materials.
2. Removal of impurity
The vibration sieve can quickly separate a few oversize or undersize particles from a quantity of your
materials.
3. Liquid-solid separation
The machines are used to remove solids from mixture of solid and liquid.
Features:
1.The machine outlet can be adjusted to any direction. Sieved material can be discharged straight away, suitable for automated operation.
2. Having no blockage in the screen, high efficiency, and it is applicable for 5-500 mesh.
3. It is easy to change the screens, which just only need 3-5 minutes, because of the unique screen.
4. It is easy to operate and maintain, light weight, low noise and less energy consumption
5. The product was completely made of the stainless steel 304, which is up to the requirements of the national food-grade. it also can be used for single deck or multi decks.
Technical parameters
|
Model |
Diameter |
Screen surface |
Screen opening |
Power |
Deck |
|
Diameter |
Area |
|||||
(mm) |
(mm) |
(m2) |
(kw) |
|||
HY-400 |
400 |
360 |
0.1017 |
5-500mesh |
0.18 |
1-4 |
HY-600 |
600 |
560 |
0.2461 |
0.25-0.55 |
1-4 |
|
HY-800 |
800 |
760 |
0.4534 |
0.55-0.75 |
1-4 |
|
HY-1000 |
1000 |
930 |
0.6789 |
0.75-1.5 |
1-4 |
|
HY-1200 |
1200 |
1130 |
1.0023 |
1.10-1.75 |
1-4 |
|
HY-1500 |
1500 |
1430 |
1.6052 |
1.50-2.20 |
1-4 |
|
HY-1800 |
1800 |
1730 |
2.3494 |
2.20-3.0 |
1-4 |
|
It is applicable to any powder, granule, liquid screening and filtering of the industry.
1.Food and beverage
2. For some Particles,like bean, cocoa bean, peanut and so on
3.Bread/wheat flour, seasoning, Coffee powder and powders
Choose us, you can get......
1.Improve you product quality
2.Increase your product productivity
3.Operator friendly
4.Reduce your costs
