HY Medicine Powder Mechanical Vibrators Sieve

HY Medicine Powder Mechanical Vibrators Sieve photo-1
US$ 1,000 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HENG SHUN
Model Number:
HY-1000-2S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1000-2S
Application Powder
Type Other, sieving machine, mechanical vibrators sieve
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Mechanical vibrators sieve
2.High screening precision
3.Stable working performance
4.Self-cleaning kit, no blockage

Welcome to check this page for get our mechanical vibrators sieve information



Introduction

HY medicine powder mechanical vibrators sieve

China medicine powder mechanical vibrators sieve, all material contact parts are made of stainless steel 304, special screen design brings convenient washing, in particular, the mesh is never be jammed and perfectly sustains for long-hours operation.Screen mesh under 500 mesh are available, only takes 3-5 minutes for replacement, up to 5 layers of deck can be equipped.



Mechanical vibrators sieve picture

HY medicine powder mechanical vibrators sieve

HY medicine powder mechanical vibrators sieve



Technical parameters

HY medicine powder mechanical vibrators sieve

Model

Power

(KW)

Effective diameter

(mm)

Layer supplied

HY-400

0.18

360

1-3

HY-600

0.25-0.55

560

1-3

HY-800

0.55-0.75

760

1-3

HY-1000

0.75-1.5

930

1-3

HY-1200

1.10-1.75

1130

1-3

HY-1500

1.50-2.20

1430

1-3

HY-1800

2.20-3.0

1730

1-3



Function

HY medicine powder mechanical vibrators sieve

HY medicine powder mechanical vibrators sieve



1.Grading
Each of medicine powder mechnical vibrator sieve can screen and separate precisely and continuously, the Multi—layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Filtration
The mixture of solid and liquid can be separated effectively by single or multi—layer type into different grade materials.
3. Remove the impurities
Our medicine powder mechnical vibraor sieve can quickly separate a few oversize or undersize particles from a quantity of materials.



Features

HY medicine powder mechanical vibrators sieve

1. Easily to replace the screen, simple operation and convenient washing.

2. Never jam the screen, no powder flying, screen size of the powder between 500 mesh and 0.028 mm.

3. Discharge the impurity and coarse materials automobile and operates continuously.

4. The highest layers of the screen are about 4 layers. But 3 lagers are suggested.

5. Novel structure, advanced technical parameters and large processing capacity, high screening efficiency.

6. The outlet’s location can be adjusted to anywhere you need. It is very easy to form producing line.

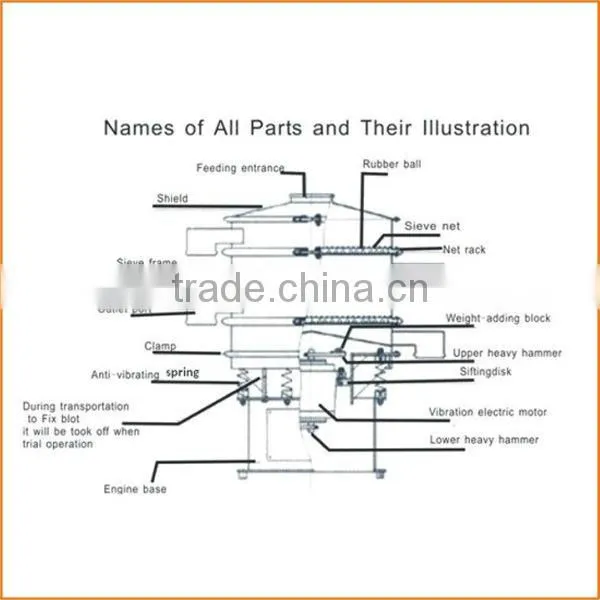

Structure

HY medicine powder mechanical vibrators sieve

HY medicine powder mechanical vibrators sieve



Production flow

HY medicine powder mechanical vibrators sieve

HY medicine powder mechanical vibrators sieve



As professional mechanical vibrators sieve manufacturer, competitive price are provided with you, just don't hesitate to contact us. HY medicine powder mechanical vibrators sieve
