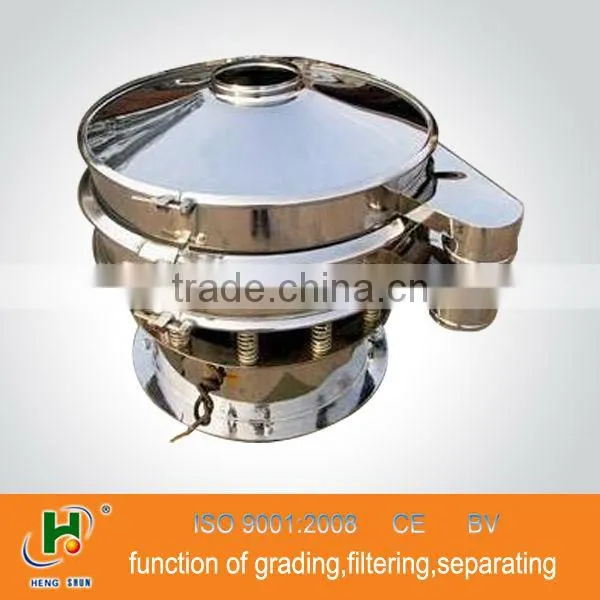

SUS304 Medicinal Powder Vibration Screen Equipment

SUS304 Medicinal Powder Vibration Screen Equipment photo-1
US$ 500 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HENG SHUN
Model Number:
HYBZ-800-1S
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HYBZ-800-1S
Application Granules
Type Other, grading, removal of impurity and solid -liquid separation, rotary
After-sales Service Provided Engineers available to service machinery overseas

Specifications

vibration screen equipment
1.Good sealing performance
2.Stainless steel 304/316 material
3.Saving energy and easy to operate

 SUS304 Medicinal Powder Vibration Screen Equipment



Variety Functions

SUS304 medicinal powder vibration screen equipment

1. Grading

-Separation of solid particles into precise sized fractions

-used in foods, chemicals, minerals and metals, pulp and wood products, pharmaceuticals,

 fertilizers, abrasives.

2. Removal of impurity

-The  vibration screen equipment can quickly separate a few oversize or undersize particles from a

quantity of your materials.

-Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains

3. Liquid-solid separation

-Dewatering of solids and clarification of liquids

-Foods, chemicals, pulpd.

4. Solids classification in liquid medium

-Separation of solids into sized fraction in a liquid medium

-Chemicals, minerals, pulp and paper, ceramics, waste disposal

More Features

SUS304 medicinal powder vibration screen equipment

1.The machine outlet can be adjusted to any direction. Sieved material can be discharged

straight away, suitable for automated operation.

2. Having no blockage in the screen, high efficiency, and it is applicable for 5-500 mesh.

3. It is easy to change the screens, which just only need 3-5 minutes, because of the unique screen.

4. It is easy to operate and maintain, light weight, low noise and less energy consumption

5. The product was completely made of the stainless steel 304, which is up to the requirements of

the national food-grade. it also can be used for single deck or multi decks.

See the structure to know more parts of the model

SUS304 medicinal powder vibration screen equipment



Seven standard sizes

SUS304 medicinal powder vibration screen equipment

Model



Diameter

Screen surface



Screen opening



   Power



  Deck

Diameter

Area

(mm)

(mm)

 (m2)



(kw)

 HY-400

400

360

0.1017









5-500mesh

0.18

1-4

  HY-600

600

560

0.2461

0.25-0.55

1-4

 HY-800

800

760

0.4534

0.55-0.75

1-4

 HY-1000

1000

930

0.6789

0.75-1.5

1-4

 HY-1200

1200

1130

1.0023

1.10-1.75

1-4

 HY-1500

1500

1430

1.6052

1.50-2.20

1-4

 HY-1800

1800

1730

2.3494

2.20-3.0

1-4



See some part's pictures to get more information

SUS304 medicinal powder vibration screen equipment

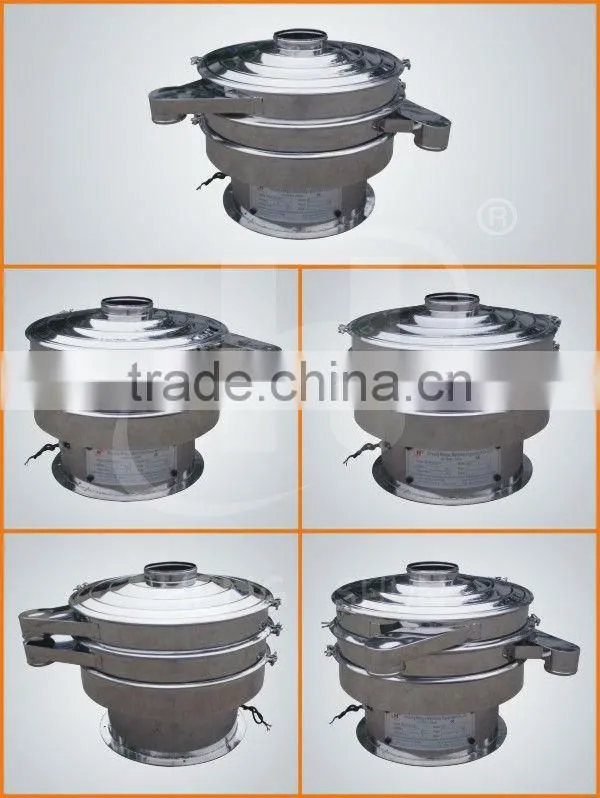

Different angle of the model

SUS304 medicinal powder vibration screen equipment



About our company

SUS304 medicinal powder vibration screen equipment

1.Product Series
We offer circular vibrating screen, linear vibrating screen, ultrasonic vibrating sieve, professional slurry and glaze vibrating sieve, test sieve, screw conveyor, belt conveyor, bucket elevator, grinding machine and vibrating feeder etc... Most of our items carry ISO9001:2008, CE marks for easier market entry.



2.Exporting worldwide
We export to satisfied buyers in United States, Britain, Japan, Sweden, Switzerland, Poland, Denmark, Malta, Indonesia, Malaysia, Vietnam, Thailand, Colombia, Ukraine, Australia, Canada, Chile, Peru, Uruguay, the Netherlands, Lithuania, Lebanon, more than 20 countries and regions.



3.Ready for your order
By using the given specifications, we can complete initial design or matching products recommended in only 24 hours. For your volume demands, we can produce up to 100 units each month. Call or email us today for additional information.

SUS304 medicinal powder vibration screen equipment



For choose the suitable model?

SUS304 medicinal powder vibration screen equipment

By telling us the following information to learn which models of machine are suitable for you?
1. Material’s name, the density, water content (%)?
2. The necessary capacity you required (per hour)?
3. The wire screen mesh sizes you need?
4. Machine material. Pls choose from the following 3 options:
A. Carbon steel
B. The contacting part is SUS304, the other parts is carbon steel.
C. Full SUS304 or SUS316.

Contact information

SUS304 medicinal powder vibration screen equipment



Quality assured to meet CE certificate and ISO9001:2008 requirements.

More informations feel free to contact us today!
