Xinxiang Hengyu Peanut Grade Machine

Xinxiang Hengyu Peanut Grade Machine thumbnail-1
Xinxiang Hengyu Peanut Grade Machine thumbnail-2
Xinxiang Hengyu Peanut Grade Machine thumbnail-3
Xinxiang Hengyu Peanut Grade Machine thumbnail-4
Xinxiang Hengyu Peanut Grade Machine thumbnail-5
Xinxiang Hengyu Peanut Grade Machine thumbnail-6
Xinxiang Hengyu Peanut Grade Machine photo-1
Xinxiang Hengyu Peanut Grade Machine photo-2
Xinxiang Hengyu Peanut Grade Machine photo-3

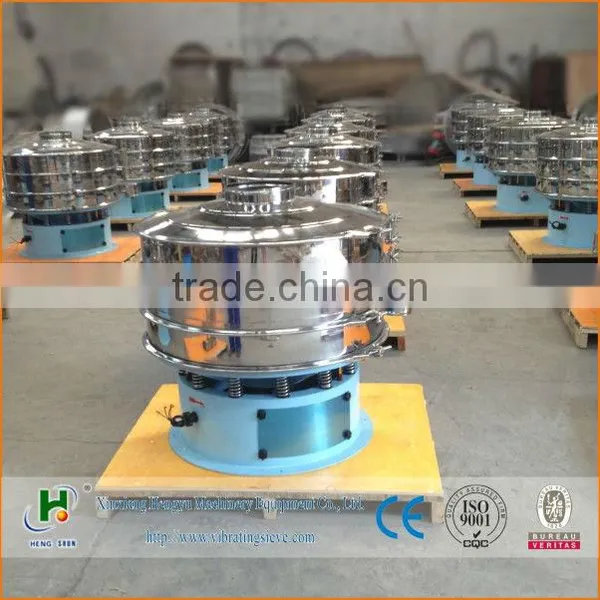

Xinxiang Hengyu Peanut Grade Machine photo-4

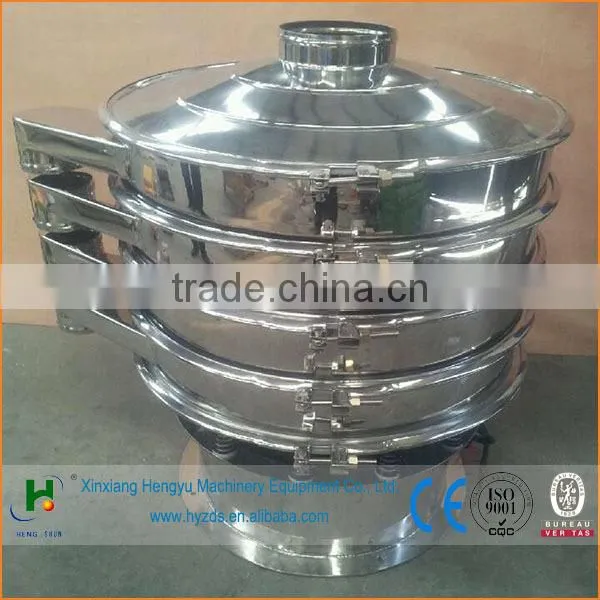

Xinxiang Hengyu Peanut Grade Machine photo-5
Xinxiang Hengyu Peanut Grade Machine photo-6
US$ 750 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, vibrating screen for different
Contact Supplier Request Quote Chat Now
Xinxiang Hengyu Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Circular
Application Other, vibrating screen for different
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1000-1S
Voltage 380V
Power(W) 1.5KW
Dimension(L*W*H) 1160*1160*950mm
Weight 290kg
Certification ISO,BV,CE
Warranty within 12 months
After-sales Service Provided Engineers available to service machinery overseas

       Xinxiang Hengyu  peanut grade machine

Full Technical support and Spares Service to keep your Lines Running.



Peanut grade machine advantages:

  • Customized vibrating screen service
  • CE Certificate
  • OEM and Very Reasonable Price
  • Sieve from 5mm-15 Micro
  • 12 month warranty




Tips:How to select a peanut grade machine :

1.material to be processed?
2.granule size of the materials?(or mesh number)
3.moisture content if any?
4.granule size proportion if possible to get?
5.capacity(tons or kg or litter per hour or day)
6.local power supply(voltage and frequency)

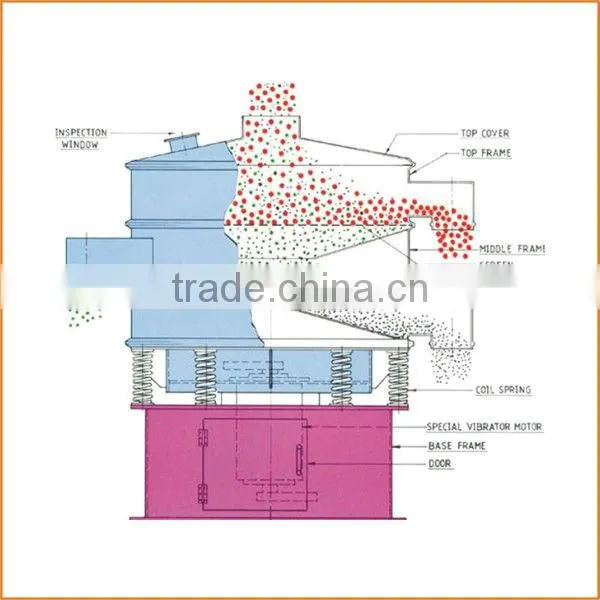

 Structure

Xinxiang Hengyu peanut grade machine



Technical Parameters

Model

Power

Diameter of screen surface

Dimensions
(mm)

Layer

HY-400- 1s

                2s

                3s

0.18kw

360mm

580*580*560

1

580*580*670

2

580*580*780

3

HY-600- 1s

                2s

                3s

0.25~0.55kw

560mm

800*800*750

1

800*800*890

2

800*800*1030

3

HY-800- 1s

                2s

                3s

0.55~0.75kw

760mm

900*900*750

1

900*900*890

2

900*900*1030

3

HY-1000- 1s

                 2s

                 3s

0.75~1.50kw

930mm

1160*1160*810

1

1160*1160*950

2

1160*1160*1090

3

HY-1200-1s

                2s

                3s

1.10~1.75kw

1130mm

1360*1360*885

1

1360*1360*1050

2

1360*13601275

3

HY-1500-1s

                2s

                3s

1.5~2.2kw

1430mm

1850*1850*990

1

1850*1850*1185

2

1850*1850*1380

3

HY-1800-1s

                2s

                3s

2.2~3.0kw

1730mm

2200*2200*1050

1

2200*2200*1250

2

2200*2200*1450

3



Sieve flour machine with vibration own more advantages:

  1. Can screen the particles of diameter up to635mesh ,and filter the serous fluid of diameter up to 500mesh
  2. According to the applying requirements , at most four-layer screens with different mesh number can be installed on the screen, and separate into five particle groups of different diameters
  3. Easy design and less power consumption but high efficiency
  4. Longer life span of mesh screen and convenient to change it
  5. Higher screening and separating efficiency

Show Some Pictures

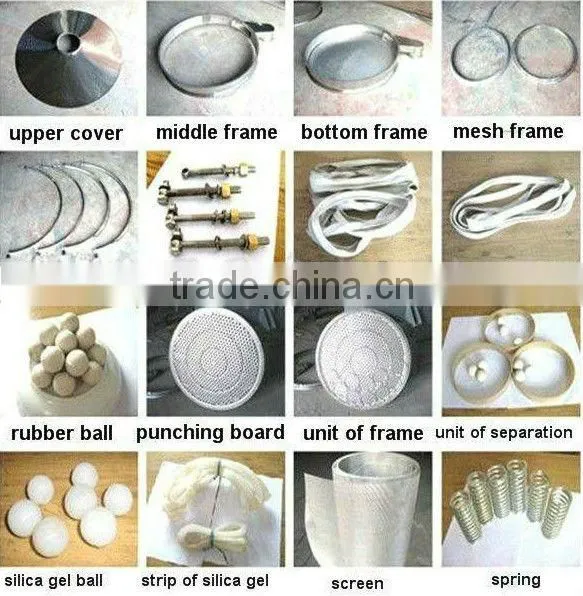

A. Parts

Xinxiang Hengyu peanut grade machine



------------------------------------------------------------------------------------------------------------------------------------------------

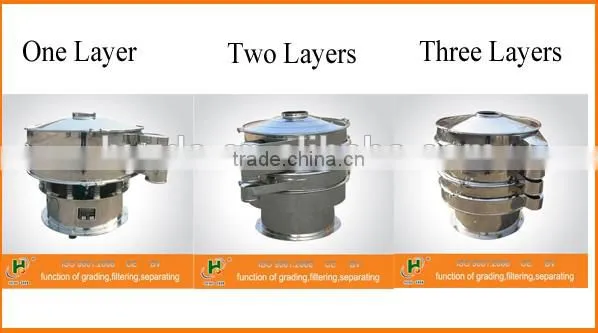

B. Different layer & different material

Xinxiang Hengyu peanut grade machine

Xinxiang Hengyu peanut grade machine

 -----------------------------------------------------------------------------------------------------------------------------------------------

C. Standard Accessories

Xinxiang Hengyu peanut grade machine

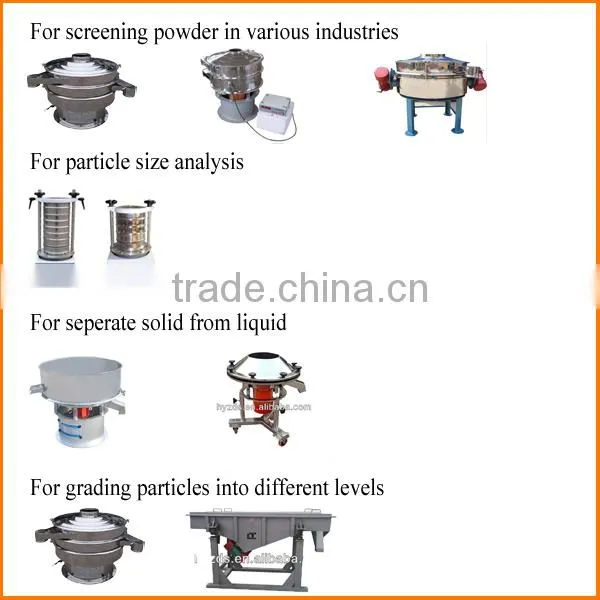

D. Application



Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.



Xinxiang Hengyu peanut grade machine

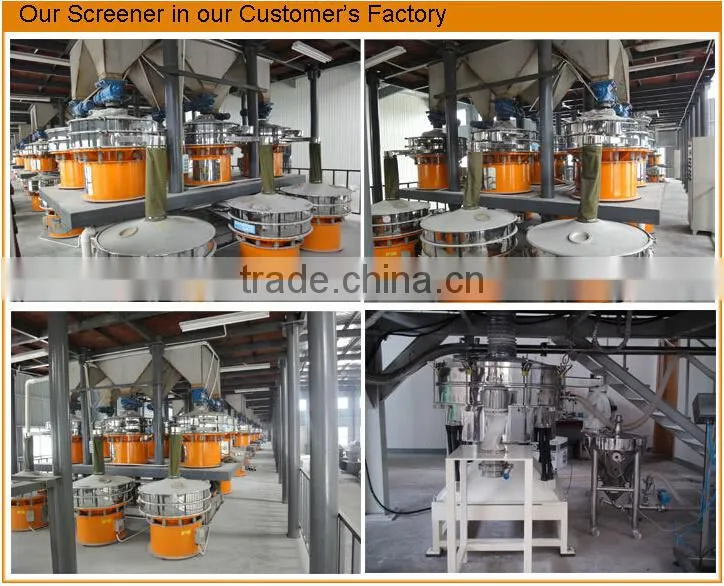

E. Working SceneXinxiang Hengyu peanut grade machine





---------------------------------------------- Packing & Shipping ---------------------------------------------------------



A. How To Delievery

Xinxiang Hengyu peanut grade machine



--------------------------------------------Company Information------------------------------------------------------

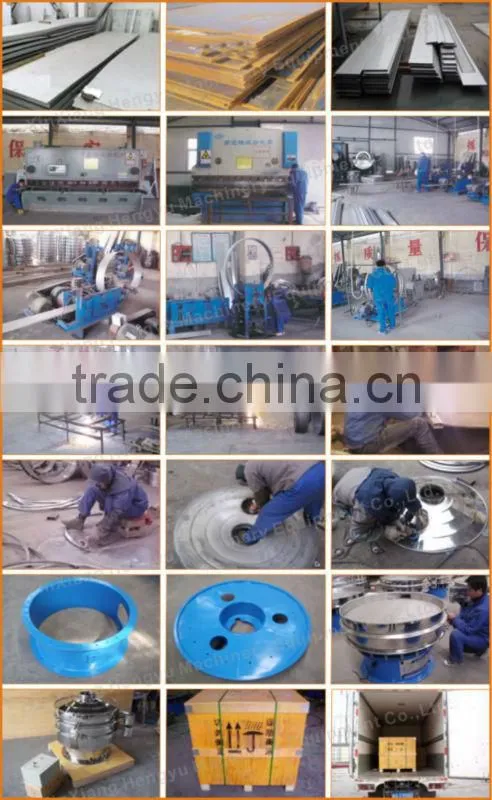

A. Show Our Factory

 Xinxiang Hengyu peanut grade machine



B. Exhibition Pictures



 Xinxiang Hengyu peanut grade machine



C. Our Main Market

Xinxiang Hengyu peanut grade machine



------------------------------------------------------------------------------------------------------------------------------------------------

Other vibrating screen for your reference

FAQ

1. How can I get your best offer before the order placing?

The more product request you provide, the more precise offer you will get.

Basic factors for an offer should have(including but no limitation): material name material density capacity screen size you need, etc.



2. What it does?
Separate solids from liquids or segregate dry materials into various sizes.



3. How it works?
 Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. and The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern.



4. Any self-cleaning devices on the sieving machine?
Yeah, Bouncing ball or Ultrasonic system could be installed.



5. How many kinds of material are supported?
A. All stainless steel (201, 304, 316L)
B. All carbon steel Q235A
C. Contact part Stainless steel.



6. About the phase and the voltage?
0.12-0.55 kw single phase and three phase are both supported.
0.55-2.2 kw Three phase is just supported.
110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).



7. How long is the warranty?
The warranty is 12 month(except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.).

Because different usage, the wearing parts will have different life.



8. OEM order and labeling services are supported?
Yeah, OEM order and labeling services are supported. And we seek global partners.



9. Whether the factory visits is supported or not?
Yeah, factory visits will be highly welcome. Airport picking up and hotel booking are both supported.

One hour to both Xinzheng International Airport





For More Details, Contact Us Now!
