China Large Capacity Vibrating Filter for Fertilizer

China Large Capacity Vibrating Filter for Fertilizer photo-1
US$ 1,500 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HENG SHUN
Model Number:
HY-1200-1S
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1200-1S
Type Grain Processing Equipment
After-sales Service Provided Engineers available to service machinery overseas

Specifications

China large capacity vibrating filter for fertilizer
1.Stainless steel shaker
2.Remove impurity from fertilizer

China large capacity vibrating filter for fertilizer



Introduction

China large capacity vibrating filter for fertilizer

China large capacity vibrating filter for fertilizer is a basic equipment for verity of industrials, it is efficiently and capable of all types of screening

operations for particles, powder, viscous liquid products. It is definitely a good helper in different

fields including chemical engineering, medicine, metal metallurgy, food processing, ceramics,

coating material and pollutant treatments.

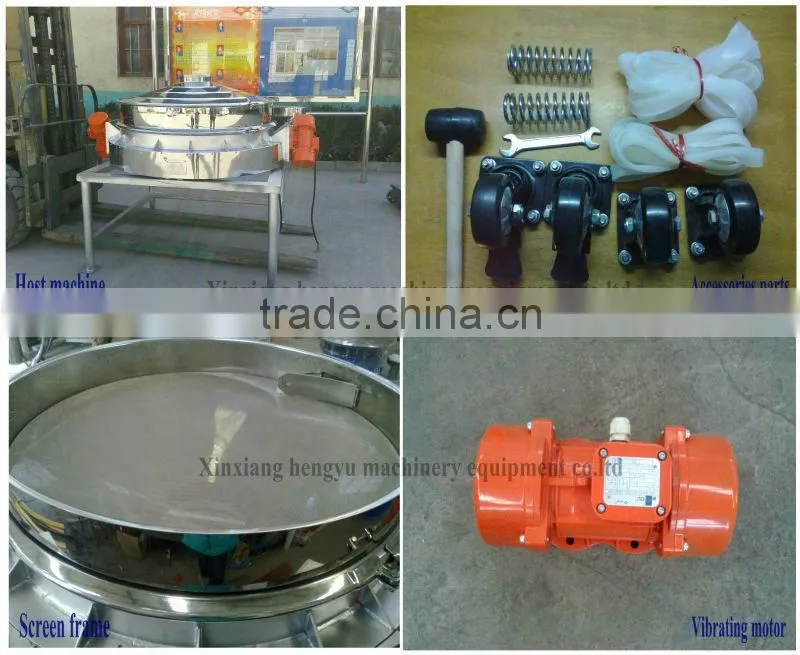

Details of China large capacity vibrating filter for fertilizer

China large capacity vibrating filter for fertilizer

China large capacity vibrating filter for fertilizer

China large capacity vibrating filter for fertilizer



Technical parameters of  China large capacity vibrating filter for fertilizer

China large capacity vibrating filter for fertilizer

No

Model

Power
kW

Speed
r/min

Sieve diameter
mm

Dimension
mm

Weight
kg

1

HY-600

0.18

1450

550

800x800x750

200

2

HY-800

0.18

1450

750

900x900x750

250

3

HY-1000

0.25

1450

930

1160x1160x810

330

4

HY-1200

0.37

1450

1130

1360x1360x885

400

5

HY-1500

0.55

1450

1430

1850x1500x990

480



Feature of China large capacity vibrating filter for fertilizer

China large capacity vibrating filter for fertilizer

A.The machine can be mounted onto a mobile stand allowing the unit to be easily transported around the production plant.

B. A screw conveyor also can be connected to the outlet allowing a larger storage bins to be used.

C. With its straight through design, the model is able to screen flour at a large capacity.

D.The upper discharge port can be adjusted within 360 °, easy to install and use.

E.Special design improves the discharging speed and exclusive feeding quantity.

F. Handling a large amount of materials, even high precision of screening.



Application industry

China large capacity vibrating filter for fertilizer

Food - Flour, Food ingredients, confectionery, chocolate, etc.
Chemicals - Chemical powders or liquids
Metals - Metal powders, alloys, etc.
Pharmaceuticals - Pharmacy powders, active powders, etc.
Ceramics - Ceramic powders, kaolin clay, etc.
Environment - Treating wastewater for clean disposal, etc

China large capacity vibrating filter for fertilizer



Exported country

China large capacity vibrating filter for fertilizer

Xinxiang hengyu China large capacity vibrating filter for fertilizer exported to the following countries:

China large capacity vibrating filter for fertilizer



Packing process

China large capacity vibrating filter for fertilizer

China large capacity vibrating filter for fertilizer





Pls provide the detailed information as follows,  so that we can supply you the suitable product:
1. Processing raw materials: name, particle size?
2. Handling capacity:  eg: Kg/hour?
3. Mesh size:  eg: mesh or mm?
4. Materials of machine: carbon steel, parts contact with material are stainless steel or full stainless steel?


Should you be interested in our China large capacity vibrating filter for fertilizer ,

please do not hesitate to contact us......
