HY high efficiency food screen is a new and multifunctional screening machine, which can be installed one or two electrical motors according to the characters of the materials. To change the movements of the materials by adjusting the vibrating force, and then achieve the aim of the screening. Besides this, the materials can be discharged directly which makes the processing efficiency improved dramatically.
Features of food screening:
1. Simple structure, large processing capacity, long service life, high productivity, low power consumption, and easy to be operated.
2. It can be directly installed between the raw materials barrel and the storage drums, easy to install, and save space. convenient for the production line
3. Processing materials quickly, no piled up. rapid screening of materials, obvious effect
4. IP54 protection rank, F level insulation, food grade and longer service life.
The application of food screening:
The vibrating screening is widely used for flour (such as sieving the wheat flour for instant noodles, and to eliminate / loose flour mixture with a processing efficiency), starch,washing powder, metal powder, additives, chemicals, non-mining sectors of the particle powder rough screening, precision screening of 350Kg/150 second.

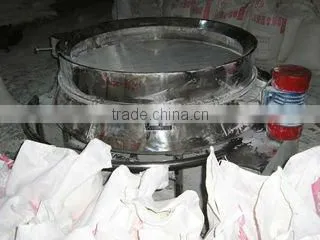

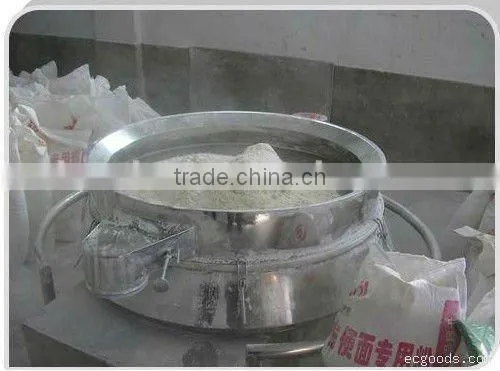

Flour sieving pictures
Other screening materials
The function of the food screening:
1. Classification
Each of vibration sieve can screen and separate precisely and continuously,the Multi—layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Filtrating
The mixture of solid and liquid can be separated effectively by single or multi—layer type into different grade materials.
3. Remove the impurities
The vibration sieve can quickly separate a few oversize or undersize particles from a quantity of materials.
Technical parameters of food screening:
Model |
Power(KW) |
Effective diameter |
Largest vibration force(N) |
Layer |
HY-600 |
0.18 |
550mm |
3000 |
1 |
HY-800 |
0.18 |
760mm |
3000 |
1 |
HY-1000 |
0.25 |
930mm |
5000 |
1 |
HY-1200 |
0.37 |
1130mm |
8000 |
1 |

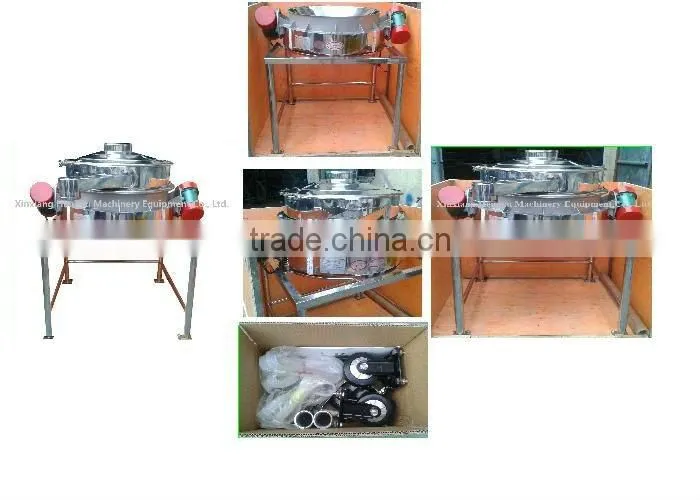

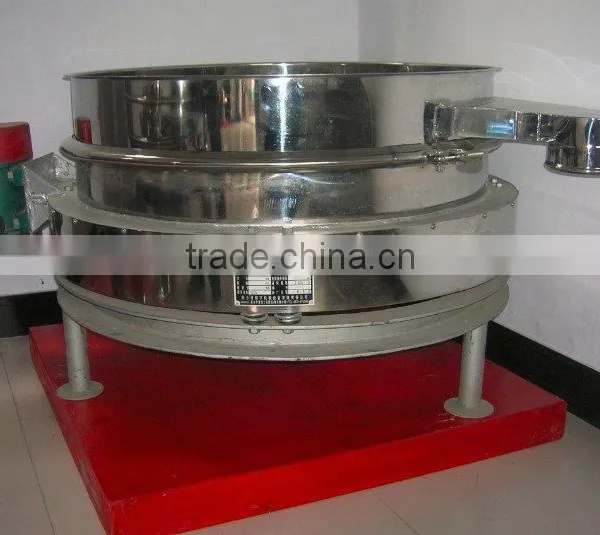

Our machine and packaging pictures
If you need more information, please contact us now.
We accept your special customization.
