China Stainless Steel Mechanical Vibrator Machine

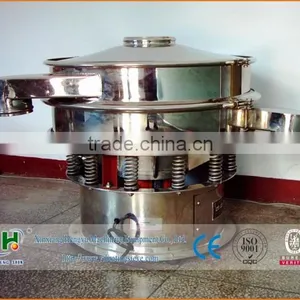

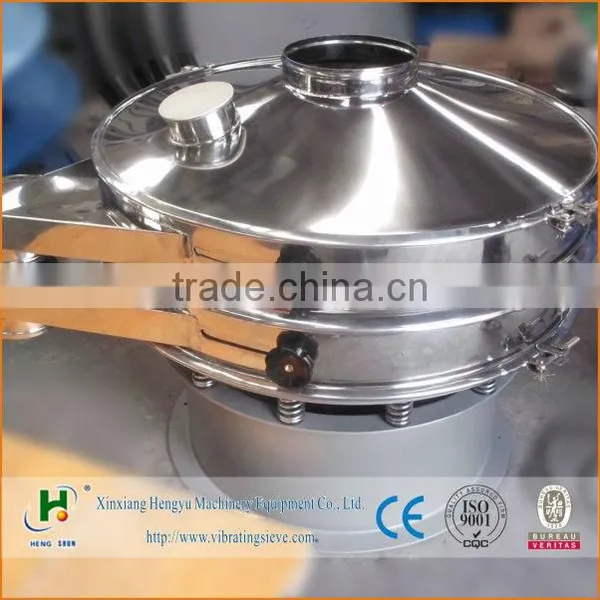

China Stainless Steel Mechanical Vibrator Machine photo-1

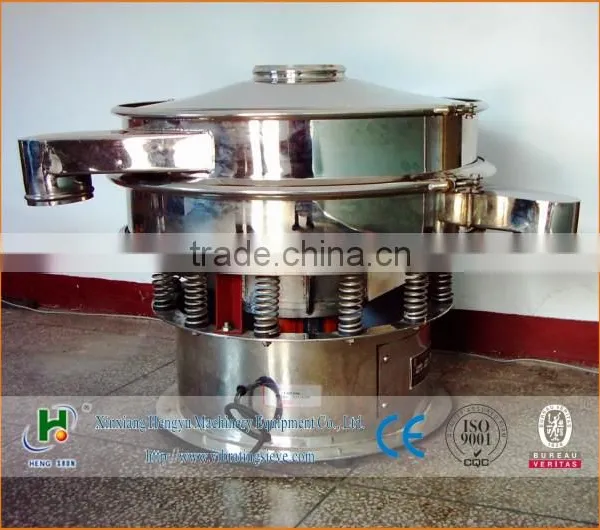

China Stainless Steel Mechanical Vibrator Machine photo-2
China Stainless Steel Mechanical Vibrator Machine photo-3

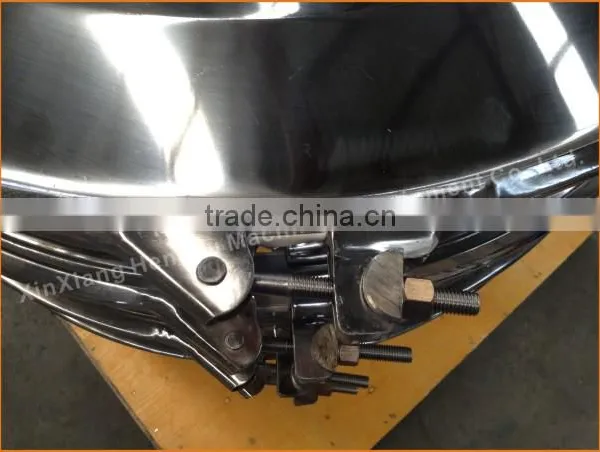

China Stainless Steel Mechanical Vibrator Machine photo-4

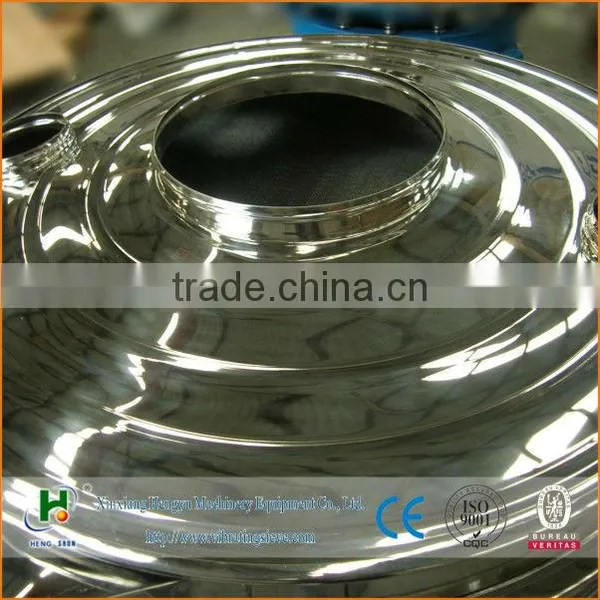

China Stainless Steel Mechanical Vibrator Machine photo-5
US$ 600 - 5,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HENG SHUN
Model Number:
HY-1000
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1000
Type Other, vibrating filter, circular
After-sales Service Provided Engineers available to service machinery overseas

      China stainless steel  mechanical vibrator machine



It is a good helper For ParticlePowder and Liquid.



What can we do for you?

1. Improves your product quality

2. Increases your productivity

3. Reduces your costs

4. Operator friendly



More Features of mechanical vibrator

China stainless steel mechanical vibrator machine



A.  Mature technology, stable structure, high performance at a good price.

B.   Any particle, powder, slurry can be filtered screening

C.  Stainless steel 304 sieves with long service life.

D.   With bounce ball under the mesh, it can prevent the mesh from blocking.

E.  Outlet can be adjustable in the range of 360 °, which is convenient to arrange.

F.  Three functions of our machine, such as grading particles into different levels,

      remove the impurity from powder, separate solid from liquid.

G.  IP55 protection level motor and higher or lubrication free motor as request.



Technical Parameters

China stainless steel mechanical vibrator machine







Model



Diameter

Screen surface



Screen opening

Power



Deck

Diameter

Area

(mm)

(mm)

(m2)

(kw)

HY-400

400

360

0.1017









5-500mesh

0.18

1-4

 HY-600

    600

560

0.2461

0.25-0.55

1-4

 HY-800

800

760

0.4534

0.55-0.75

1-4

 HY-1000

1000

930

0.6789

0.75-1.5

1-4

 HY-1200

1200

1130

1.0023

1.10-1.75

1-4

 HY-1500

1500

1430

1.6052

1.50-2.20

1-4

 HY-1800

1800

1730

2.3494

2.20-3.0

1-4





You can choose the vibrator machine with two ways:

China stainless steel mechanical vibrator machine



 Option on deck number, depend on your aim also



 China stainless steel mechanical vibrator machine



2. Option on material, depend on your processing materials





China stainless steel mechanical vibrator machine



Quality assurance

China stainless steel mechanical vibrator machine

Quality assurance is the process of verifying or determining whether products or services meet or

exceed customer expectations.

We use the following methods to ensure the quality of our products:



A.  Experienced staff

B.  Quality Control Department

C.  Third-party supervision



Our products passed the ISO9001:2008 and CE certificate





Welcome to our website, we are happy to solve the screening problem together with you!
