Screw Conveyor for Agriculture

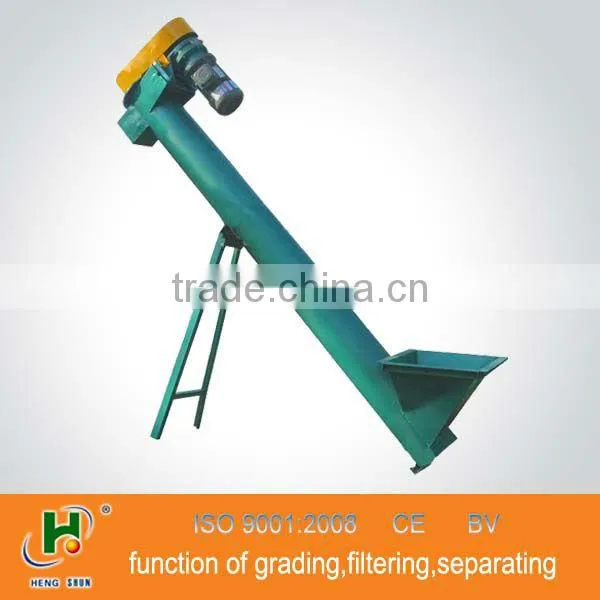

Screw Conveyor for Agriculture photo-1

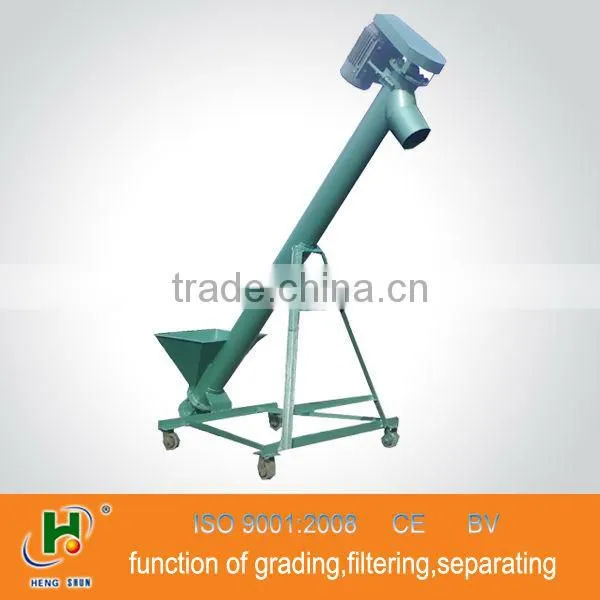

Screw Conveyor for Agriculture photo-2
US$ 850 - 4,225 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw Conveyor
Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Screw Conveyor
Material Stainless Steel
Material Feature Heat Resistant
Structure Conveyor System
Load Capacity as your request
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number LS200
Voltage as request
Power(W) 380V, 415V
Dimension(L*W*H) can be changed as request, Vary from different models
Certification ISO9001:2008
After-sales Service Provided Engineers available to service machinery overseas





Large capacity screw conveyor for agriculture







About new screw conveyor dryer

Introduction

screw conveyor for agriculture

screw conveyor



The screw conveyor can be divided into level, inclined and combined types according to configuration style. It can finish concentrated transportation, respectively conveying, mixing materials, mixture, dewatering, customized batching, discharging and stacking, being used with other conveying device together.



Features of Screw Conveyor 30 tn

Screw Conveyor



1.Ideal for conveying powders, granules and blends
2.High speed rate and compact overall dimensions
3.Large carrying capacity, safe and reliable operation
4.Inlets and outlets can be configured as required
5.Wide range of construction materials-carbon steel, stainless steel and abrasion-resistant alloys.

6.stainless steel screw conveyor for conveying powder.



screw conveyor for agriculture

Function

screw conveyor



Screw conveyor is widely used in various industries, such as building materials, chemical industry, electric power, metallurgy, mine, coal, grain etc. It applies level or tilted transportation powder, granular and small lump materials, such as coal, ash and slag, cement, grain and other materials. It is not suitable for conveying bad, big viscosity, nutrition materials.

screw conveyor for agriculture

Serve for the following industry

screw conveyor for agriculture

screw conveyor



It is applicable to convey all kinds of powder, grain, small block materials such as clay powder, powdered coal, cement, sands, grain, small sized coal, pebble and cast iron scraps, and not suitable for conveying large viscosity materials, easy caking materials, metamorphic materials.

Technical Parameters

screw conveyor

Item

LSY160

LSY200

LSY250

LSY300

Metric diameter of screw

160mm

193mm

250mm

300mm

Length of screw conveyor

2.5-6m

4.5-12m

6-9m

6-9m

Rotary speed of main axle

100r/min

209 r/min

209 r/min

174 r/min

External case diameter

Φ194mm

Φ219mm

Φ273mm

Φ325mm

Working angle

≤20°

≤35°

≤35°

≤35°

Conveying capacity

25t/h

35t/h

50t/h

75t/h

Power of motor

3-7.5KW

4-11KW

7.5-11KW

11-18.5KW





Product Avantages

1.High efficiency and power saving; long service life

2.Reliable quality; reasonable design

3.High capacity of abrasion-resisting and anti-winding; large torsional distance

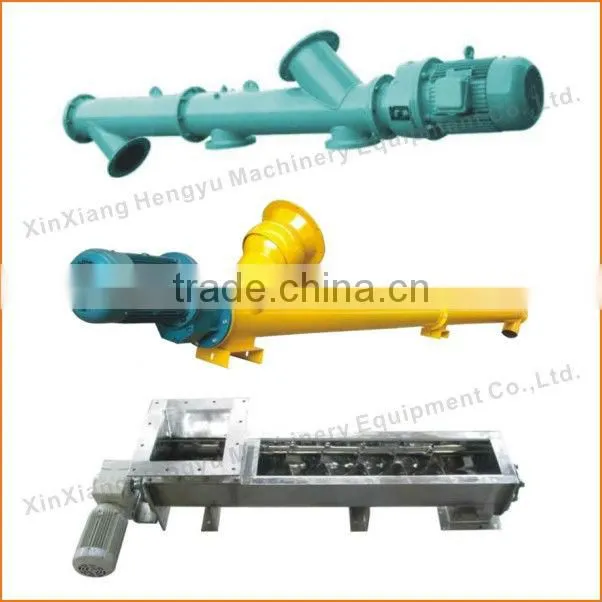

Picture's show



screw conveyor for agriculture

How to work?

screw conveyor for agriculture

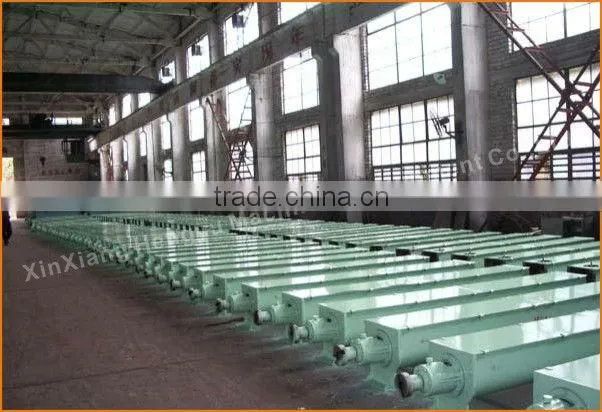

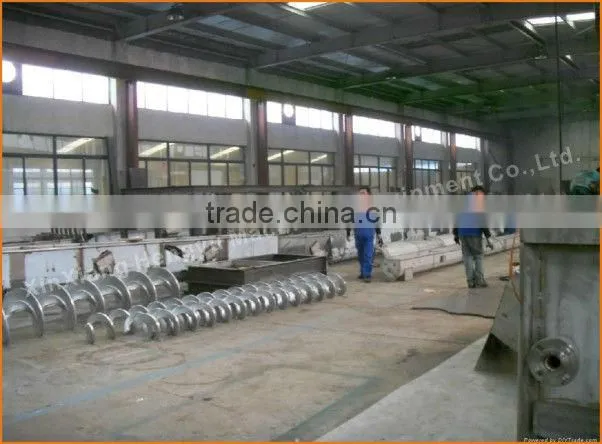

Working site

screw conveyor for agriculture

screw conveyor for agriculture

screw conveyor for agriculturescrew conveyor for agriculturescrew conveyor for agriculturescrew conveyor for agriculturescrew conveyor for agriculture

Why Us

a. Brand-name parts
b. Country of origin: China
c. Gurantee/warranty: 1 year
d. Packing: Wooden packing. Special fumigation-free wooden material. OR according to your requirement.
e. Price. We promise a factory price for each machine.
f. Product features: 1. Dust-proof, heat-proof, oil-proof, explosion-proof.
2. Green, Environment, Performance.
g. Product performance: screening rate can arrive to not less than 95%.
h. Prompt delivery: 7 days
i. Services: ±2% spare parts.
j. Small order accepted.
