Cement Powder Screw Conveyor With Good Sealing Performance

Cement Powder Screw Conveyor With Good Sealing Performance photo-1
US$ 1,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw Conveyor
Material:
Other, Stainless Steel, carbon steel with Anti-corrosion paint
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Screw Conveyor
Material Other, Stainless Steel, carbon steel with Anti-corrosion paint
Material Feature Heat Resistant
Structure Other, Conveyor System, roller conveyor
Load Capacity 12-60t/h
Place of Origin Henan, China
Brand Name HENG YU
Model Number LS315
Voltage your local market, your local market
Power(W) 5.5-30kw
Dimension(L*W*H) as your request
Certification BV & CE certificate & ISO9001:2008
After-sales Service Provided Engineers available to service machinery overseas

Specifications

cement powder screw conveyor
1.Spiral conveyor for mining
2.Sealed operation, simple structure
3.Low cost,Long warranty

 Cement Powder Screw Conveyor with Good Sealing Performance



We are one the trusted screw conveyor producer and suppliers in China. The  high efficiency horizontal screw conveyor offered by us are used for easy and efficient handling of heavy materials. Besides, we also deal in Feed hoppers of all sizes and shapes, Discharge arrangements etc.



Salient Features

cement powder screw conveyor with good sealing performance

1. Worked with packaging machine for feeding variety powdery products.

2. High speed rate and compact overall dimensions

3. Horizontal, inclined or vertical position

4. Products storage hopper can be separated from the screw and tube easily

5. Assembled by standard parts and components

6. Good seal performance, good transportation efficiency



Technical paramete

Item

LSY160

LSY200

LSY250

LSY300

Metric diameter of screw

160mm

193mm

250mm

300mm

Length of screw conveyor

2.5-6m

4.5-12m

6-9m

6-9m

Rotary speed of main axle

100r/min

209 r/min

209 r/min

174 r/min

External case diameter

Φ194mm

Φ219mm

Φ273mm

Φ325mm

Working angle

≤20°

≤35°

≤35°

≤35°

Conveying capacity

25t/h

35t/h

50t/h

75t/h

Power of motor

3-7.5KW

4-11KW

7.5-11KW

11-18.5KW



See the structure to understand the model

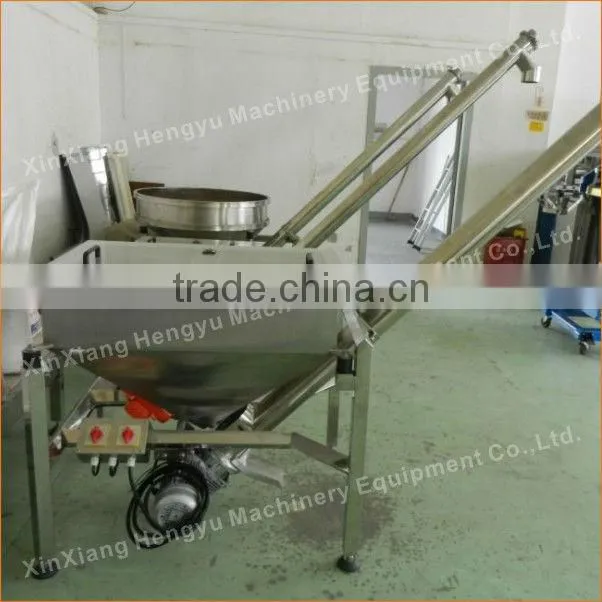

 cement powder screw conveyor with good sealing performance



Function and Application

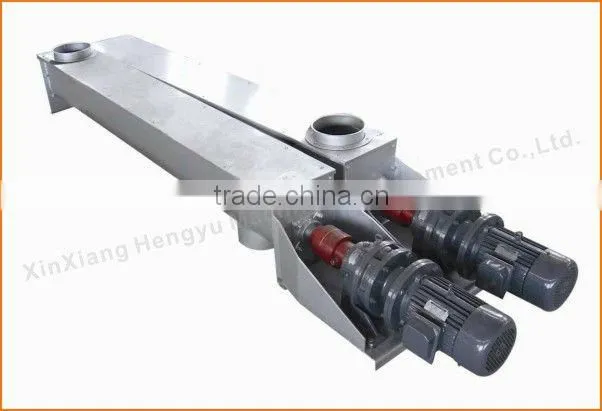

cement powder screw conveyor with good sealing performance

The cement powder screw conveyor

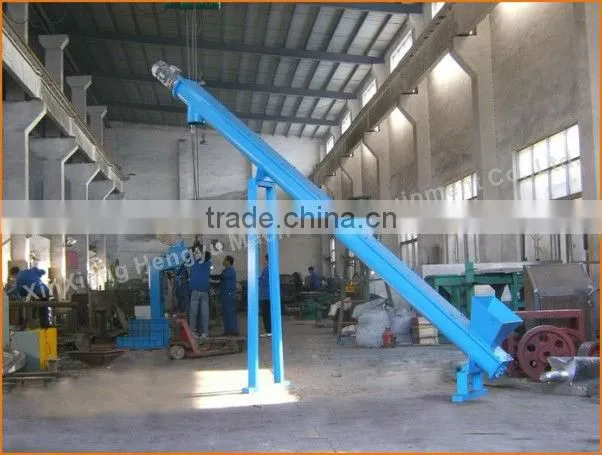

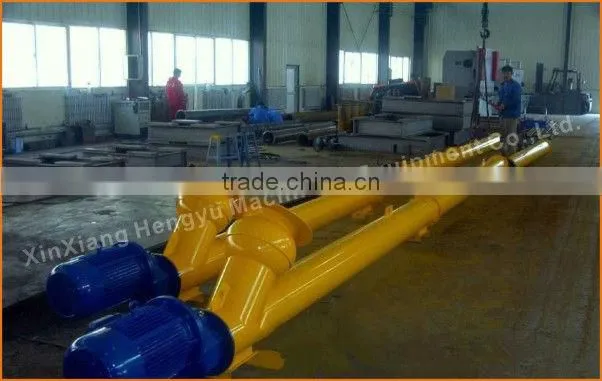

Show some workshop photoes of cement powder screw conveyor

 cement powder screw conveyor with good sealing performance

cement powder screw conveyor with good sealing performance

cement powder screw conveyor with good sealing performance

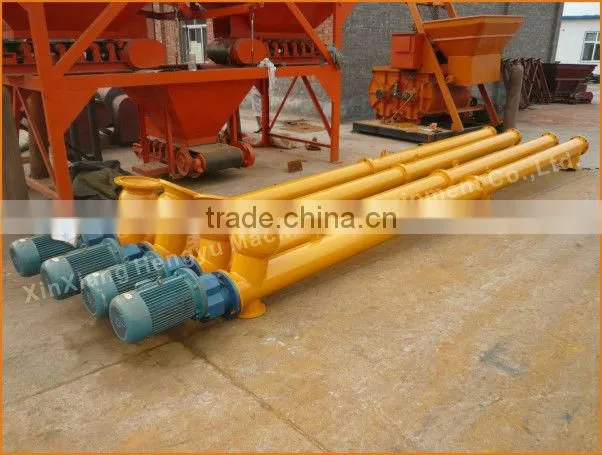

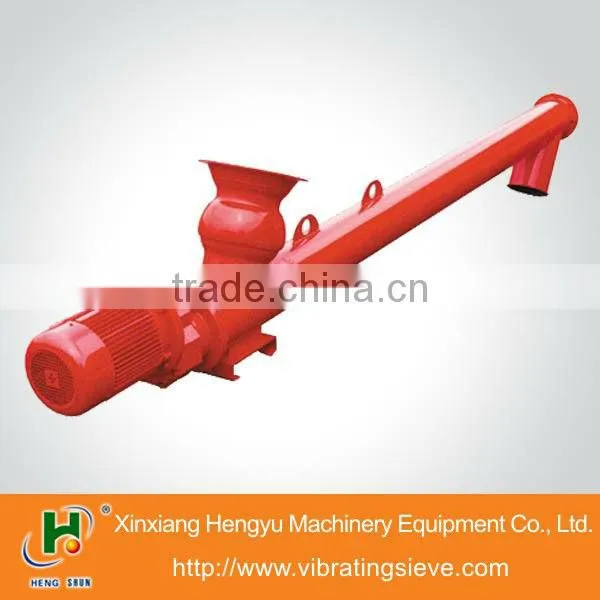

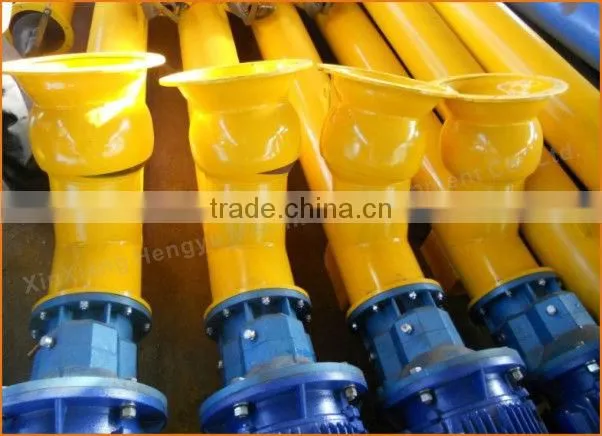

 Other types of cement screw conveyor

 cement powder screw conveyor with good sealing performance

cement powder screw conveyor with good sealing performance

cement powder screw conveyor with good sealing performance



Why choose us?

cement powder screw conveyor with good sealing performance
1. With 8 years production of screening
2. More than 20 countries clients loves our products.
3. All of our products have passed the evaluation of ISO9001 and CE certification.
4. The Chinese leading screening products provider and the technology design center.

 cement powder screw conveyor with good sealing performance



Contact information of sales

cement powder screw conveyor with good sealing performance





Welcome to contact us for more information , we will do my best for our friends!
