Specifications
charcoal screw conveyor1.Spiral conveyor for mining
2.Sealed operation, simple structure
3.Low cost,Long warranty

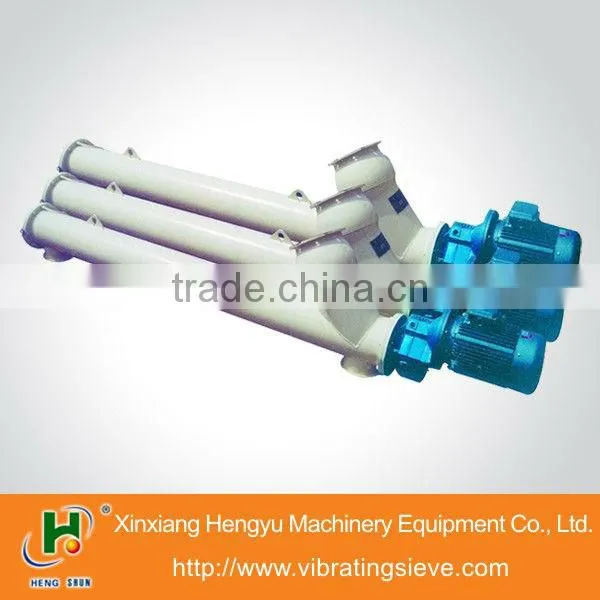

Carbon Steel Professional Charcoal Screw Conveyor
We are one the professional charcoal screw conveyor in China. The high efficiency horizontal screw conveyor offered by us are used for easy and efficient handling of heavy materials. Besides, we also deal in Feed hoppers of all sizes and shapes, Discharge arrangements etc.
Salient Features
1. Worked with packaging machine for feeding variety powdery products.
2. High speed rate and compact overall dimensions
3. Horizontal, inclined or vertical position
4. Products storage hopper can be separated from the screw and tube easily
5. Assembled by standard parts and components
6. Good seal performance, good transportation efficiency
Technical parameter
Model |
Screw dia. (mm) |
Pitch of screw (mm) |
Speed (r/min) |
Output (m3/h) |
Speed (r/min) |
Output (m3/h) |
Speed (r/min) |
Output (m3/h) |
Speed (r/min) |
Output (m3/h) |
|
Small model |
LS160 |
160 |
160 |
112 |
7.1 |
90 |
5.7 |
71 |
4.5 |
56 |
3.6 |
LS200 |
200 |
200 |
100 |
12.4 |
80 |
9.9 |
63 |
7.8 |
50 |
6.2 |
|
Middle model |
LS250 |
250 |
250 |
90 |
21.8 |
71 |
17.2 |
56 |
13.6 |
45 |
10.9 |
LS315 |
315 |
315 |
80 |
38.8 |
63 |
30.5 |
50 |
24.2 |
40 |
13.4 |
|
LS400 |
400 |
355 |
71 |
62.5 |
56 |
49.3 |
45 |
38.6 |
36 |
31.7 |
|
Big model |
LS500 |
500 |
400 |
63 |
97.7 |
50 |
77.6 |
40 |
62.0 |
32 |
49.6 |
LS630 |
630 |
450 |
50 |
138.5 |
40 |
110.8 |
32 |
88.6 |
25 |
69.3 |
|
LS800 |
800 |
500 |
40 |
198.5 |
32 |
158.8 |
25 |
124.1 |
20 |
99.3 |
|
Oversize model |
LS1000 |
1000 |
560 |
32 |
277.9 |
25 |
217.1 |
20 |
173.7 |
16 |
139.0 |
LS1250 |
1250 |
630 |
25 |
381.7 |
20 |
305.4 |
16 |
244.3 |
13 |
198.5 |
|
See the structure of similar screw conveyor to understand the model
Pictrueres of different types of screw coneyor
Function and Application
The screw conveyor is widely used in various industries, such as building materials, chemical industry, electric power, metallurgy, mine, coal, grain etc.
It applies level or tilted transportation powder, granular and small lump materials, such as coal, ash and slag, cement, grain and other materials. It is not suitable for conveying bad, big viscosity, nutrition materials.
Why choose us?
1. With 8 years production of screening
2. More than 20 countries clients loves our products.
3. All of our products have passed the evaluation of ISO9001 and CE certification.
4. The Chinese leading screening products provider and the technology design center.
Contact information of sales
Welcome to contact us for more information , we will do my best for our friends!
