Professional particle and powder screw conveyor
|
Powder screw conveyor
Screw conveyor is a kind of continuous transmission equipment which without immunity traction components, it uses rotation screw to convey material. The screw conveyor is of simple structure, low marking cost, strong sealing, safe, convenient operation and other advantages. It allows multiple inlets and outlets. It is widely used in various industrial department (such as building materials, chemicals, electric power, metallurgy, coal, mine, food and other industries) to convey powder, granular and lump material, such as, coal, ash, slag, cement, food, etc. The temperature of transported material is less than 200°C. Screw conveyor is not suitable for transporting that material with features of perishable, big viscous and easy caking.
The function of powder screw conveyor
It is applicable to convey all kinds of powder, grain, small block materials such as clay powder, powdered coal, cement, sands, grain, small sized coal, pebble and cast iron scraps, and not suitable for conveying large viscosity materials, easy caking materials, metamorphic materials.
The features of powder vibrating screen
1.Compact structure, small cross section, light weight
2.Good seal performance, good transportation efficiency
3.Flexible technological arrangement, easy to be installed , dismantle and moved, safe operation
4. Totally enclosed design for dust and vapor-tight requirements
5. Compact structure, small cross section, light weight
6. Compared with other transport equipment, the section size of screw conveyor are small, good sealed performance, stable operation, and simple maintenance.
Technical parameter of powder screw conveyor
Model |
Spiral diameter(mm) |
Pitch(mm) |
Spiral speed(r/min) |
MAX transport capacity(m3/h) |
Motor power(kw) |
Admission biggest gradient(°) |
LS100 |
100 |
100 |
140 |
2.2 |
2.2---18.5 |
≤ 60. |
LS125 |
125 |
125 |
125 |
4.0 |
||
LS160 |
160 |
160 |
112 |
8 |
||
LS200 |
200 |
200 |
100 |
11 |
||
LS250 |
250 |
250 |
90 |
22 |
||
LS315 |
315 |
315 |
80 |
34 |
||
LS400 |
400 |
355 |
71 |
64 |
||
LS500 |
500 |
400 |
63 |
95 |
||
LS630 |
630 |
450 |
50 |
150 |

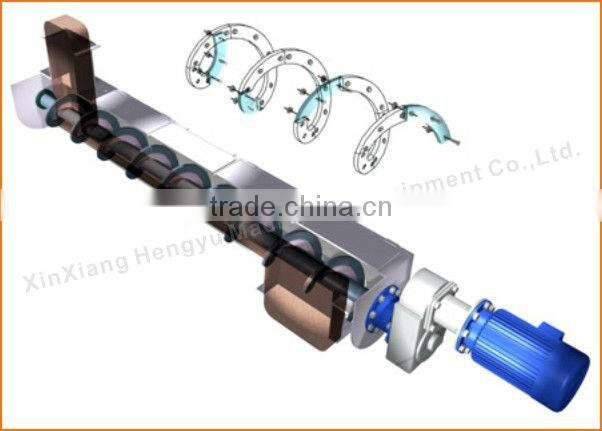

The structure

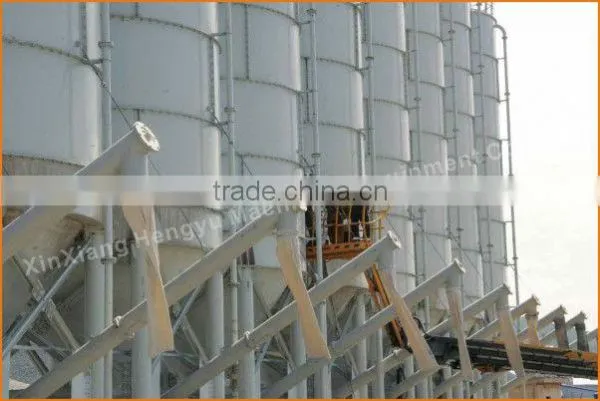

Our powder screw conveyor applied to
Loose materials such as powder, granular and small piece material , which includes: clay powder, pulverized coal, cement, sand, grain, small piece of coal , cobble, and cast iron filings, etc.
While it is not applicable for materials with high viscosity and easy to be curdled.

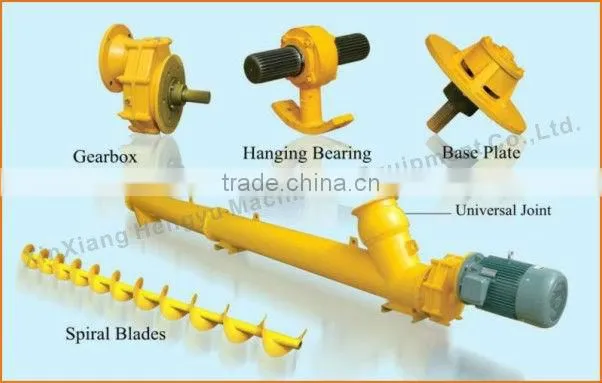

The detailed parts pictures
About our factory
1) Manufacture sieving and conveying equipment for 10 years
2) 119,09 square meters workshop area
3) Monthly production capacities: 150-200 sets
4) All goods examined before delivery by 4 QC staff
5) Exported to 20 counties and regions
Our service of powder screw conveyor
Customer's notice
Each equipments is not standard.
Therefore,we need you to send us specific inquiry.Then we can quote price and detailed information according to your specific technical datas and requirements.
Parameter includes: 1 What's the material you are going to deal with ?
2 What are the physical characteristics of the material?
Such as the size,temperature,density,moisture content,etc
3 What's the producing capacity you are going to achive?
If you are interested in our sand screw conveyor, pls email or call
Tel:86-373-3807161 Fax:86-373-3807161 Skype:daniel.liu223
Our team is ready for your needs, please contact us.
