CE Certification Linear Mining Coarse Screen

Xinxiang Hengyu Machinery Equipment Co., Ltd.
CE Certification Linear Mining Coarse Screen thumbnail-1
CE Certification Linear Mining Coarse Screen photo-1
US$ 1,000 - 7,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HENG SHUN
Model Number:
HY-1020-4S
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1020-4S
Type Grain Processing Equipment
After-sales Service Provided Engineers available to service machinery overseas



                        CE Certification Linear Mining Coarse Screen

Hengyu linear vibrating mining coarse screen use vibration motor as vibration source, the materials is rosed and moved in the straight at the same time.

The materials are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates. It is suitable for low consuming, high output, and simple structure, easily maintain all-closed structure, no powder dispersed, automobile discharged.

Materials  1. All stainless steel
2. All carbon steel
3. The contact part stainless steel
Feature

1. Fully enclosed structure avoids dust overflow that reaching the request of sanitation

2.  High screen accuracy and efficiency. It can be used for powder and granular classification.

3.  Supporting device: including supporting springs and supporting legs which welded by channel iron.

The inclination of the screen can be modulated by changing the height of thenm.

4.  Never jam the screen, no powder flying, screen size of the powder between 500 mesh and 0.028 mm.

5.  Vibration motor: two sets of horizontal vibration motor installed in the equipment as vibration source, they can produce exciting force to adapt to different requirements by adjusting eccentric block at both ends of motor.

6. Fully adjustable screening mouth, ease to connect with your production line .

7. Passed ISO, CE and BV certificates.

Technical parameters

Model

HY-520

HY-525

HY-1020

HY-1025

HY-1030

Appearance Dimension

500×2000

500×2500

1000×2000

1000×2500

1000×3000

Material  Granularity

0.074-10

0.074-10

0.074-10

0.074-10

0.074-10

Angle

1°-7°

1°-7°

1°-7°

1°-7°

1°-7°

Amplitude

3-5

3-5

3-5

3-5

3-5

Layer

1-6

1-6

1-6

1-6

1-6

Power

2× (0.37-0.75)

2×(0.37-0.75)

2× (0.55-1.1)

2× (0.55-1.1)

2× (0.55-1.1)



function

1. Grading
Mulit-layers China limestone vibrating sieve can screen and separate eight groups of different particles at a time. It is suitable for dry materials.


2. Remove the impurity
The construction vibrating sieve can quickly separate a few oversize or undersized particles from a quantity of materials.


3. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.

after-sales serviceEngineers available to service machinery overseas
Contact details
CE certification linear mining coarse screen
Contact Liza
My phone+86 18737309961
Tel86-373-3807161
Skypelizali008
Pictures of construction vibrating sieve

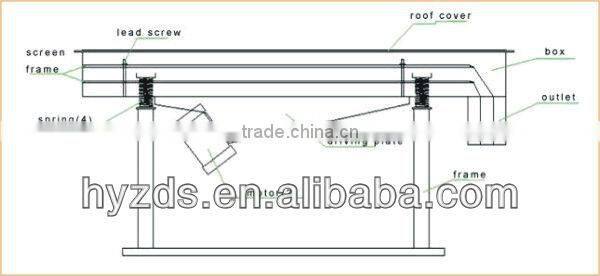

StructureCE certification linear mining coarse screen
Model figureCE certification linear mining coarse screen
Different types for linear vibrating sieve

 CE certification linear mining coarse screen

CE certification linear mining coarse screen

CE certification linear mining coarse screen



CE, BV and ISO certificateCE certification linear mining coarse screen
Widely application

1. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup.
3. Metallurgy, Mining industry: aluminum powder, copper powder, ore alloy powder, welding rod powder.
4. Medical industry: all kinds of medicine.
5. Waste treatment: disposed oil, disposed water, disposed dye waste water etc.



CE certification linear mining coarse screen
What can i do for you
CE certification linear mining coarse screen
By telling us the following information to learn which models of  construction vibrating sieve for you?
1. Material’s name, the density, water content (%)?
2. The necessary capacity you required (per hour)?
3. The wire screen mesh sizes you need?
4. Machine material. Pls choose from the following 3 options:
A. Carbon steel
B. The contacting part is SUS304, the other parts is carbon steel.
C. Full SUS304 or SUS316.





Choose us, the good sieving result promised for you, action now!
