Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity

Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity thumbnail-1
Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity thumbnail-2
Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity thumbnail-3
Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity thumbnail-4
Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity thumbnail-5
Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity thumbnail-6
Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity photo-1
Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity photo-2
Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity photo-3
Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity photo-4
Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity photo-5
Linear Vibrating Sieve Shaker Machine Sand Filter With Large Capacity photo-6
US$ 1,200 - 16,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Linear
Application:
Chemicals
Contact Supplier Request Quote Chat Now
Xinxiang Hengyu Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Linear
Application Chemicals
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-520-1S
Voltage 220V,380,415,
Power(W) 0.37*2KW
Dimension(L*W*H) 2230*1390*1640mm
Weight 810kg
Certification CE,BV
Warranty 1 YEARS
After-sales Service Provided Engineers available to service machinery overseas

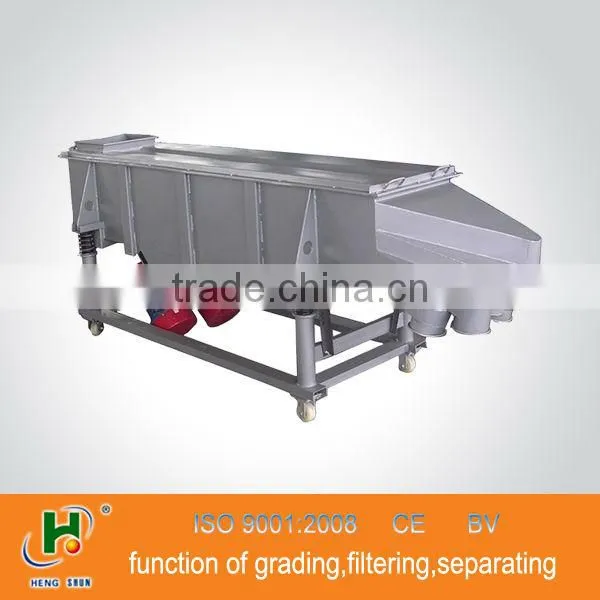

Linear vibrating sieve shaker machine sand filter with large capacity



Related product

Linear vibrating sieve shaker machine sand filter with large capacity

slurry vibrating sieve



 ♣ Powder: 0.40kw

 ♣ Diameter of screen surface(mm): 1000mm

 ♣ Weight: 210kg

 ♣ Ceramic industry patented product
Linear vibrating sieve shaker machine sand filter with large capacity

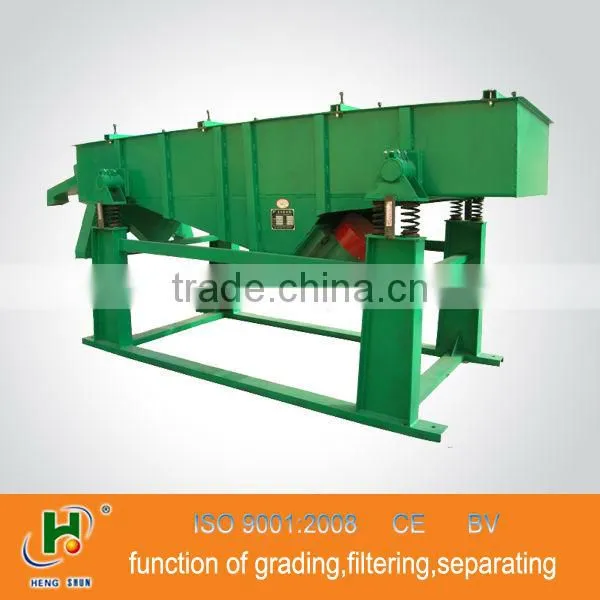

linear vibrating sieve bend screen



♣ Powder: 2*(0.55-1.10)kw

♣ Dimensions(mm): 2470x1390x1800mm

♣ Weight: 970kg

♣ two kinds of screen frame.


Linear vibrating sieve shaker machine sand filter with large capacity

High frequency vibrating sieve screen



 ♣ Powder: 0.75kw

 ♣ Dimensions(mm): 1160*1160*810mm

 ♣ Weight: 210kg

 ♣ Gray machine base

 ♣ With the observation hole

 ♣ The highest layers of the screen are about 5 layers, But 3 layers are suggested.




Linear vibrating sieve shaker machine sand filter with large capacity

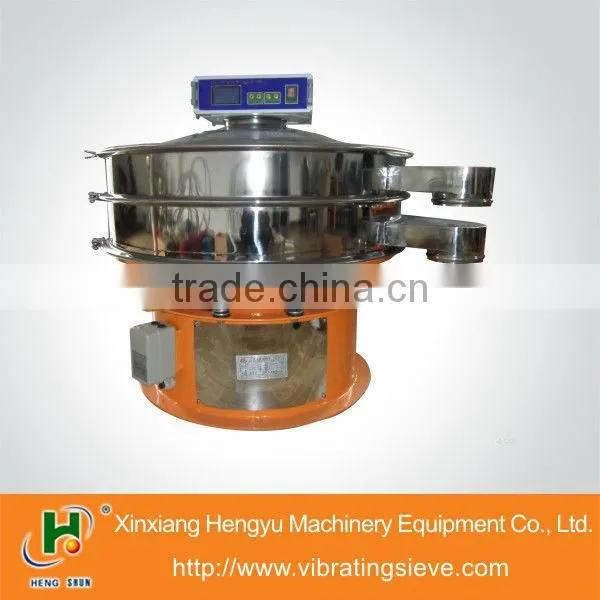

untrasonic vibrating sieve bend screen shaker



 ♣ Powder: 1.10kw

 ♣ Dimensions(mm): 1360*1360*885mm

 ♣ Weight: 275kg

 ♣ With the observation hole

 ♣ Changer is easy, simple, and easy to clean.







Brief description

vibrating sieve bend screen shaker use vibration motor as vibration source, the materials is jumped and moved in the straight at the same time. The materials are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates. It is suitable for low consuming, high output, and simple structure, easily maintain all-closed structure, no powder dispersed, automobile discharged.



Function

♦ Dry separation
-Separation of different materials on the basis of their particle shape
-Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
♦ Dry classification
-Separation of solid particles into precise sized fractions
-Foods, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives



Specification

Model

HY-520

HY-525

HY-1020

HY-1025

HY-1030

Appearance Dimension

500×2000

500×2500

1000×2000

1000×2500

1000×3000

Material  Granularity

0.074-10

0.074-10

0.074-10

0.074-10

0.074-10

Angle

1°-7°

1°-7°

1°-7°

1°-7°

1°-7°

Amplitude

3-5

3-5

3-5

3-5

3-5

Layer

1-6

1-6

1-6

1-6

1-6

Power

2× (0.37-0.75)

2×(0.37-0.75)

2× (0.55-1.1)

2× (0.55-1.1)

2× (0.55-1.1)





Photos

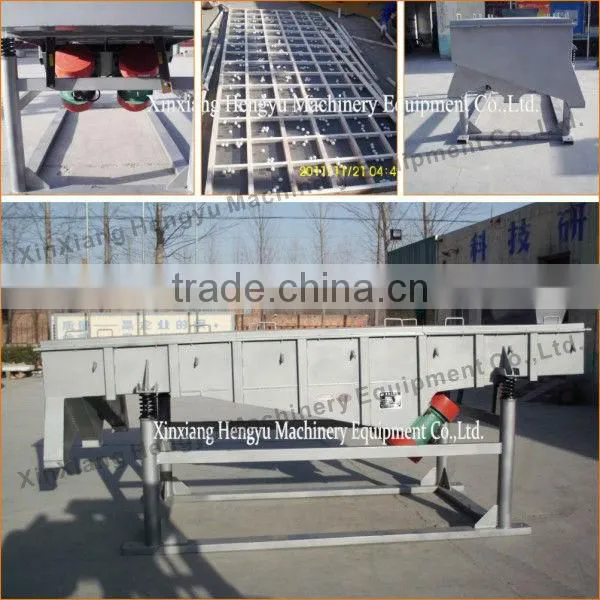

Parts of  vibrating sieve bend screen shaker

Linear vibrating sieve shaker machine sand filter with large capacity

circular vibrating sieve bend screen shaker

Linear vibrating sieve shaker machine sand filter with large capacity



To save customers the cost of imports, we can supply certificate of origin, ISO, CE, etc.

Linear vibrating sieve shaker machine sand filter with large capacity

Sales service of vibrating sieve brend screen

Linear vibrating sieve shaker machine sand filter with large capacity





You can use our vibrating sieve screen at ease, the best after-sales service will be offered from HENGYU.

♣ One year warranty.

♣ Providing free quick-wear part.

♣ Low charge for continue maintenance when warranty is expired.

♣ Exclusive engineer support at any time.

♣ We can provide free training to end-users.



For right model

Can you supply more information for us,we can recommend suitable vibrating sieve bend screen shaker for you .

1. Material: ________
The particle size distribution : _____
The maximum feeding material size: and what is the percentage of the various parts of the material? ________
2. Capacity: __________ t/ h?
3. Sieving aim: ______(a or b)
a. Your aim is to purify the_________ e.g. remove the large particles or smaller than the screen size).
b. Gradation: Classify the __________into different grades.
4. Layer: _______layer
5. Screen mesh aperture: ____________mm



Company introduction

Xinxiang Hengyu Machinery Equipment Co., Ltd. is a mechanical design, manufacturing, sales company. She is specialized in dealing with a wide range of screening and conveying system for solid, powder and liquid in various industries. We have gotten ISO9001:2008, ISO and CE certifications. We

also do OEM and ODM.
