HY-1020 Professional Linear Vibrating Screen for Compost

HY-1020 Professional Linear Vibrating Screen for Compost photo-1
US$ 2,000 - 4,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Linear
Application:
Chemicals
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Linear
Application Chemicals
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1020
Voltage 220V,380V, or as your request
Power(W) 2x0.55kw
Dimension(L*W*H) 2350x1390x1720mm
Weight 890kg
Certification ISO9001: 2008, CE, BV
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

HY-1020 professional linear vibrating screen for compost



Vibrating screen for compost

Model

HY-1020-1S

Layer

One

Power

2×0.75Kw

Vibration Frequency

960r/min

Sieving Diameter(width×length):

1000×2000(mm)

Vibration amplitude

3-4.5mm

Weight

810kg

Feeding Granularity

0.074-10mm

Screen Mesh

Stainless steel 304

Output

Depand on your material and mesh size

Cleaning system

Rubber ball

Voltage

220V,380V,415V or as your requirement

Material

Contact parts with the material of stainless steel

Certification

ISO9001:2008, CE, BV

OEM

Accept





Product package details

Dimension(L*W*H)

2230x1390x1640mm

Wooden packaging size

  2330x1490x1740mm

Net weight

810kg

Gross Weight

 910kg

Mini Order Quality





Product payment terms

Trade Terms

 FOB, CIF or CFR

Payment way

T/T, L/C, Western Union, Escrow

Delivery Detail

Within 5 working days after receipt of

 your first deposit

Transportation

Sea  air  rail  transport





Product warranty

Warranty Term

12 Months

Service  terms

1.Providing free quick-wear parts

2.Replacing main parts with warranty

3.For big order, engineers available to service machinery overseas





Factory introduction

1.Direct manufacture, no price link.

2.Have been engaged in export for four years.Quality and processing

technology are in accordance with the export standards

3.Our company have been focused on screening and conveying industry

for eight years. Our factory covers an area of 21,000 square meters also

has standardized production workshop, independent research and

development capabilities.

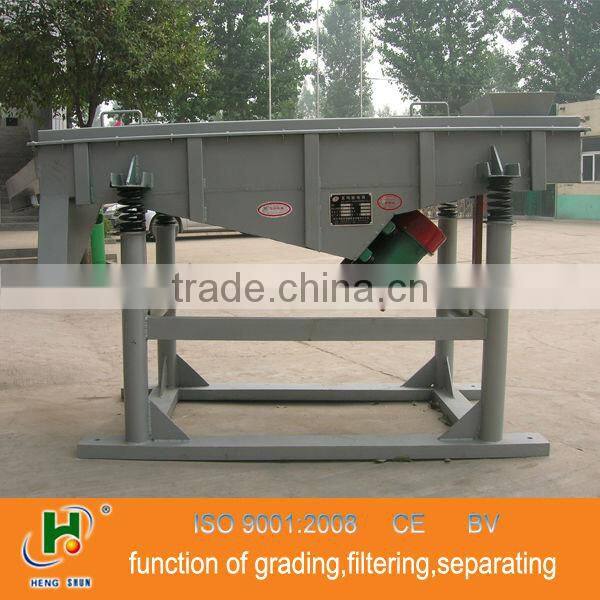

The vibrating screen for compost pictures show

HY-1020 professional linear vibrating screen for compost

HY-1020 professional linear vibrating screen for compost

HY-1020 professional linear vibrating screen for compost

HY-1020 professional linear vibrating screen for compost

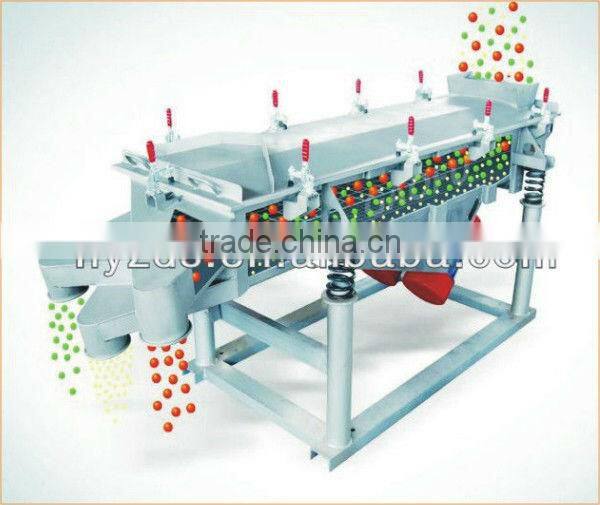

The features of  vibrating screen for compost

 HY-1020 professional linear vibrating screen for compost

1. Greater accuracy - Full material flow on multi-deck gives accurate grading on all meshes

2. With the structure of sealing completely. The noise is low and no powder pollution

3. With the professional vibrating motor as the vibrating power source, it ensures the stable power.

4. High sieving efficiency, high utilization ratio of screen, with bouncing balls set under the screen which eliminates mesh blockage, increasing precision of sieving.

5. Fully enclosed structure avoids dust overflow that reaching the request of sanitation.

6. It is applicable for sizing particles and screening powder and liquid

7. Up to 6 screen surfaces can be mounted on one unit that providing 7 predetermined fractions in a single operation.



What can vibrating screen for compost  do for you ?

 HY-1020 professional linear vibrating screen for compost

HY-1020 professional linear vibrating screen for compost

1. Grading
The Multi—layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Remove the impurity
The linear vibration machine can quickly separate a few oversize or undersized particles from a quantity of materials.



Our vibrating screen for compost  application in

HY-1020 professional linear vibrating screen for compost

HY-1020 professional linear vibrating screen for compost

1. Chemical industry: resin pigment, medicine, grease, fire-extinguishing agent, rubber and plastic.

2. Grinding material, glass, ceramic industry: silica sand, alumina, grinding material, glass powder, refractory material.

3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, bean milk, yeasts must, pollen, food additive.

4. Paper-making industry: whitish soil slush, black and white fluid, filling fluid, waste fluid and paper-making fluid.

5. Iron-refining and mine industry: quartz sand, ore, titanium oxide, zinc oxide



The certifications of  vibrating screen for compost

 HY-1020 professional linear vibrating screen for compost

HY-1020 professional linear vibrating screen for compost



The service of vibrating screen for compost

 HY-1020 professional linear vibrating screen for compost

HY-1020 professional linear vibrating screen for compost



If you are interested in our vibrating screen for compost,  pls email or call

Tel:86-373-3807161   Fax:86-373-3807161 Skype:daniel.liu223

Our team is ready for your needs, please contact us.
