Paper Separation Linear Vibrator Screen
Linear vibrator screen use vibration motor as vibration source, the materials is jumped and moved in the straight at the same time. The materials are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates. It is suitable for low consuming, high output, and simple structure, easily maintain all-closed structure, no powder dispersed, automobile discharged.
Working principal
Hengyu brand linear separator for wooden flour use vibration motor as vibration source, the materials
is rosed and moved in the straight at the same time.
The materials are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates. It is suitable for low consuming, high output, and simple structure, easily maintain all closed structure, no powder dispersed, automobile
discharged.
Features
1) Continuous production, single or multi-layer auto-classification filtering
2) Good sealing performance, no dust overflow.
3) Energy-saving and low noise with vibration motor.
4) Start fast and stop smoothly
5) Simple installation, easy operation and maintenance
6) High utilization rate of screen, large unit area, not easy to block, but easy replacement of
screen.
7) High-precision screening reach to 96% or above, large processing capacity.
Technical parameters
Model | HY-520 | HY-525 | HY-1020 | HY-1025 | HY-1030 |
Appearance Dimension | 500×2000 | 500×2500 | 1000×2000 | 1000×2500 | 1000×3000 |
Material Granularity | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 |
Angle | 1°-7° | 1°-7° | 1°-7° | 1°-7° | 1°-7° |
Amplitude | 3-5 | 3-5 | 3-5 | 3-5 | 3-5 |
Layer | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 |
Power | 2× (0.37-0.75) | 2×(0.37-0.75) | 2× (0.55-1.1) | 2× (0.55-1.1) | 2× (0.55-1.1) |
Note:
1. Each type can be 1-5 layers, and the mesh size is from 0.1 to 30mm.
2. Material: Q235A / SUS 304 / 316L
3. Voltage: 380V /400V, Frequency: 50 / 60 HZ.
4. If the specification or appearance has changed, we will not notify additionally.

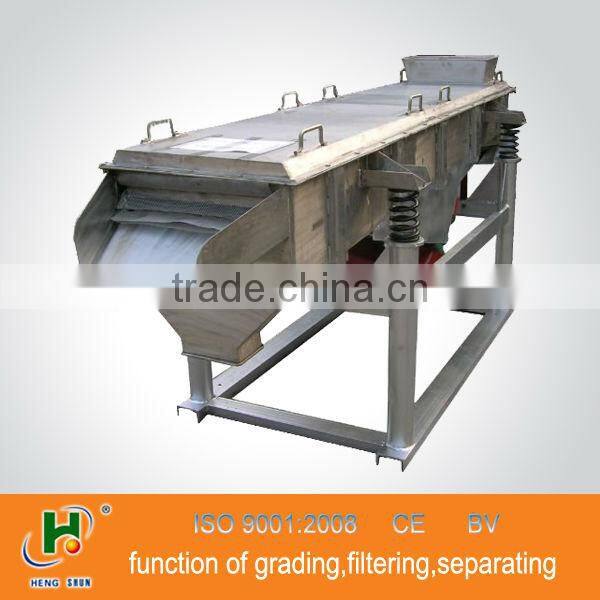

Machine pictures show:
Quality assurance
Quality assurance is the process of verifying or determining whether products or services meet or exceed customer expectations. We use the following methods to ensure the quality of our products:
a.Experienced staff
b.Quality control department
c.Third-party supervision
Our products passed the ISO9001:2008 and CE certification, please check it as follows:
Good service
If you are interested in our products, please feel free contact me!
