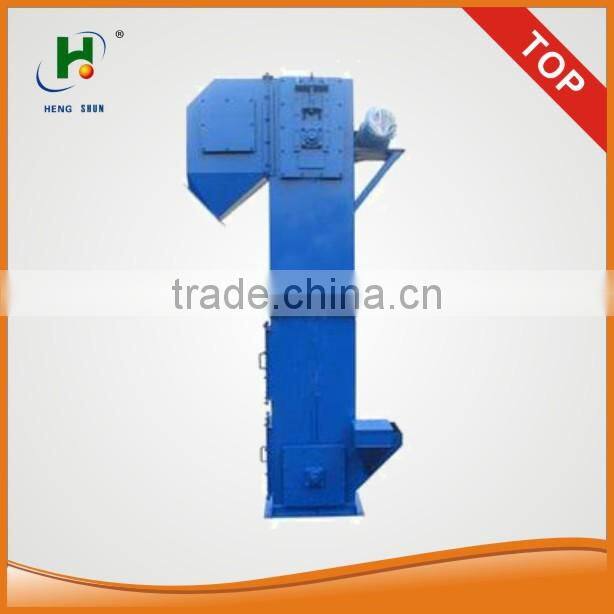

sand backet

FOB Price

USD $999 - $9,999 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai Qingdao or request
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Bucket Conveyor	Material:	Other, coal belt type bucket elevator
Material Feature:	Heat Resistant	Structure:	Conveyor System	Load Capacity:	vary from diffrent models
Place of Origin:	Henan, China	Brand Name:	HENG SHUN	Model Number:	TD
Voltage:	220V,380,415V	Power(W):	3-22kw	Dimension(LWH):	vary from different models, Refer to the technical parameter
Certification:	ISO,CE	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Cement chain bucket elevator parts sand backet

Related products

The bucket elevator with forged central chain is configured for the transport of all types of coarse, hot or abrasive bulk materials. It also achieves conveying capacities of more than 600t/h at axis distances of more than 60m and in continuous 24/7 operation.

We special in manufacturing quality bucket elevator price widely used in various processes of the cement industry. These assist in raising the materials up to 30 to 40 meters. Built using top grade material and uniquely designed to increase durability and level of performance, these chains are precision engineered. The bucket elevator & chain conveyor can be either of belt type or chain type.

One of the most efficient ways to grain bucket elevator materials vertically is with a bucket elevator. A Bucket Elevator consists of a series of buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the unit. The buckets are located in a casing or housing to contain the material. Bulk materials are loaded into each bucket as the bucket moves past an inlet point. Hengyu manufactures a wide variety of bucket elevators based on the characteristics of the bulk material and the process requirements.

For conveying capacities of over 1300t/h HENGYU has developed the z type bucket elevator. Axis distances of more than 60m are also possible. The bucket elevator is a combination of two standard bucket elevators with central chain. Both bucket strands run over the same driveshaft, which is mounted in a pedestal bearing and driven by twin drives.

A.Features

1. Safe belt-joining by clamping in a cast compound box
2. Friction linings of the drive drums exchangeable without opening of the belt
3. Ranges from low to very high conveying capacities
4. Lift heights over 170m
5. Conveying capacities up to 1,740m3/h

6. food grade small bucket elevator chain

B.Technial parameters

Type	TD160				TD250				TD315				TD400
hopper type	Q	H	Zd	Sd	Q	H	Zd	Sd	Q	H	Zd	Sd	Q	H	Zd	Sd
throughput(m3)	5	10	10	16	12	22	23	35	17	30	25	40	24	46	41	66
hopper width(mm)	160				250				315				400
hopper capacity(L)	1	1	1	2	1	2	3	5	2	4	4	6	3	6	5.9	9
hopper distance(mm)	280		350		360		450		400		500		480		560
chain width(mm)	200				300				400				500
hopper speed(m/s)	1.4				1.6				1.6				1.8
max block of material(mm)	25				35				45				55

C. Working principle

food grade small bucket elevator chain is composed of machine head, main frame,Maintenance cylinder,Ventilators,

dustpan,dustpan belt and machine base.
The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.

D.Work for

The food grade small bucket elevator chain has the advantages of big conveying capacity, high hoisting height,stable and reliable running and long service life. The machine is applicable for the crushed materials, and block materials, such as coal, cement, block,sand, clay and ore. The bucket elevator is allowed to convey materials with high temperature when armed with special circle chain structure.

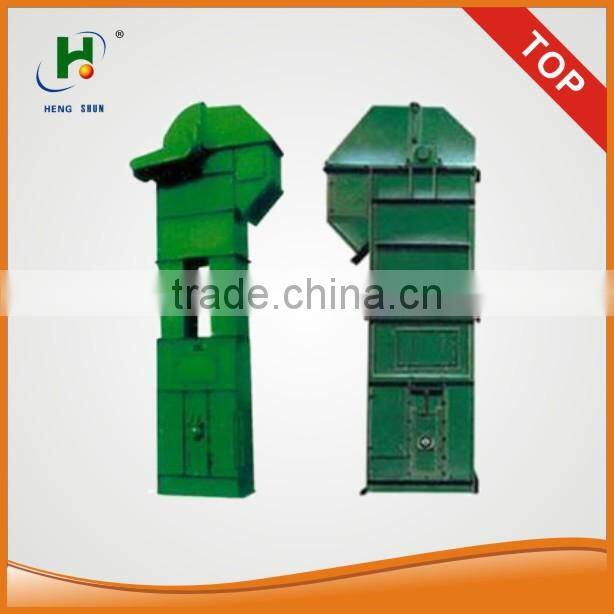

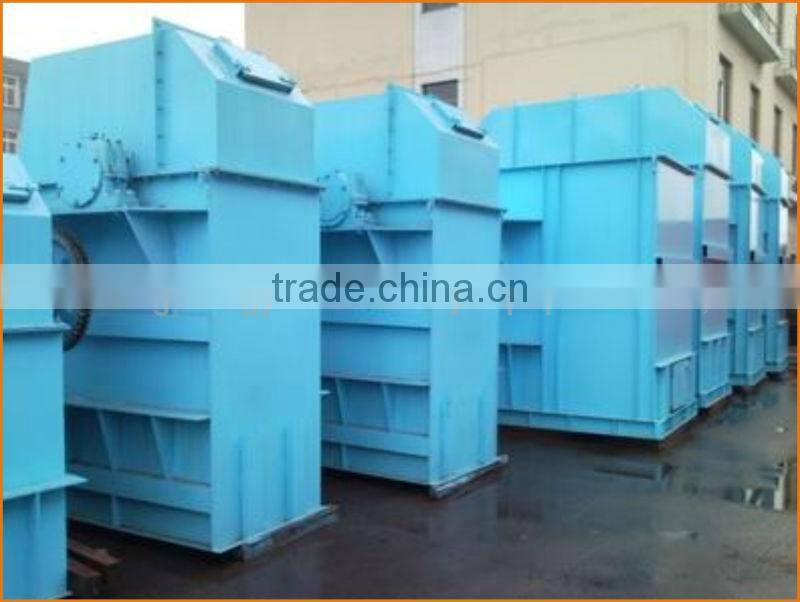

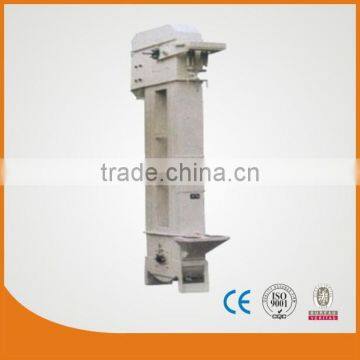

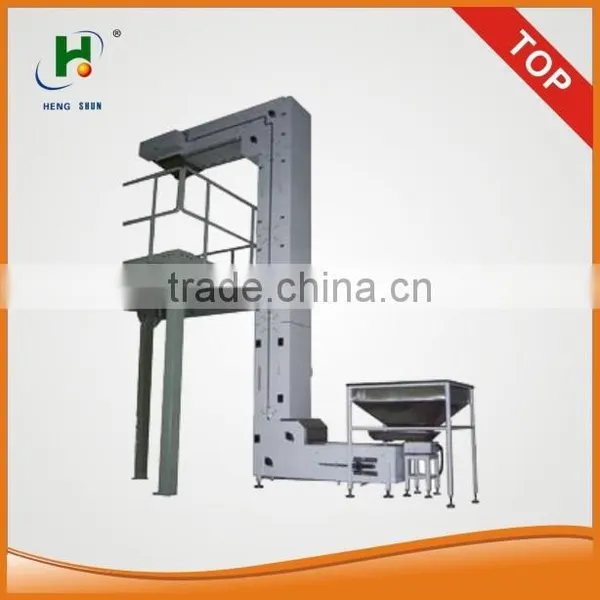

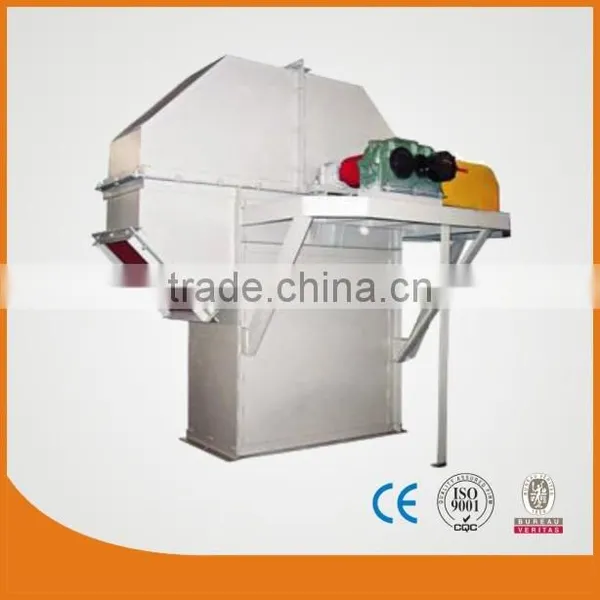

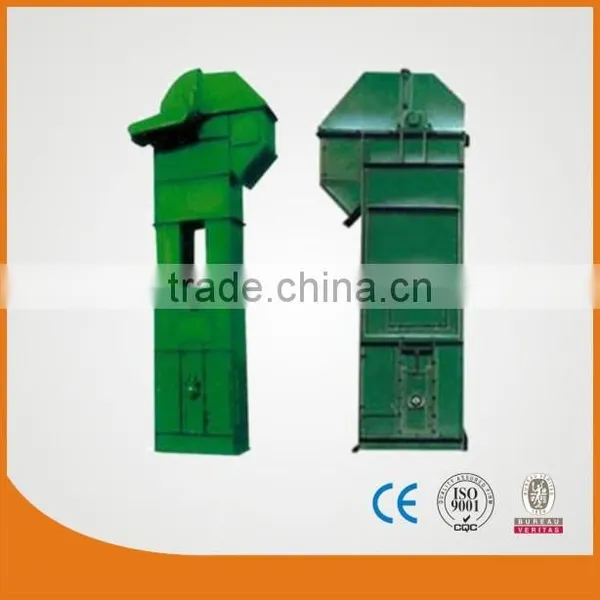

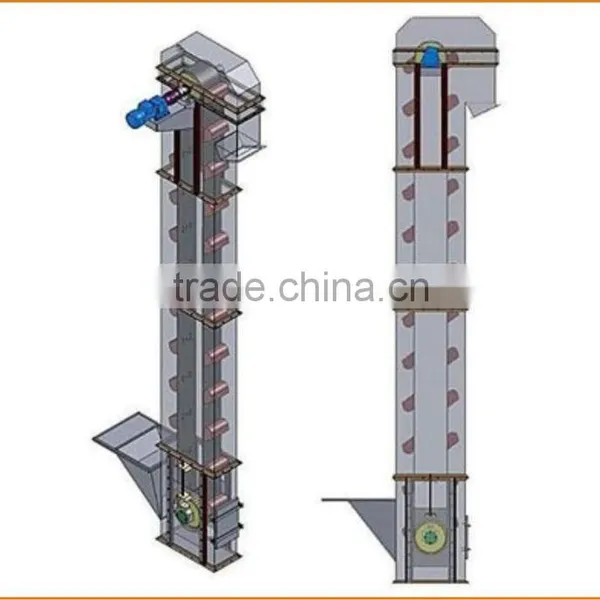

E.Photos of food grade small bucket elevator chain

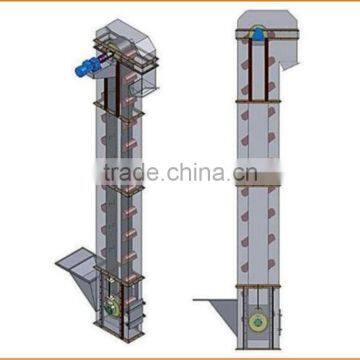

how does food grade small bucket elevator chain work?

parts of small bucket elevator

F.Sales service

Your special customizations are accepted, and please contact us now to find out what can we do for you.
