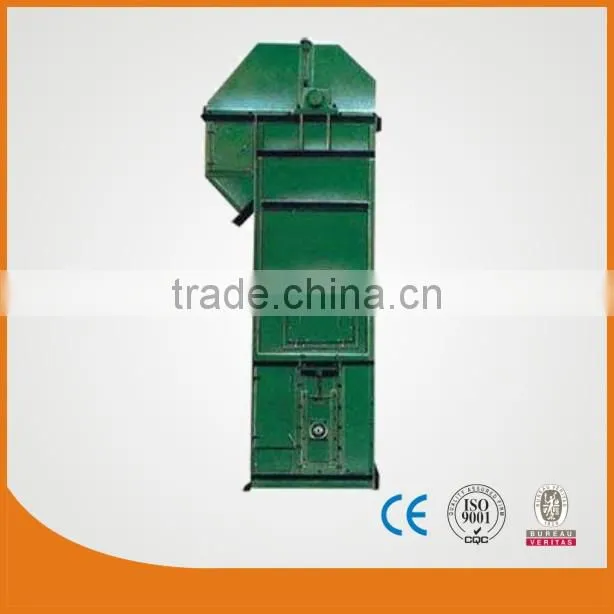

Help CenterChina Industrial Sand Elevator Buckets Manufacturer
Related Products
-
China z Type Bucket Elevator for Construction Sand ManufacturerUS$ 999 - 9,999MOQ: 1 Set -
Small Type Bucket Elevator for Partical With CEUS$ 999 - 9,999MOQ: 1 Set
-
China Mining Ore Bucket Elevator Manufacturer With CEUS$ 999 - 9,999MOQ: 1 Set
-
Cream of Tartar Bucket ElevatorUS$ 999 - 9,999MOQ: 1 Set
-
Nepheline Syenite Bucket ElevatorUS$ 999 - 9,999MOQ: 1 Set
Specifications
industrial sand elevator buckets manufacturer1.Large lifting capacity
2.Small driving power
3.passed ISO,CE,BV
| industrial sand elevator buckets manufacturer |
| Summary |
We mainly provide the listed bucket type elevators |
End product |
|
|
|
|
|
Diagrammatic sketch |
|
| Introduction |
| industrial sand elevator buckets manufacturer as vertical conveyance means with centrifugal discharge of buckets. They are used for conveyance of grain and similar fine and dry materials in vertical upward direction. They are not suitable for materials characterized by adhesion, bingling or corrosive effects on metal machine parts. Conveyed material comes through an inlet extender into buckets or it is scooped from the elevator foot by them and carried up by means of a bucket conveyor belt where it is thrown out into an outlet hopper. The iron ore bucket elevators are made as one-self-supporting conveyors. |
| Features of industrial sand elevator buckets manufacturer |
|
1. Completely enclosed for dust and weather-tight operation. 6. iron ore bucket elevator/bucket type elevator/elevator bucket (rice milling) |
Working principle |
|
industrial sand elevator buckets manufacturer is composed of machine head, main frame,Maintenance cylinder,Ventilators, dustpan,dustpan belt and machine base. The materials are fed into the machine from the bottom and discharged from the top. |
Technical parameters |
Model |
Capacity |
The maximum percentage of the material block |
||||
(m3/h) |
10 |
25 |
50 |
75 |
100 |
|
NE15 |
15 |
65 |
50 |
40 |
30 |
25 |
NE30 |
32 |
60 |
75 |
58 |
47 |
40 |
NE50 |
60 |
90 |
75 |
58 |
47 |
40 |
NE100 |
110 |
130 |
105 |
80 |
65 |
55 |
NE150 |
170 |
130 |
105 |
80 |
65 |
55 |
NE200 |
210 |
170 |
135 |
100 |
85 |
70 |
NE300 |
320 |
170 |
135 |
100 |
85 |
70 |
NE400 |
380 |
205 |
165 |
125 |
105 |
90 |
NE500 |
470 |
240 |
190 |
145 |
120 |
100 |
NE600 |
600 |
240 |
190 |
145 |
120 |
100 |
NE800 |
800 |
275 |
220 |
165 |
135 |
110 |
| Service Promise |
|
1.One year warranty. |
Pictures show |
|
parts of industrial sand elevator buckets manufacturer
structure of industrial sand elevator buckets manufacturer
industrial sand elevator buckets manufacturer practice
|
For right model! |
|
a)what's the materials did you want to lift/transport? b)the size of the material |
Contact us! |
Write an e-mail to tell us your detailed requirements now, suitable bucket elevator for limestone will be chosen for you! |
