China bucket elevator for distributor manufacture

We mainly provide the listed bucket type elevators
1. TD Series (belt type)
2. TH Series (ring chain type)
3. NE and TB Series (plate chain type)
4. Widely used in cement, chemical, coal, fertilizer, mining, steel industries, etc.

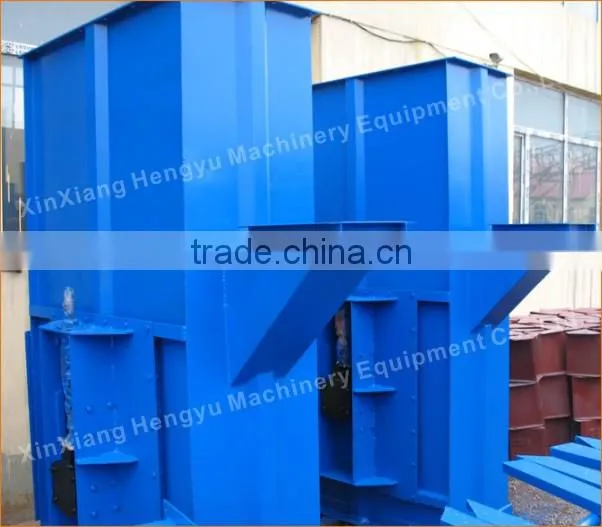

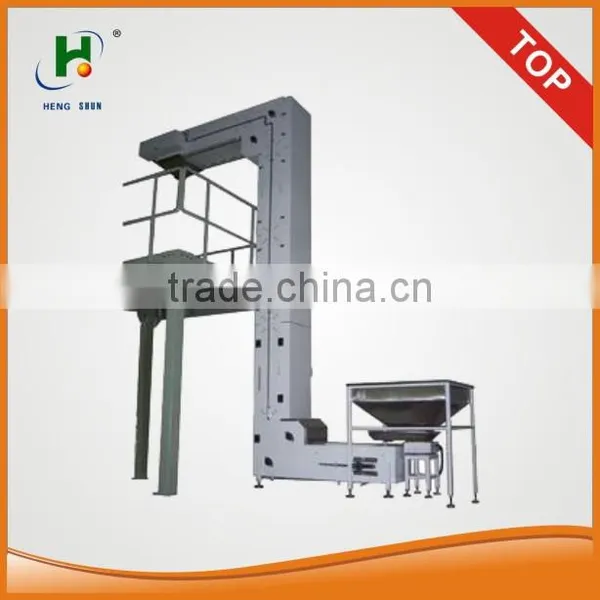

End product

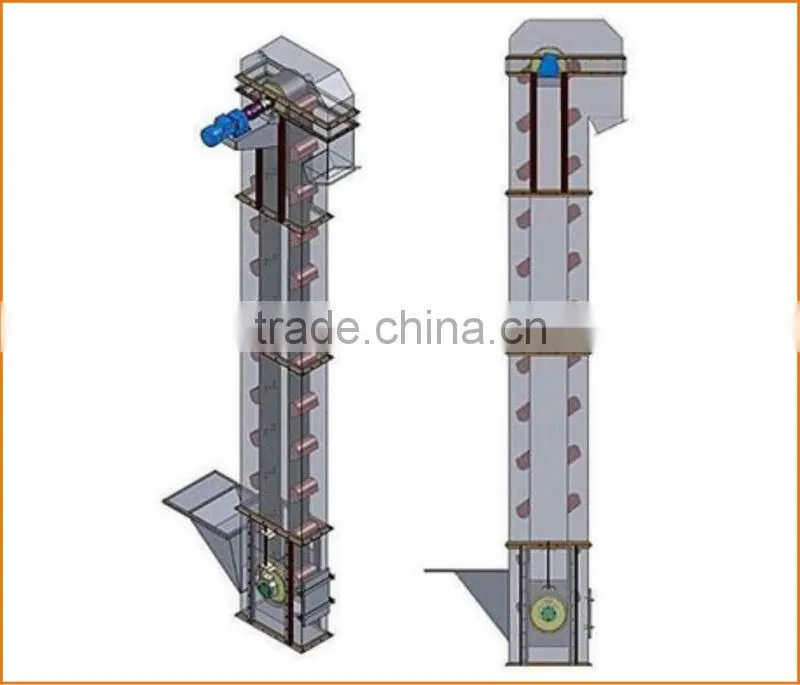

Diagrammatic sketch

1. Completely enclosed for dust and weather-tight operation.
2. Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement.
3. Good pliability , low product damage percent of only 1.
4. Many different bucket and casing sizes available for capacities up to 15,000 cubic feet per hour.
5. Clean discharge, wide temperature applications.

6. iron ore bucket elevator/bucket type elevator/elevator bucket (rice milling)

Working principle

China bucket elevator for distributor manufacturer is composed of machine head, main frame,Maintenance cylinder,Ventilators,

dustpan,dustpan belt and machine base.

The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.

Technical parameters

Model

Capacity

The maximum percentage of the material block

(m3/h)

10

25

50

75

100

NE15

15

65

50

40

30

25

NE30

32

60

75

58

47

40

NE50

60

90

75

58

47

40

NE100

110

130

105

80

65

55

NE150

170

130

105

80

65

55

NE200

210

170

135

100

85

70

NE300

320

170

135

100

85

70

NE400

380

205

165

125

105

90

NE500

470

240

190

145

120

100

NE600

600

240

190

145

120

100

NE800

800

275

220

165

135

110

1.One year warranty.
2.Providing free quick-wear part.
3.Low charge for continue maintenance when warranty is expired.
4.Exclusive engineer support at any time.
5.We can provide free training to end-users.

Pictures show

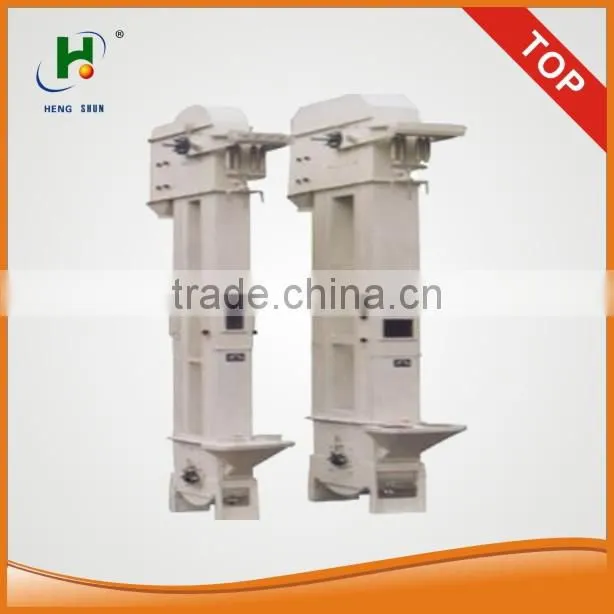

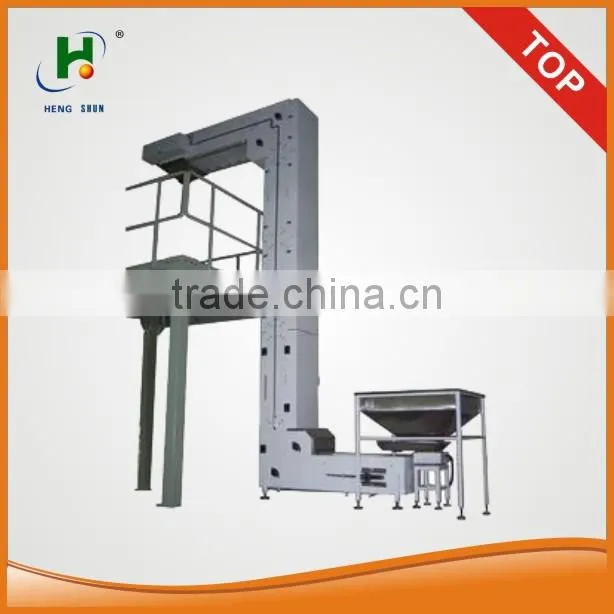

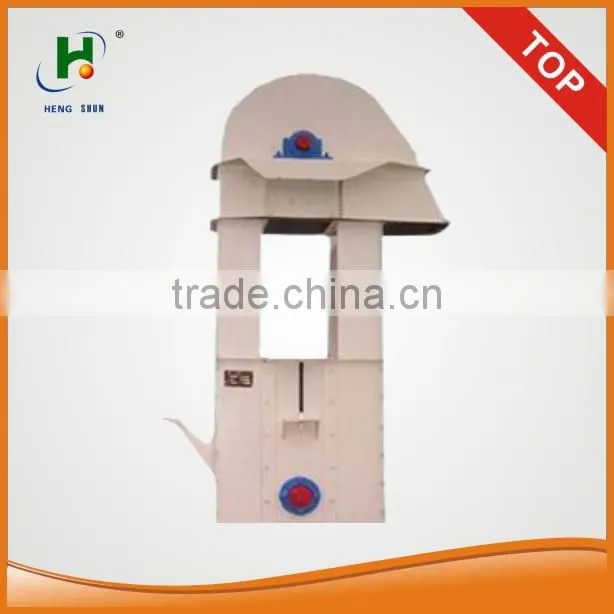

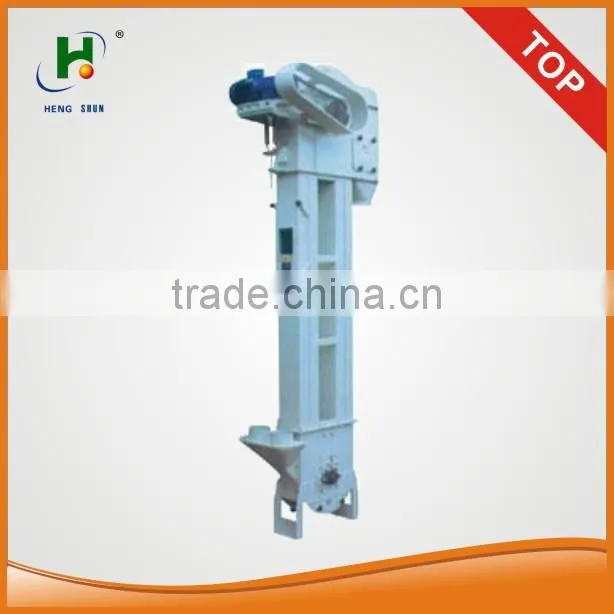

parts of China bucket elevator for distributor manufacturer

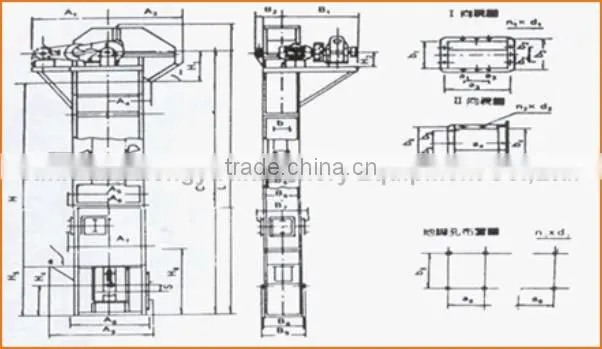

structure of China bucket elevator for distributor manufacturer

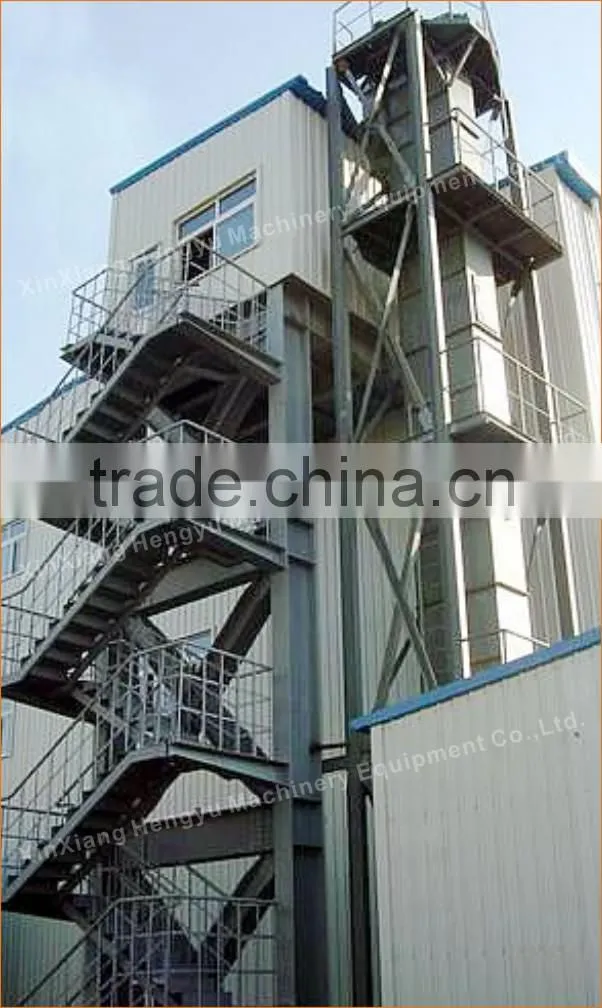

China bucket elevator for distributor manufacturer in practice

For right model!

a)what's the materials did you want to lift/transport?

b)the size of the material
c)what's the height did you want to lift?
d)the capacity you want to lift per hour?

Contact us!

Write an e-mail to tell us your detailed requirements now, suitable bucket elevator for limestone will be chosen for you!
