Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > 2013 High Quality Symons Cone Crusher for Hard Rock(UNIQUE Brand)

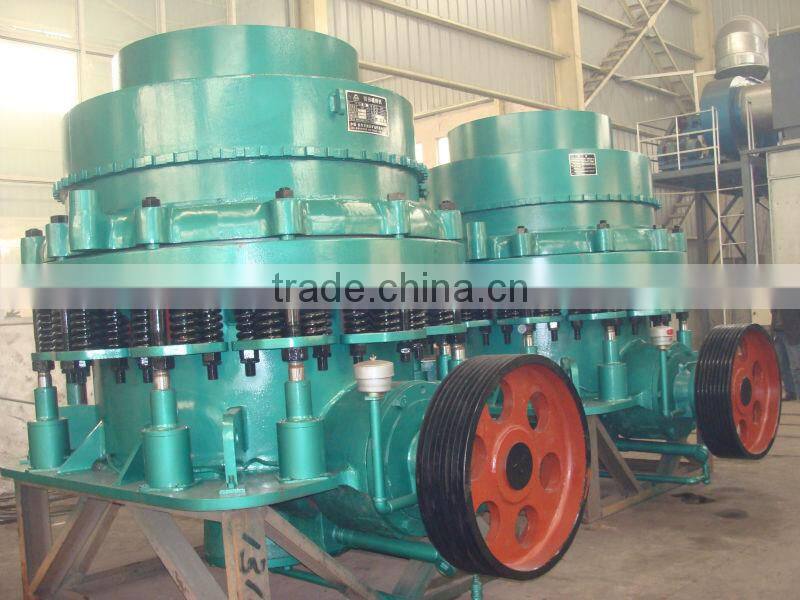

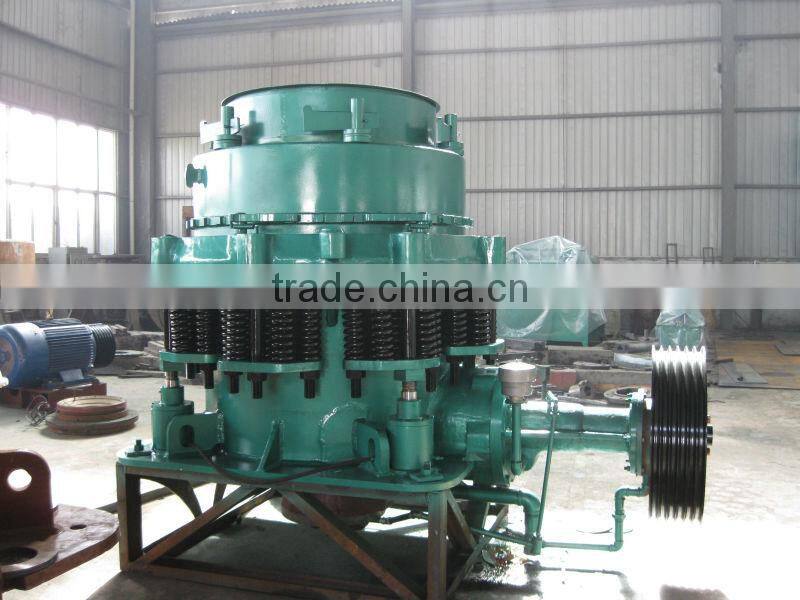

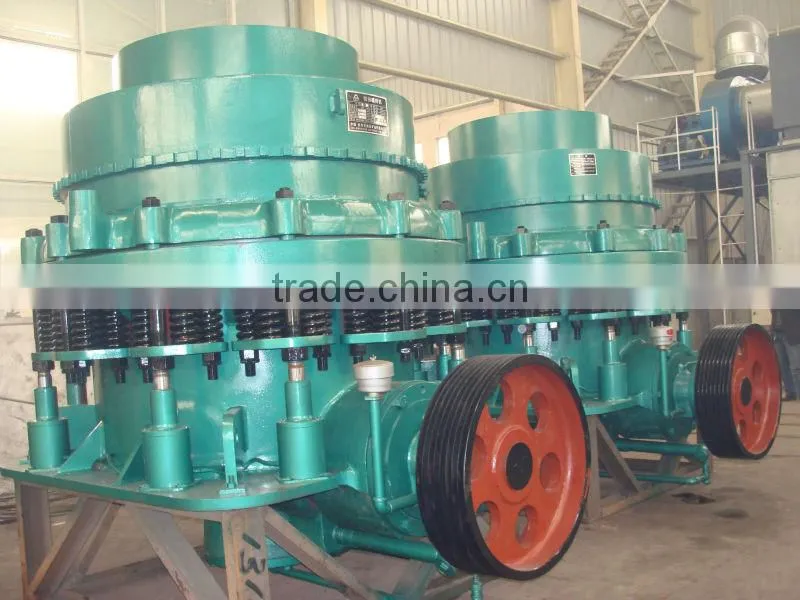

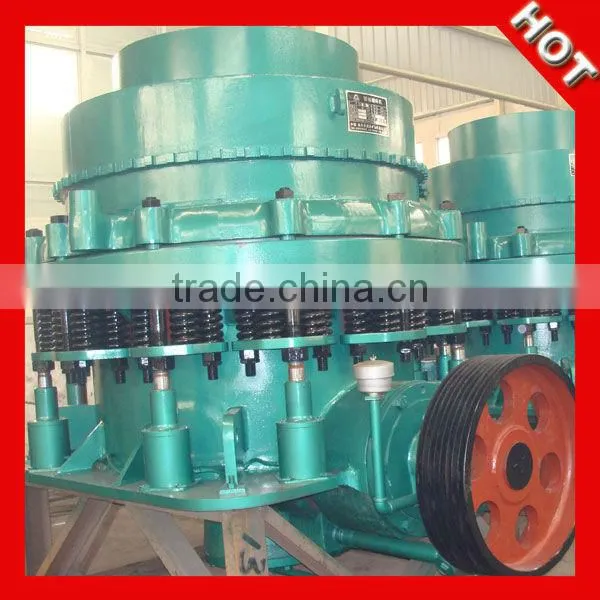

2013 High Quality Symons Cone Crusher for Hard Rock(UNIQUE Brand)

Name: 2013 High Quality Symons Cone Crusher for Hard Rock(UNIQUE Brand)
Brand: UNIQUE
SKU: 138877205
Availability: InStock

Zhengzhou Unique Industrial Equipment Co., Ltd.

US$ 30,000 - 150,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Cone Crusher

Application:

stone crushing

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Cone Crusher

Application stone crushing

Motor Type AC Motor

Power(W) 55kw

Capacity(t/h) 1-500

Place of Origin Henan, China

Brand Name UNIQUE

Model Number PSG-

Dimension(L*W*H) 2656*1636*2241mm

Weight 10000kgs

Certification ISO/CE

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Symons Cone Crusher owns advanced technology,which suitable for crushing all sorts of rocks which is hard and medium hard.

Application of Symons Cone Crusher for Pebble

Cone Crusher for Stone , a type of Symons crusher, is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. It is suitable for crushing all kinds of ores and rocks with hardness of medium or above.

Features of Symon Cone Crusher for Pebble

This crusher has the following advantages: High crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation.

Working Principle of Symon Cone Crusher for Pebble

This machine adopts grease sealing so as to prevent the watering and draining system from being blocked and avoid the defect of easy mix of water and oil. The spring safety system is the protection unit against overload, and it can keep the crushing chamber from damaged by foreign substance or iron pieces.

Types of Symon Cone Crusher for Pebble

Standard type is generally used for medium and coarse material,

Short head type is for medium and fine material.

Parameters of Symon Cone Crusher for Pebble

specifications	style	chamber type	broken cone main diameter(mm)	Adjustable Range of Output Size(mm)	mouth edge feeding size in the min recommended discharging port(mm)	max feeding size(mm)	capacity(t/h)	motor power(kw)	weight(kg)	overall dimension(L×W×H)(mm)
900	PSGB-0910	standard thin	914	9-22	102	85	45-91	75	9980	2656×1636×2241
	PSGB-0917	standard thick		13-38	1775	150	59-163
	PSGB-0918	standard thicker		25-38	178	150	118-163
	PSGB-0904	Short head thin		3-13	41	35	27-90		10530
	PSGB-0906	Short head medium		3-16	76	65	27-100
	PSGB-0907	Short head thick		6-19	102	85	59-129
1300	PSGB-1313	standard thin	1295	13-31	137	115	109-181	160	22460	2983×1866×3156
	PSGB-1321	Standard medium		16-38	210	178	132-253
	PSGB-1324	standard thick		19-51	241	205	172-349
	PSGB-1325	standard thicker		25-51	259	220	236-358
	PSGD-1306	Short head thin		3-16	64	54	36-163		22590
	PSGD-1308	Short head medium		6-16	89	76	82-163
	PSGD-1310	Short head thick		8-25	105	89	109-227
	PSGD-1313	Short head thicker		16-25	133	113	209-236
1600	PSGB-1620	standard thin	1676	16-38	209	178	181-327	220	43270	3941×2954×3771
	PSGB-1624	Standard medium		22-51	241	205	258-417
	PSGB-1626	standard thick		25-64	269	228	299-635
	PSGB-1636	standard thicker		38-64	368	313	431-630
	PSGD-1607	Short head thin		5-13	70	60	90-209		43870
	PSGD-1608	Short head medium		6-19	89	76	136-281
	PSGD-1613	Short head thick		10-25	133	113	190-336
	PSGD-1614	Short head thicker		13-25	133	113	253-336
