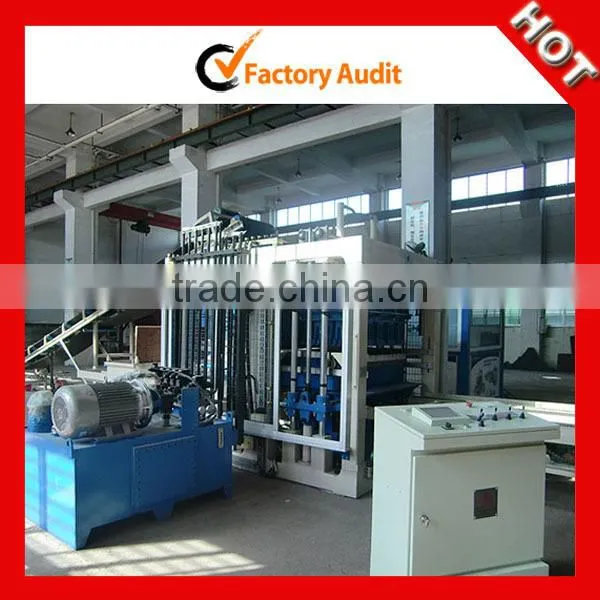

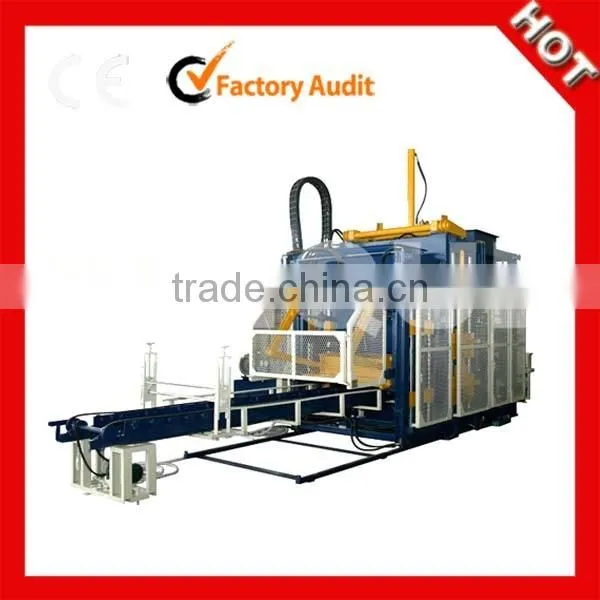

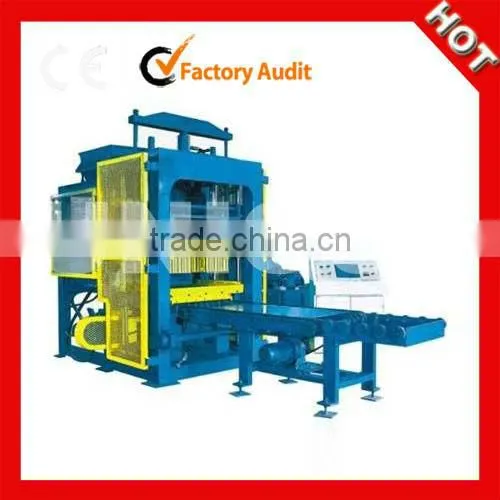

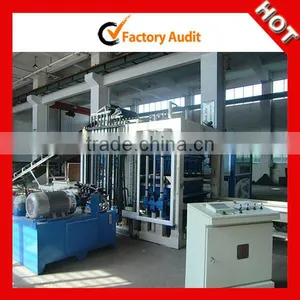

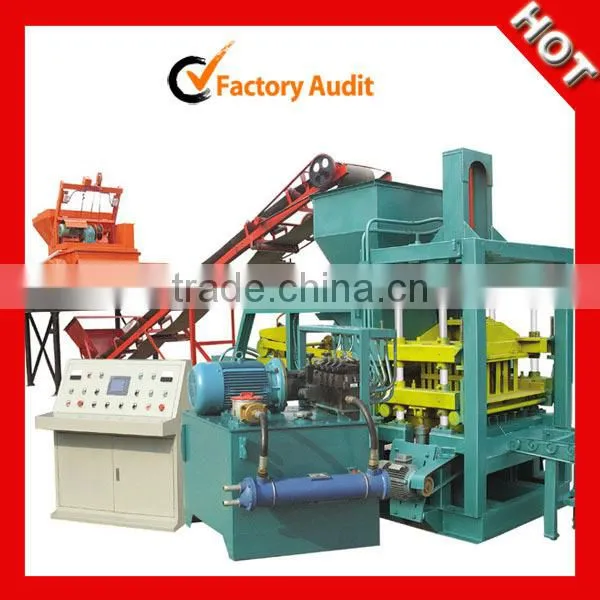

Good Quality QT10-15 Large Productivity Concrete Block Making Machine
1.The description of large productivity concrete block making machine:
“QT” in QT 10-15 is given by Chinese government that all of the Concrete Block machine must use this Series Number.
“10” in QT10-15 stands for the production quantity is 10 blocks "390×190×190mm" per mould,
“15” in QT10-15 stands for one cycle time is 15 seconds.
1. Since the moulds are changeable, the concrete equipment is able to produce different types of blocks/bricks, and this is a hydraulic machine can produces a stronger block, due to the greater pound pressure applied by the hydraulic system.
2. The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved. This machine is designed for the manufacturer with limited space, limited budget and the desire to achieve good quality, high volume of blocks, with the minimum cash outlay.

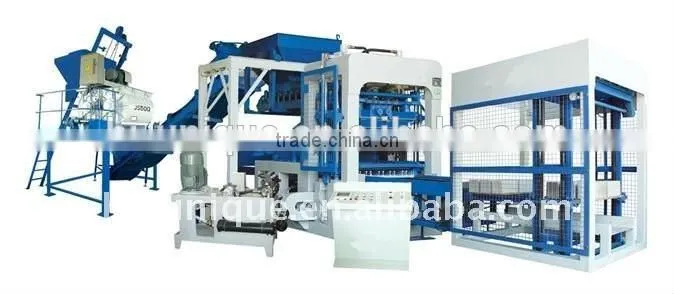

3. This machines can be equipped with an automatic elevator/skip for loading mix into hopper, agitator, an automatic pallet feeder, pallet ejector, brush for cleaning blocks and a run off conveyor (see above). It is suggested that you use a high capacity mixer of over 500 liters. A work force of 5 to 7 employees would keep this factory running at full capacity.
2. The advantages of large productivity concrete block making machine:
1. Perfect humanization Electrical control system
Siemens PLC with Visualization touch screen provide you a Child operation machine.
2. Frequency Conversional Control Technology:
It guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency, and Power saving: 30%;
3. Hydraulic System. Make in China, world Quality , and we can provide you the hydraulic motor as you request .
4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;
5. Various product scope:
It produces various color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
1. Main parameters of large productivity concrete block making machine:
Main Technical Specifications | |
Overall Dimension |
9350×2320×2950(mm) |
Rated pressure |
21MPa |
Main vibration form |
Platform vibration |
Cycle Time |
15-25 seconds |
Vibrating Frequency |
2800-4500 rolls/minute |
Motors Power |
44KW |
Pallet Size |
1100*900(mm) |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Productivity of large productivity concrete block making machine:
|
Size |
Size mm |
Cycle moulding |
QTY /Mould |
Per hour(pcs) |
|
Hollow brick
|
|
400*200*200 |
15-20s |
10 |
1800 |
|
400*150*200 |
15-20s |
12 |
2160 |
|
|
400*100*200 |
15-20s |
18 |
3240 |
|
Solid block |
|
240*115*53 |
15-17s |
52 |
9360 |
Holand brick |
|
200*100*60 |
15-17s |
36 |
6480 |
Color brick |
|
225*112.5*60
|
15-17s |
24 |
4320 |
2. The raw material of large productivity concrete block making machine:
Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Construction Machinery in China. Our main products are : Concrete Mixers, Concrete Mixing Plants, Mobile Concrete Batching Plants, Tower Cranes, Building Hoists, Concrete Mixer Truck, Concrete Pumps Block Making Machines and etc
1.Best After-sales: We will send the Engineerento the site for installation, commissioning
and training work.
2.We will send the spare parts as soon as possible when necessary, equipment repair parts
provided by the seller are original, authentic, quality goods.
3. According to your inquiry, We will reply to you in 24 hours.Call us at any time if you have
problems about our product.
1. Manufacturer Time : 10~20 working days (for the concrete batching plant) after receipt of down-payment.
2. Shipment : According to your order quantity,in general,3 × 40GP for the concrete batching plant.
3. Terms of Payment : 30% of total price as down-payment by T/T, the balanced 70% of total price shall be paid before delivery.
4. Installation : We will send our engineers to guild installation according to your requirement
