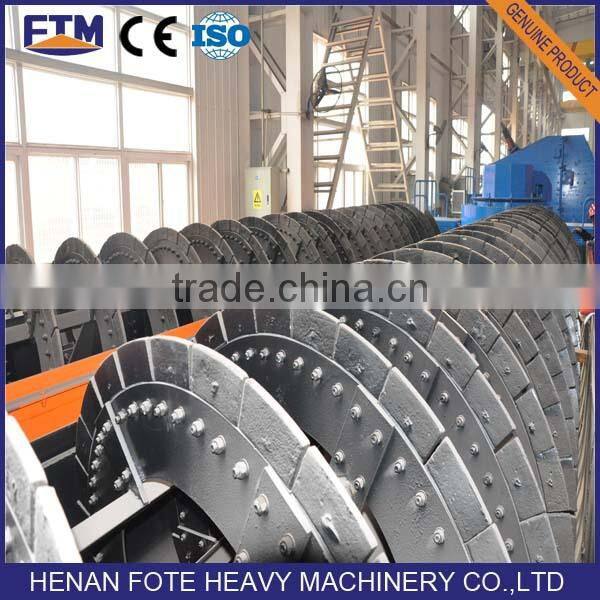

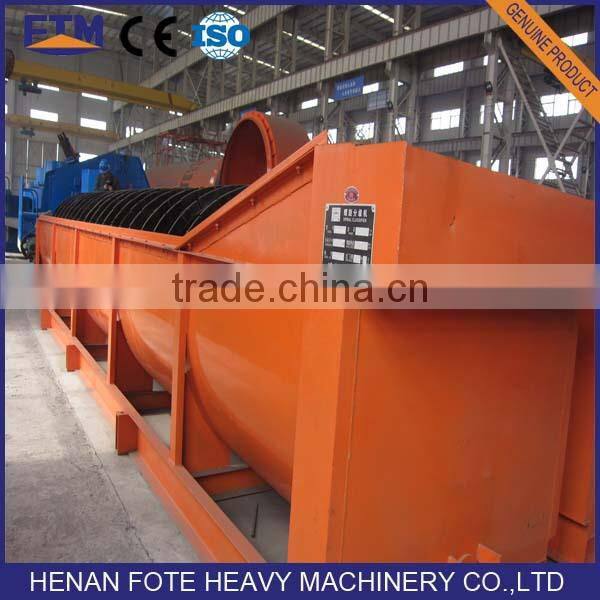

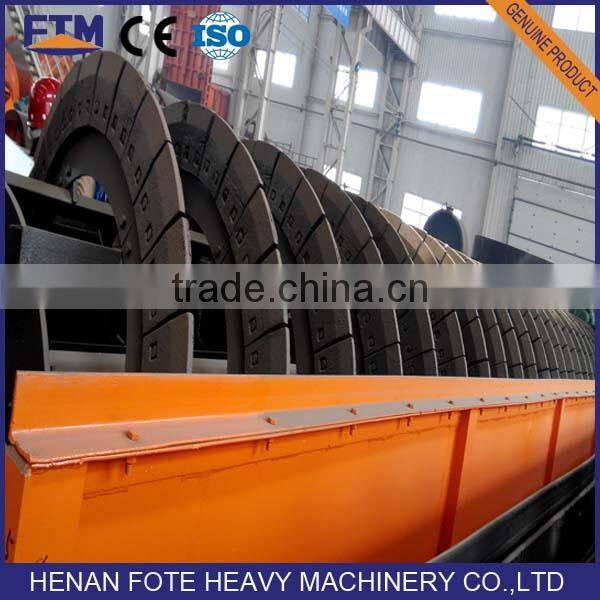

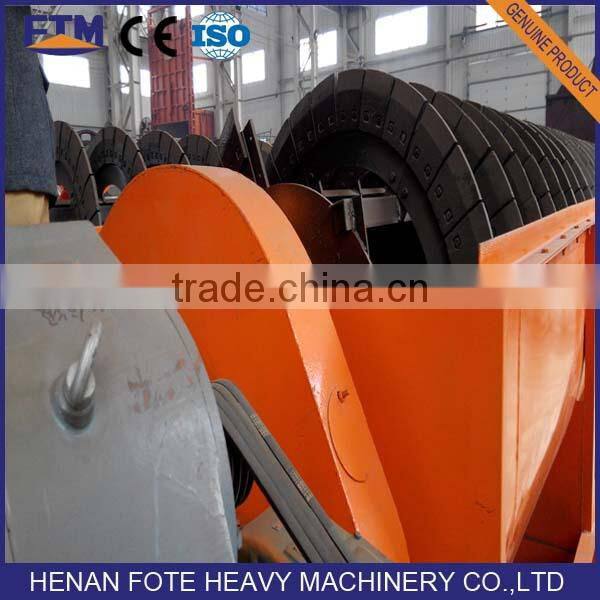

High efficiency spiral classifier for copper ore
Introduction of High efficiency spiral classifier for copper ore
Spiral classifier have four types: high weir single-spiral classifier, high weir double-spiral classifier, immersed type single-spiral classifier and immersed type double-spiral classifier.
Application of High efficiency spiral classifier for copper ore
This spiral classifier is widely used to combine with the ball grinder in a closed circulation for ore-sand separation in the ore separation plant., classify ore sand and fine silt in the gravity separation plant, classify the granularity from the pulp in the metal ore beneficiation flow and remove the slime and water in the ore washing process.

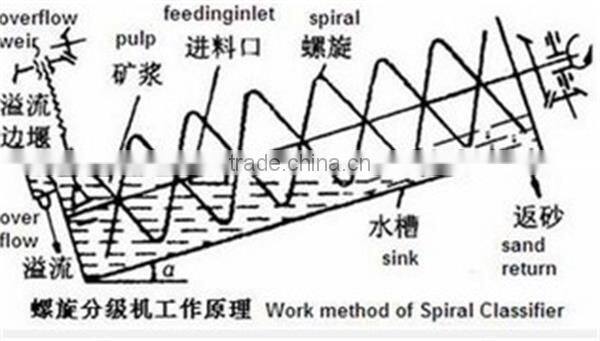

Working principle of High efficiency spiral classifier for copper ore
Spiral classifier is mainly composed of transmission system, spiral part, chute, lifting part, upper support and ore discharging valve. It is a type of classifying machine that classifies materials based the principle that the solid particles with different sizes and proportions have different falling speed in the liquid, and fine ore particles float in the water and coarse ore particles sink to the bottom of the chute and the coarse ore particles are pushed by the spiral to the upper part and discharged. This machine is able to filter the powdery particle crushed by the grinding mill and whirl the coarse particles with the spiral to the feeding mouth of the grinding mill and discharge the filtered fine particles.
Features and advantages of High efficiency spiral classifier for copper ore
1.Simple structure, reliable running and easy operation.
2. It mechanically classifies through the mechanism of different sedimentation speed of solid particle in liquid due to different size and different specific gravity.
3. It can classify the ground material powder from the grinder, spiral the coarse grain into material inlet of grinder through the spiral chip, and discharge the classified fine grain from overflow surface.
4. Its base is made from channel steel, and its body is welded from steel plate.
5. The lower support of spiral bearing is of engine-bearing structure of good wear-resistance and durability
6. The lifting device is of electric and manual mode.
Technical parameters of High efficiency spiral classifier for copper ore
Company Profile
Henan Fote Heavy Machinery Co., Ltd covers an area of 100,000 square meters which includes 60,000 square meters of heavy duty workshops. We have more than 200 sets of large and medium sized metal processing equipments. The Maximum lifting capacity is 300 tons.
Our service
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export.
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
