Specifications
1. Low energy consumption high cost performance ratio2. High dressing efficiency
Product introduction
6S Shaking Table are designed to wet gravity-based separation of minerals and other granular materials. It is effective in processing precious and base metal, rare metal and non-metallic minerals.
Application
Shaking table is a gravity dressing machine used for separating fine particles such as tin, tungsten, gold and silver, lead, zinc, tantalum, niobium, iron, manganese, titanium, ferrotitanium and coal.
Construction of shaking table
Head Motion: The head motion is of rugged construction and requires minimum maintenance.
Decks: The deck is built with fabricated steel frame, so it is easy to clean.
Feed and Water Box: A wooden feed distributing box with hopper and a long water box.
Base: A choice of ordinary type, groove steel support or big channel steel support is available.
Features and advantages
1. Low energy consumption high cost performance ratio
2. High dressing efficiency and simple operation
Technical parameters
Name |
Unit |
Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
Dimensions |
Length |
MM |
4450 |
4450 |
4450 |
Driving part width |
MM |
1855 |
1855 |
1855 |
|
Concentrate part width |
MM |
1546 |
1546 |
1546 |
|
Max.feeding size |
MM |
2 |
0.5 |
0.15 |
|
Feeding amount |
T/d |
30-60 |
10-20 |
15-25 |
|
Feeding thickness |
% |
25-30 |
20-25 |
15-25 |
|
Journey |
MM |
16-22 |
11-16 |
8-16 |
|
Frequency |
F |
15-48 |
48-53 |
50-57 |
|
Water quantity |
T/d |
80-150 |
30-60 |
10-17 |
|
Horizontal obliquity |
Degree |
2.5-4.5 |
1.5-3.5 |
1-2 |
|
Portrait obliquity |
% |
1.4 |
0.92 |
---- |
|
Table board corner |
Degree |
32-42 |
40 |
42 |
|
Concentrating square |
---- |
7.6 |
7.6 |
7.6 |
|
Table board length ratio |
---- |
2.6 |
2.6 |
2.6 |
|
Motor power |
KW |
1.1 |
1.1 |
1.1 |
|

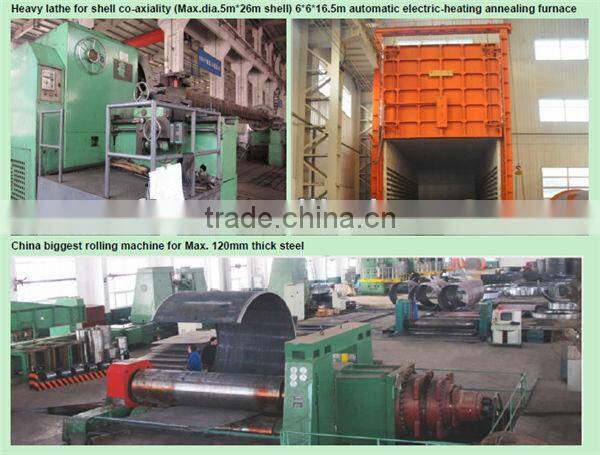

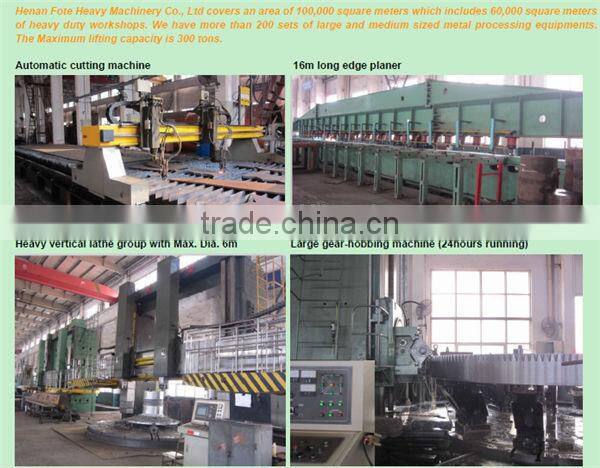

Production line
Our company has a long history in the production of concentrator table, Our development of shaking table are based on customers’ jobsites, thus greatly improving the processing capacity, returning rate and concentration ratio of the concentrator table.
FAQ
1.Question: how about your service after sales?
Answer: we can provide 1 year warranty , and provide a full life service.
2.How about the price, would you provide a better price?
Answer: we are direct manufacturer, so we are able to provide the lowest price than the market price, and we have a policy that “ For saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
