Specifications
silver refining flotation cell plant1. good quality
2. competitive price
3. easy to operate
4. simple structure
Hot sale silver refining flotation cell plant
Introduction
Flotation cell machine is applicable for the extraction of metals like gold, argent, iron, lead, zinc, molybdenum, nickel and aluminum and the separation of ferrous metals and non-metals. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral absorbs on bubbles, floats on the surface of slurry and then is scraped out, other minerals still stay.
Working principles of flotation cell separator

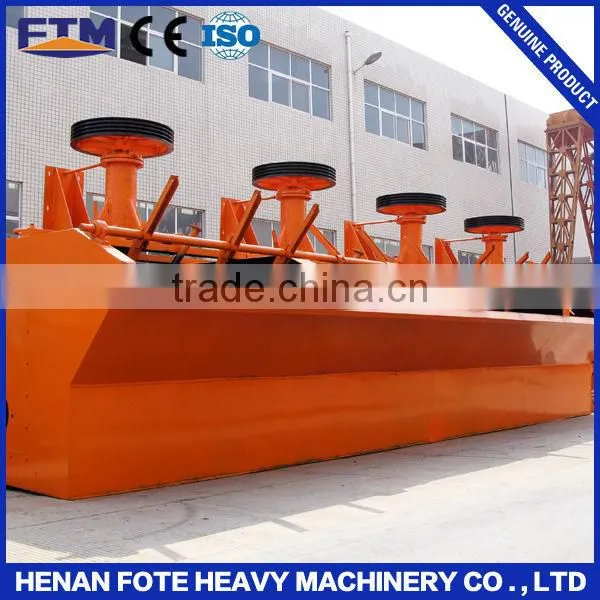

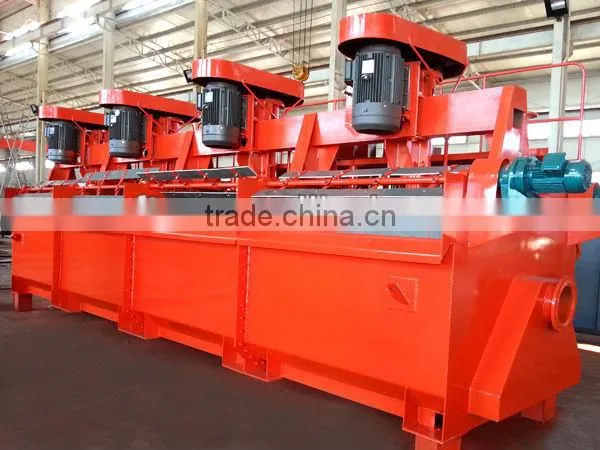

Flotation cell machine is mainly composed of pulp chute, mixing device, air charging system, mineralized bubble discharging device and electro motor.
When the flotation cell machine works
1) The impeller of the flotation cells is driven by the spinning engine triangle to form the centrifugal formation and produce the negative pressure.
2) On one hand, large of inhaled air is mixed with the pulp;
3) On the other hand, the stirred pulp is mixed with the drug to fine the bubble, to make a certain mineral bond on the bubble. Adjust the height of the disc to control the liquid surface and the useful bubble will be scraped out.
Advantages
1) Excellent air-absorption capacity;
2) Low energy consumption;
3) Optimized design, the mineral slurry loops reasonably in cells without any auxiliary equipment;
4) Self-control functions;
5) Special designed impeller can produce upper and lower circulation of mineral slurry respectively.
Technical data
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
SF8 |
|
Trough capacity(m³) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
8 |
|
Impeller diameter(mm) |
300 |
350 |
450 |
550 |
650 |
T60 |
|
Production capacity (m³/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
4-8 |
|
Impeller rotation speed (r/min) |
352 |
400 |
312 |
268 |
238 |
191 |
|
Motor |
Model |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
Y250M-8 |
|
|
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
Y100L-6 |
|
Power (kw) |
1.5 |
3 |
5.5 |
11 |
15 |
30 |
|
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
1.5 |
|
Dimensions (mm) |
700×700×750 |
900×820×950 |
1100×1100×1100 |
1700×1600×1150 |
1850×2050×1200 |
2200×2900×1400 |
|
Single trough weight(kg) |
468 |
600 |
1373 |
2338 |
2660 |
4486 |
|
Packing and Transportation
Ways of Packing:
1. Sand blasting, coat with high quality paint;
2. Product wrap by PP-Bubble;
3. Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE;
3. We will remind you before boat arrival.

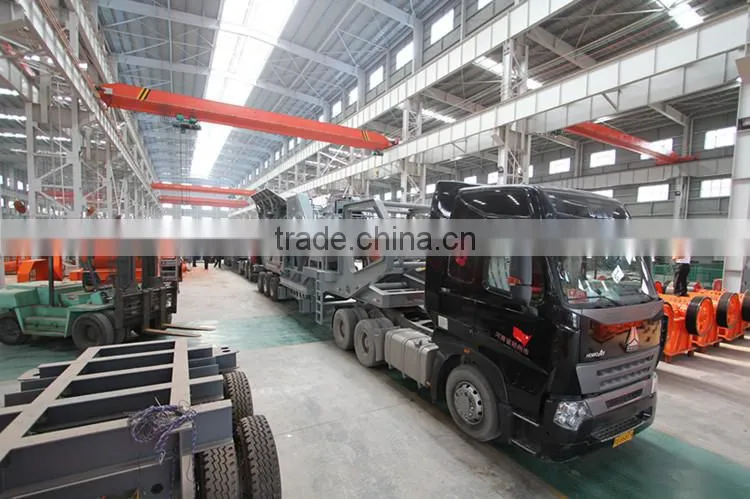

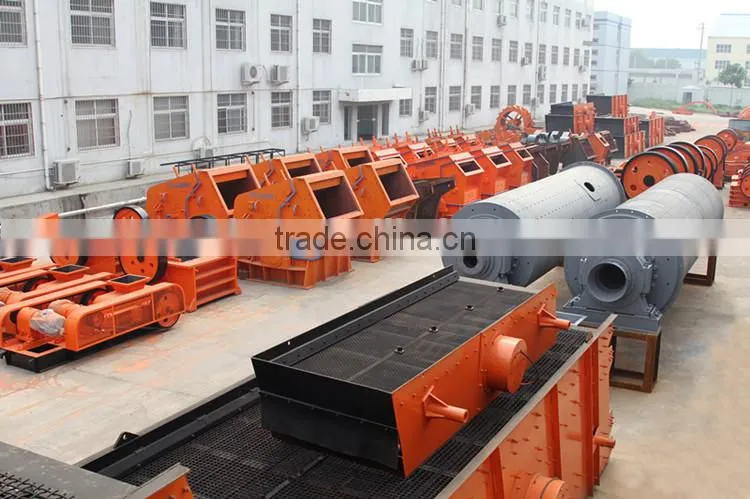

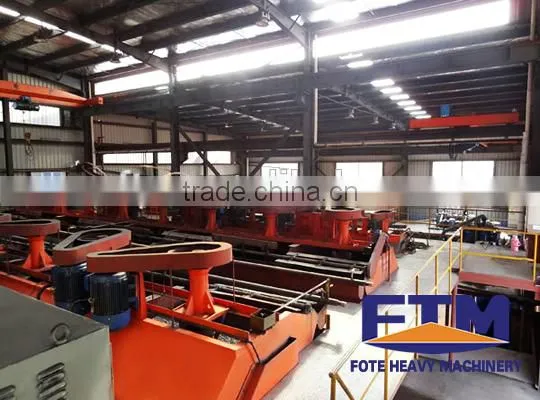

Company production capacity
Company Information
Henan Fote Machinery Co., Ltd is a large-sized company specialized in manufacturing mining machinery and general machinery. We have been engaged in machinery manufacturing for over 20 years.
