Specifications
1.Stable performance, low energy consumption2.High pellet forming rate
3.Pellet with high density
Wood Shavings Pellet Making Machine
Introduction
Pelletizing is the process of making waste materials into solid fuel. The raw mateirals can be made from any type of agro-forestry waste: groundnut shell, sugarcane bio-gases, caster shells/stalk, saw dust, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, wheat straw, palm husk, soybeans husk, rice husks, forestry wastes, wood chips and many other agro wastes.Pellet machine is used to make waste materials into pellet and particle.
Requirements for the raw materials
a. size of raw materials: powder or no longer than 1cm
b. moisture content of raw materials: 18-23%
c. raw materials can be the mixture of 2 or more than 2 kinds different materials, they must be evenly mixed.
d. no adhesive or chemicals need in the processing
Applications of the biomass fuel
1. Home heating stoves
2. Hot water boilers and the industrial boilers,
3. Biomass power plants and so on.
The technical parameters of pellet machine
Model |
Motor |
Flat die diameter |
Film hole diameter(mm) |
Grain yield |
Size (mm) |
Weight(kg) |
105 |
2.2KW |
105mm |
Φ2.5,3,4,6 |
50-80kg/h |
610*410*1000 |
38 |
120 |
2.2KW |
120mm |
Φ2.5,3,4,6 |
80-100kg/h |
560*500*1000 |
50 |
150 |
5.5KW |
150mm |
Φ2.5,3,4,6 |
150-200kg/h |
1020*450*900 |
101 |
200 |
11KW |
200mm |
φ2.5,3,4,6 |
200-300kg/h |
1140x470x970 | 113 |
250 |
15KW |
250mm |
φ2.5,3,4,6 |
300-500kg/h |
1120x500x1070 | 175 |
320 |
22KW |
320mm |
Φ2.5,3,4,6 |
800-1200kg/h |
1720*730*1490 |
610 |
Features
1. Highly efficient one step gear transmission drive ensures maximum utilization ratio of energy.
2. Full stainless steel feeder; Variable-pitch anti-arch structure; Imported frequency converter control.
3. LL stainless steel conditioner extends the conditioning and cooking time. Axial steam spraying port, improving feed cooking efficiency.
4. High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life.

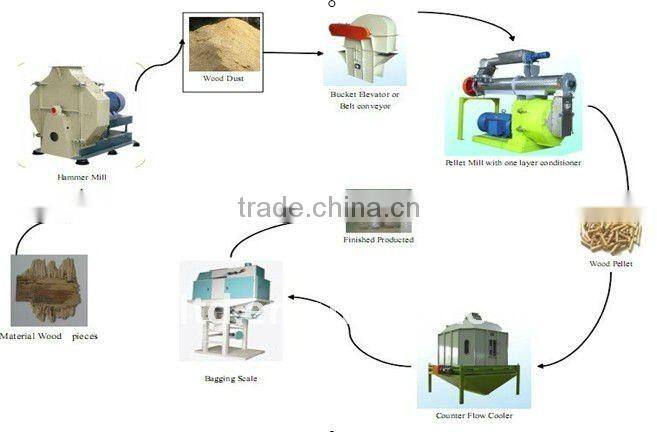

The flow chart of pellet machine
Raw Material Pulverizing System ------ Dry System ------Pelletizing System---- Cooling Sieving---Bagging System
The pictures for your reference

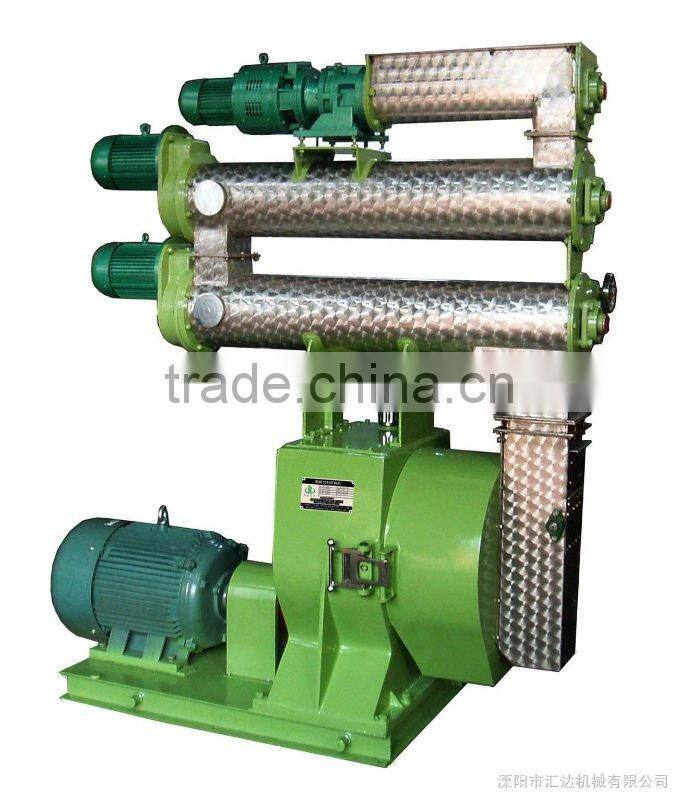

Pellet Machine

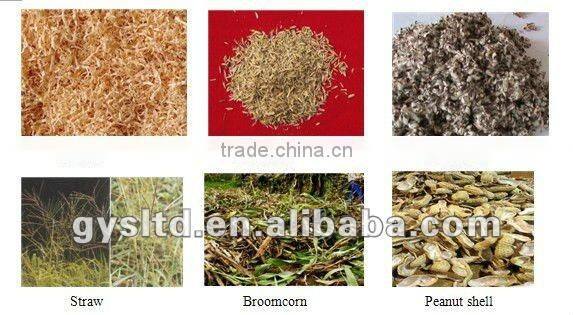

The raw materials

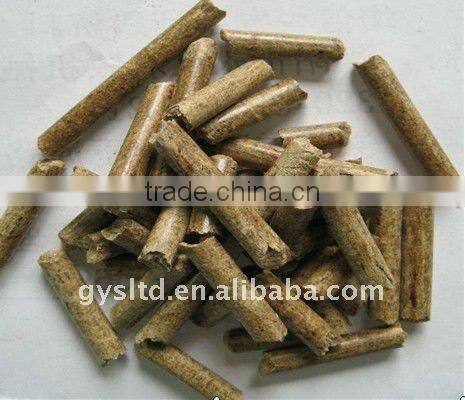

The end product
If you are interested in our product and want to know more information, please contact me and i will tell you as much as i know.
