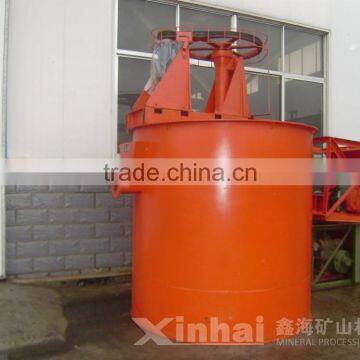

Mineral Seperator Processing Mixing Agitator Tank
Our agitator tank can be used for many mineral grinding,such as gold ore,copper ore,iron ore and zinc ore and so on. When you find xinhai , you find the best mining machinery manufacturers. What you need is what we do.
Agitation Tank —Product advantages
1.Powerful agitating capability
2.Ores and reagents can fully contact
3.Powerful stirring capability
Agitation Tank —Product feature
The bigger the impeller diameter is, the more powerful the agitating capacity is.
The higher the impeller RPM is, the more powerful the agitating capacity is.
The umbrella shape of impeller greatly increases the agitating capacity.
That the agitating capacity is boosted improves the circulation ability of minerals and reagents.
The baffle can compress negative pressure to a limited space and improve suction capability. As a result, the circulation capacity is enhanced.
Umbrella-shaped impellers produce huge downward pressures, increasing the suction and circulation capacity.
Only when the surface of mineral is completely reacted with reagent, the beneficiation standard is improved.
Agitation Tank —Product application
It is used for the preliminary agitation of ore pulp before the floatation beneficiation.
Agitation Tank —Product principle
The high speed rotation of impellers can stir ore pulps, which cause ore particles and reagents fully contact.
Agitation Tank —Technology parameter
Model | Effective volume | Impeller RPM | Impeller diameter | Motor Model | Motor power | Weight |
GBJ-1000×1000 | 0.58 | 530 | 240 | Y112M-6 | 2.2 | 548 |
GBJ-1250×1250 | 1.15 | 350 | Y100L2-4 | 3 | 1108 | |
GBJ-1500×1500 | 2.2 | 320 | 420 | Y132M2-6 | 5.5 | 2207 |
GBJ-2000×2000 | 4.4 | 240 | 560 | Y160M-6 | 7.5 | 3110 |
GBJ-2500×2500 | 9.2 | 272 | 560 | Y180L-6 | 15 | 3939 |
GBJ-3000×3000 | 19.1 | 220 | 700 | Y225S-8 | 18.5 | 6320 |
GBJ-4000×4000 | 45 | 153 | 1000 | Y225M-8 | 22 | 9560 |
Xinhai mining was established in 1993.And was the pioneer of China beneficiation industry.Our company could provide mining machine more than 600,and have the most equipment in China.At present,Xinhai business includes Mineral Processing EPC,Wear-Resistant Rubber,LFC Machinery,and Mining Investment.
this is our factory and our office building.
this is our laboratory and laboratory data.
Our customers come from all over the world, such as Xinhai EPC project ,Africa Mail 800t/d gold; Xinhai Transformation Project, Indonesia PT.NEM Gold Mine as so on. We have a lot of successful cases in America, Russia and Africa .Also we have Zimbabwe Office,Sudan Office and Indonesia Office. We will give you the best service.
this is our project in Africa.
Q:Hi, are you mining machinery manufacturer?
A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.
Q:which country have your products been exported?
A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.
Q:Can you do mineral processing test?
A:Yes, not only can do it in your country, also can back to our company
How To Contact Us?
You can tell us the kind of ore that you want to process and the capacity that you need. We will give you the most suitable models.
