Help CenterWood Chips Updraft Fixedbed Gasifier for Power Generator 1mw Biomass Gasificaiton Power Plant With Gas Generator
Related Products
-
10mw Biomass Gasifier for Boiler Waste Wood Chip Gasification Power Plant Rice Husk Gasifier for GeneratorUS$ 1 - 9,999,999MOQ: 1 Set -
Biomass Gasification Power Plant Waste Wood Gasifier for Generator Biomass Gas Power Generation System Rice HuskUS$ 1 - 10MOQ: 1 Set
-
500kw Biomass Gasifier Electric Generator Biomass Gasification Power Plant Wood Chips Gasifier for Power GeneratorUS$ 1 - 10MOQ: 1 Set
-
1.5 mw Rice Husk Gasification Power Generation System Biomass Gasifier for Generator Biomass Power PlantUS$ 1 - 10MOQ: 1 Set
-
CE Approved Wood Gasifier Biomass Gasification Power Plant Biomass Fluidized Bed GasifierUS$ 140,000 - 200,000,000MOQ: 1 Set
i. Main Technical Process
1.Preparation of Biomass
Biomass should be cut to 40mm or smaller than 40mm. The humidity of biomass should be treated to 15% or smaller than 15%. After that,Satisfied biomass is sent into biomass storage room. And at least , it is necessary to store adequate biomass which is enough to support plant to run fro one week.
2 Biomass Gasification Process
B.iomass is fed continuously into gasifier by feeder located on the bottom of gasifier. Under the effect of hot bed material,biomass contact with air from the bottom of gasifier . At the same time ,pyrolysis and gasification reaction happen so that biomass is converted into fuel gas .The main composition of fuel gas is CO,H2,CH4 etc. And some tar and dust are included in fuel gas . The heat value of fuel gas is 1000~1200kcal/Nm3.
3 .Gas Purification Process
Use advanced Purification technology to remove dust and collect tar. At the same time, water from purification system can be recycled . Consequently , biomass gasification plant will discharge zero pollution.

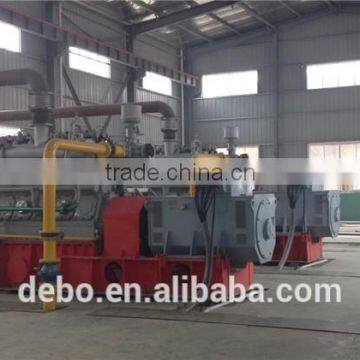

4 .Power Generation Process
Pipe fuel gas into 4 units 500kw internal combustion engine to produce electricity. Voltage :400v.frequency : 50hz
II. Gas Composition
N2 |
% |
37~43 |
CO |
% |
10~16 |
CO2 |
% |
7~13 |
H2 |
% |
7~13 |
CH4 |
% |
4~7 |
CnHm |
% |
0.4~0.9 |
H2O |
% |
18~22 |
H2S |
% |
<0.01 |
III. Ash Compostion
C |
% |
26~35 |
SiO2 |
% |
36~44 |
CaO |
% |
12~18 |
K2O |
% |
3~6 |
Fe2O3 |
% |
0.5~2 |
others |
% |
12~16 |

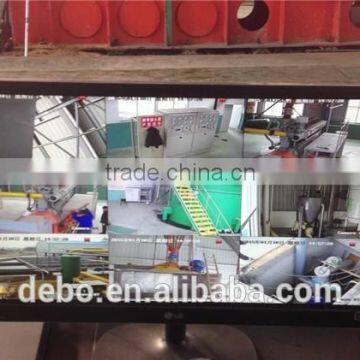

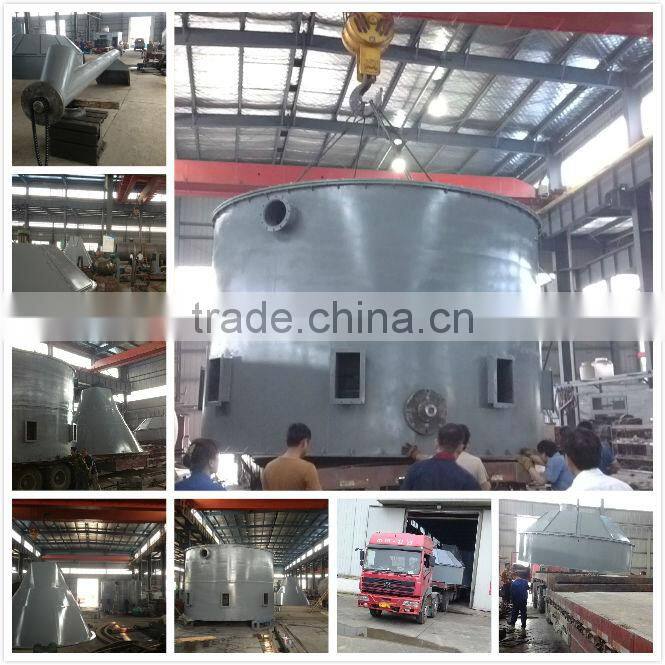

Pictures Of Productiong Line
