Biomass gasification power plant
convert various biomass energy into fuel gas through gasification and then supply to the power generating set for power generation. the new system will not only realize the effective use of renewable energy resources but also reduce the environment pollution caused by various organice wastes
introduction of biomass gasification power generation system
Models &specifications:100kw-6mw etc
gas output: 300Nm3 to 20000Nm3
gas heat value : 1000kcal~1250kcal/Nm3.
applicable raw materials: all the plants and organic wastes
raw materials consumption:1.0-0.2kg raw materials for generation of each kilowatt/hour
All Exhaust gas , waste water , waste residue , will be treated firstly , will not be discharged for environment protection

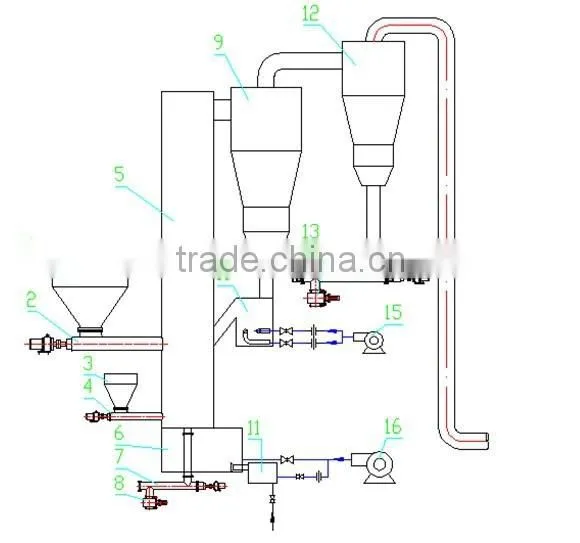

Draw1 technical process diagram
1. Biomass silo 2. Biomass feeding screw conveyor 3. Sand silo 4. Sand feeding screw conveyor 5. Gasifier 6. Pressure-equalizing chamber 7. Slag discharging screw conveyor
8. Air lock 9. Cyclone 10 . Ash returning device 11. Diesel burner 12 cyclone 13 ash discharging srew conveyor 14 air lock 15 fan 16 air blower .
2.Gas Composition
Item |
|
Data |
CO |
% |
20.3~24.1 |
CO2 |
% |
6.3~9.8 |
CH4 |
% |
3.2~4.8 |
CnHm |
% |
0.3~0.7 |
H2 |
% |
6.2~9.8 |
N2 |
% |
40.1~46.6 |
H2O |
% |
13.2~17.5 |
