we offer whole biomass gasification power plant and biomass gas engine and generator
About Biomass gasification power plant:
convert various biomass energy into fuel gas through gasification and then supply to the power generating set for power generation.
the new system will not only realize the effective use of renewable energy resources but also reduce the environment pollution caused by various organice wastes
Specifications:
Models &specifications300kw-6mw etc
applicable raw materials: all organic wastes, agriculture waste, forestry waste ,like rice husk , wood chips, wheat straw
Efficiency: 1.2~1.5kg produce 1kwh electricity .
Emission: no dirty water emission . dirty water will be recycled .
Gasifier type: downdraft fixed bed gasifier, updraft fixed bed gasifier and fluidized bed gasifier.
we will depend on the feature of biomass to use difference gasifier . different gasifier has different feastures .
About Biomass Gas engine and Generator
1.IC Engine
Model 8300
Cylinder NO. 8
Rated Rotate Speed 500r/min
Rated Powr 500kW
Direction of Rotation
(see from the end of flywheel) Clockwise
Starting Mode Compress Air
Exhaust Temperature ≤600℃
Gas Pressure kPa ≥2.5
Gas Inlet Temperature ≤40℃
Oil Consumption Rate ≤1.0g/kW•h
2.Generator
Model 400GFM
Voltage 400 V
Rated Power 450 kW
Power Factor 0.8(Lagging)
Excitation mode Brushless
Phase &Connection 3 phase 4 line

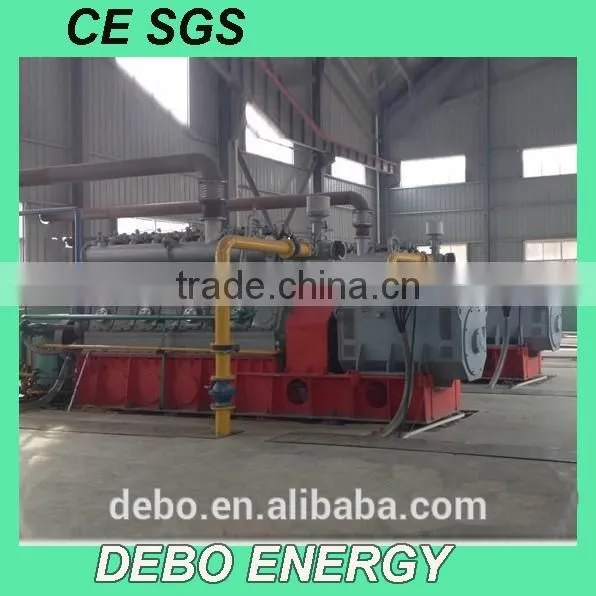

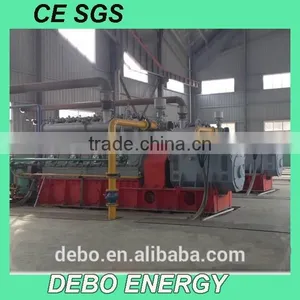

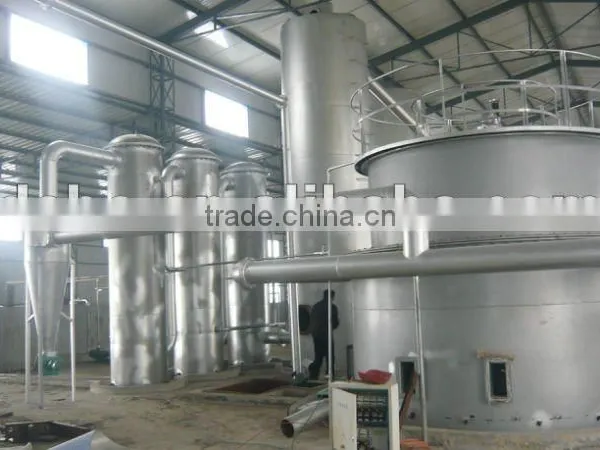

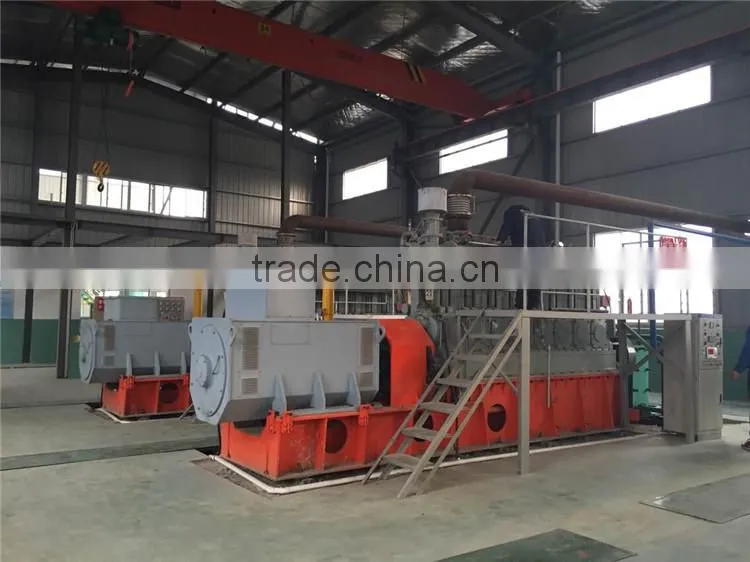

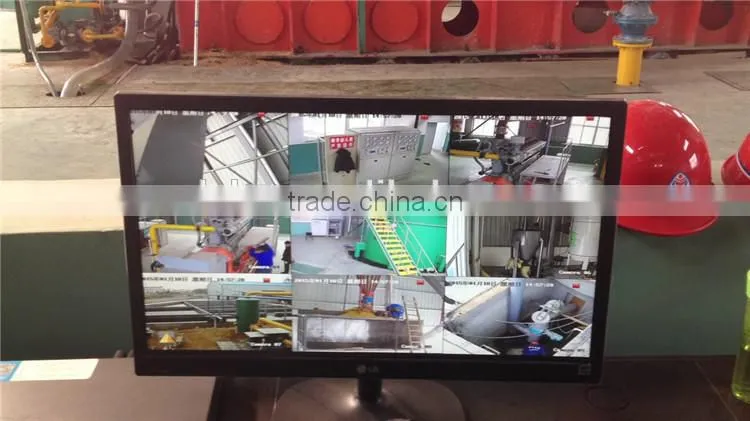

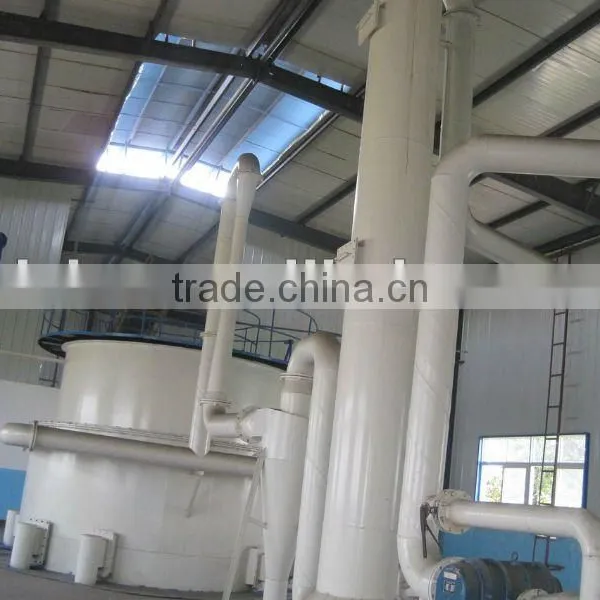

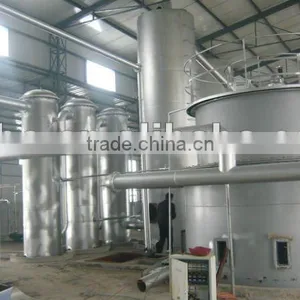

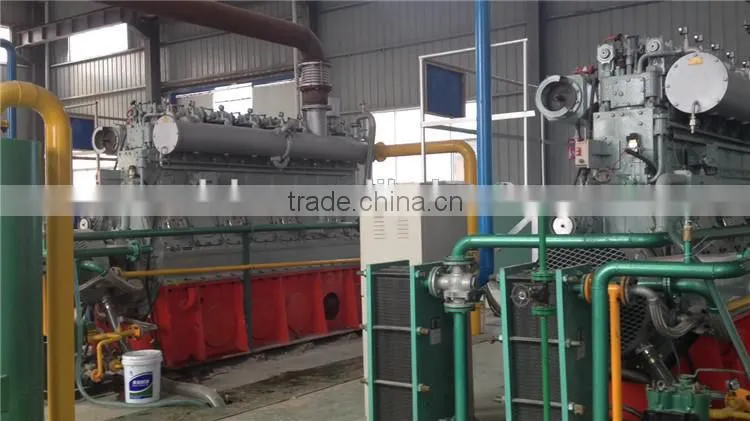

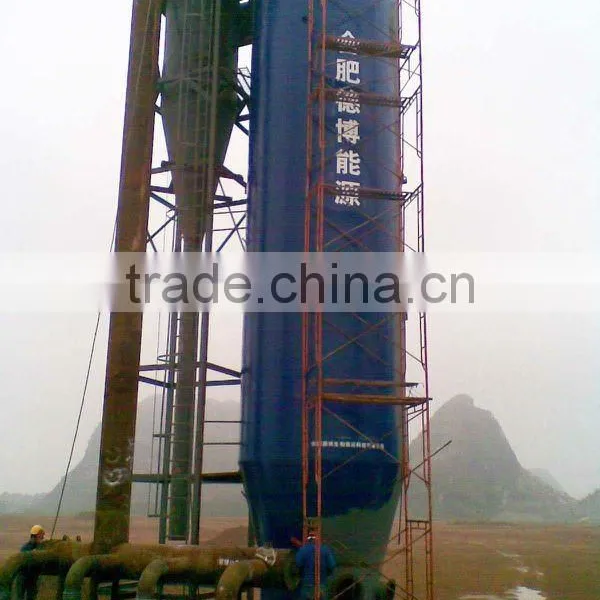

Some pictures during installation
