Biomass gasification power generator biomass gas generator 500kw~1MW waste gasification power plant

we offer whole biomass gasification power plant and biomass gas engine and generator

convert various biomass energy into fuel gas through gasification and then supply to the power generating set for power generation. the new system will not

only realize the effective use of renewable energy resources but also reduce the environment pollution  caused by various organice wastes

introduction of biomass gasification power generation system

Models &specifications:100kw-10mwetc

applicable raw materials: all the plants and organic wastes

raw materials consumption:0.8-2.0kg raw materials for generation of each kilowatt/hour

All Exhaust gas , waste water , waste residue , will be treated  firstly , will not be discharged for environment protection

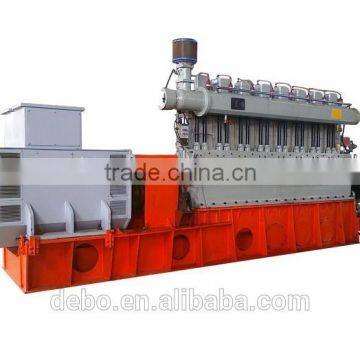

Below are parameter of 500kw gen-set

1.IC Engine
Model :                                                            8300
Cylinder NO.:                                                  8
Rated Rotate Speed :                                 500r/min
Rated Powr :                                                500kW
Direction of Rotation(see from the end of flywheel) :Clockwise
Starting Mode:                                            Compress Air
Exhaust Temperature :                             ≤600℃
Gas Pressure  :                                             ≥2.5K kPa
Gas Inlet Temperature:                              ≤40℃
Oil Consumption Rate:                             ≤1.0g/kW?h
2.Generator
Model :                                                         400GFM
Voltage :                                                      400 V
Rated Power :                                                 450 kW
Power Factor:                                          0.8(Lagging)
Excitation mode:                                         Brushless
Phase &Connection :                                      3 phase 4 line
