High Efficiency Production Line of Charcoal Machines Price
- qingdao port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Professional Supply Woodcharcoal Briquette Production Line
-
Hot Sale Big Profile Small Charcoal Briquette Line
-
New Environmental Screw Type Briquette Making Production Line
-
Cheap Price Firewood Sawdust Briquette Machine Line
-
Widely Application Wood Briquette Machine Line
-
Hot Sale Biomass Briquette Machine Line Price
Product Details
| Condition | New | Production Capacity | 2-3t/24h | |
| Motor Type | AC Motor | Power(W) | 15kw | |
| Place of Origin | Henan, China | Brand Name | Taizy | |
| Model Number | TZY | Dimension(L*W*H) | 2983mm*2293mm*2112mm | |
| Certification | ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High efficiency production line of charcoal machines prices
Contact person:Winnie
Skype:taizy2019
QQ:1799244239
Mobile/whatsapp/wechat:0086-18703616826

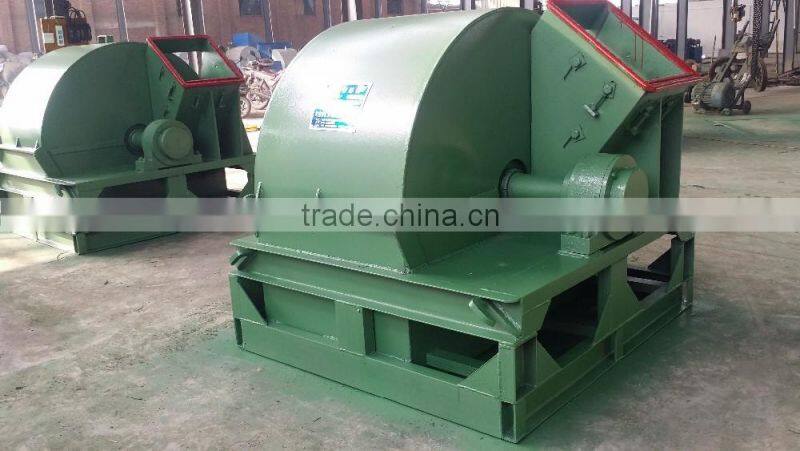

1.crush machine of production line of charcoal machines
Crushing the raw materials into size no bigger than 5mm.
Model | WDFQ-320 | WDFQ-350 | WDFQ-360 | WDFQ-400 | WDFQ-420 | WDFQ-500 | WDFQ-600 |
Voltage
| 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz |
Power
| 2.2kw | 3kw | 5.5kw | 7.5kw | 11kw | 15kw | 22kw |
Blade number
| 16pcs | 16pcs | 16pcs | 16pcs | 16pcs | 24pcs | 24pcs |
Weight
| 76kg | 85kg | 90kg | 120kg | 140kg | 200kg | 500kg |
Dimension
| 0.7*0.5*0.6m | 0.7*0.6*0.7m | 0.7*0.6*0.8m | 0.9*0.7*1m | 0.95*0.8*1.1m | 1.1*0.9*1.2m | 1.9*1.2*1.9m |

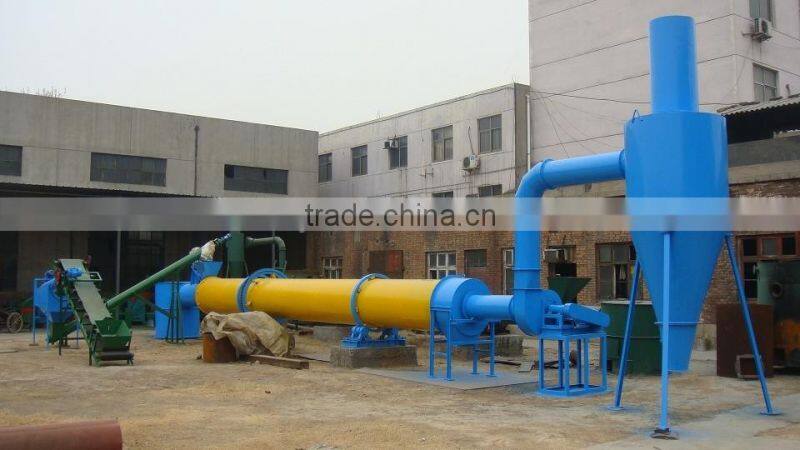

2. Dryer machine of production line of charcoal machines
Dry the crushed materials to 8-12%
Model | WDHG-600 | WDHG-800 |
Diameter(mm) | 600 | 800 |
Length (m) | 6 m | 8m |
Thickness(mm) | 6 | 8 |
Volume (m3) | 1.7-2.3 | 4-5 |
Lifting blade | Elevated lifting type, Cross lifting type, fan-shaped lifting type, sleeve lifting type, etc. | |
Laying gradient | 3°-5° | |
Fill rate | 8-20% | |
Material | Heat-resistant steel, stainless steel, cast steel, carbon steel, etc. | |
Usage temperature | 180-800C° | |
Evaporation intensity | 5-120 kg/m3.h | |
Heat method | Downstream and upstream, direct heat transfer, indirect heat transfer, compound heat transfer | |
Heat source | Coal, oil, electricity, gas, steam, biofuels | |
Rotate speed | 3-8 r/min | |
Transmission power | 3 kw | 4 kw |
Corollary equipment | Conveyor equipment, hot blast stove, dust removal equipment, etc. | |

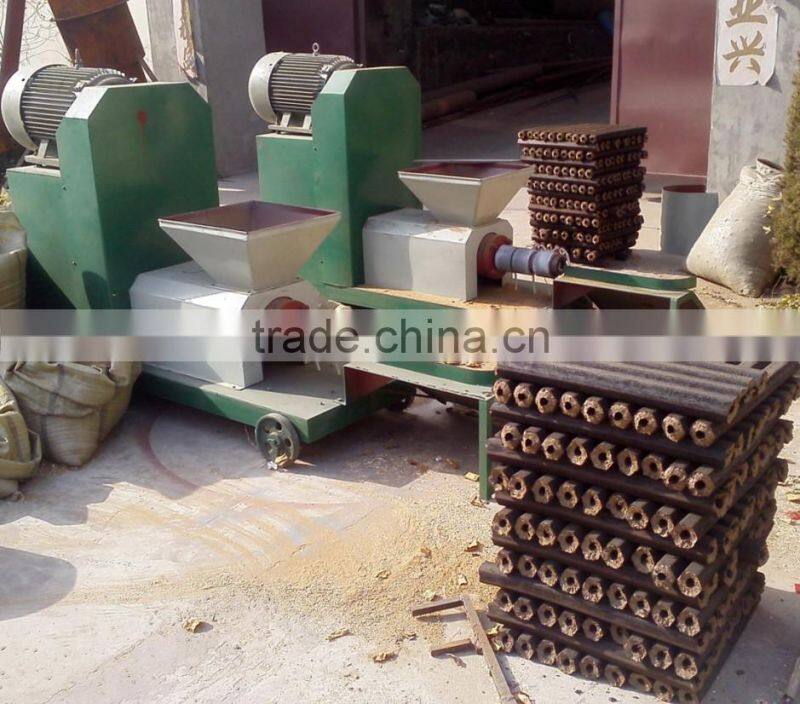

3. briquette machine of production line of charcoal machines
The raw material density is generally about 130kg/m3, and the density of
formed charcoal bar is 1100-1400kg/m3.
Model No. | ZYB- 1 |
Productivity kg/day | 2200 |
Motor power (kw) | 15kw |
Electrical Heater Motor power(kw) | 3*1.5kw |
Weight(kg) | 1000kg |
Size outside | 1650*600*1260 |
4. Curbonization furnace of production line of charcoal machines
The Carbonization Stove, also called Environmental Continuous Gasification Equipment,
is used to convert the wood or agr waste materials containing carbon to charcoal powder under
high temperature.
Model | Weight | Capacity | Diemension |
TZY-3 | 2t | 180kg | 2900*1400*2000mm |
TZY-4 | 2.5t | 300kg | 3500×1500×2000mm |
4t | 600kg | 4000×1500×2000mm | |
5t | 1000-1200kg | 5000×1600×2200mm |

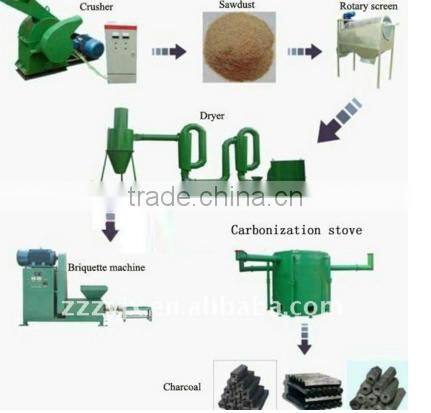

The full line parameter of production line of charcoal machines
