2024 Guide to Coal Briquette Machine ROI Calculation
Feeding Size:
Capacity: 1-50T/H
Raw Material: coal powder, coal gangue, soft coal, anthrocite coal
Application: Refractory, power plant, metallurgical, chemistry, energy, transportation and heating, etc.
2024 Guide to Coal Briquette Machine ROI Calculation Introduction:
2024 Guide to Coal Briquette Machine ROI Calculation is also called coal powder molding machine, it is used to briquette coal powder, coal gangue, soft coal, anthrocite coal, etc. Belongs to cold briquetting technology; In production, it can produce popular briquette shapes, like oval shape, pillow shape and square shape, etc. in high density, strong strength and high hardness through adding some kind of binder material, so customers are more like it. Its structure is composed of three parts: feeding system, transmission system and briquetting system. XM290 modelis often as a trial machine goes to customer site for small size and easy maintenance.
(1) 2024 Guide to Coal Briquette Machine ROI Calculation is also called coal powder molding machine.

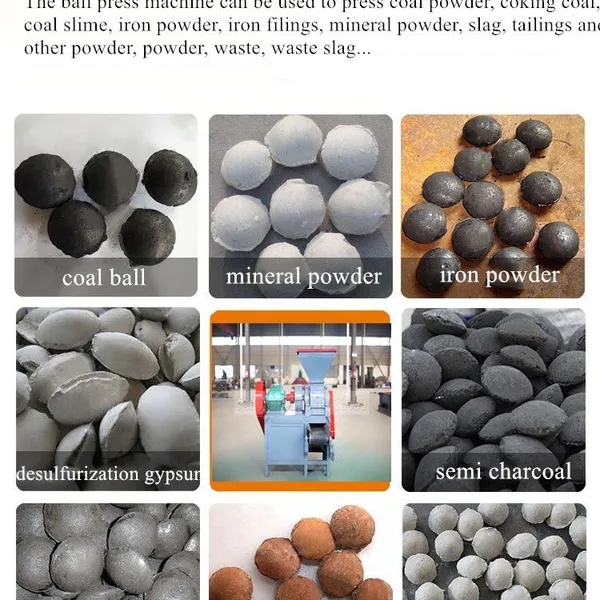

(2) It can produce popular briquette shapes, like oval shape, pillow shape and square shape, etc.
(3) Finished briquettes are in high density, strong strength and high hardness.
(4) Briquette machine is composed of three parts: feeding system, transmission system and briquetting system.
2024 Guide to Coal Briquette Machine ROI Calculation Working Principle:
(1) Through reducer transmitting the powder material to two rollers, and making them rotated in opposite directions.
(2) The powder materials naturally enter into the roller molds.
(3) When the materials rotating to two rollers line contact points, materials pressure reached a peak.
(4) Under enormous pressure, the powder materials are suppressed into finished briquettes.
XM Series Coal Briquetting Machine
| Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
| XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
| XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 | |
| XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 | |
| XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 | |
| XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 | |
| XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 | |
| XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 | |
| Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo | |||||||
| According to different material adjust machine parameter to meet customer production | |||||||
KF Series Mineral Powder Briquetting Machine
| Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
| KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 | |
| KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 | |
| KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 | |
| KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 | |
| KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 | |
| Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo. | |||||||
| According to different material adjust machine parameter to mmet customer production | |||||||
