Specifications
Batching machine1.Full Automatic,easy operated
2.Low procurement cost
3.Optional batching box
4.Accurate batching system

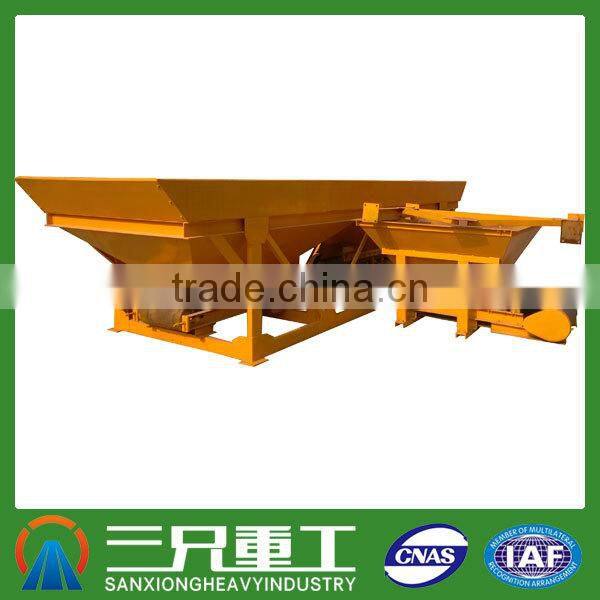

Proportioning Machine for Construction Material, cement batching machine for brick production
Brief Introduction of cement batching machine :
Two bin feeder consists of feeding mechanism, weighing system and electrical control system, etc. The upper is raw material storage hopper, lower for the weighing hopper, for unloading conveyor belt at the bottom. the storage hopper used to store with the raw material, storage hopper bottom below faces ingredients conveyor belt. The equipment used in small and medium-sized construction site more, can improve the batching accuracy, reduce the error, effectively ensure the accuracy of the cement, sand and gravel mixture, and use of electronic weighing system, further improve the accuracy of the weighing.
Extraordinary Features :
1. It can proportion materials by double bin, three bins or more than three warehouse, mostly used in building materials industry;
2. Improve the batching accuracy, reduce the gap;
3. Reduce the purchasing cost, reduce the frequency of wrong method of material usage (more or less);
4. A high degree of automation, adjust automatically after the ingredients, does not need manual operation;
5. The belt conveyor, prevent material falls;
6. The feed mechanism are arranged "one" glyph, convenient material conveying.
Technical Parameters of aggregate batching machine:
Model |
PLD800 |
PLD1200 |
PLD1600 |
Weighing hopper |
0.8m3 |
1.2m3 |
1.6m3 |
Storage hopper |
2×2m3 |
3×2.2m3 |
4×5m3 |
Capacity |
48m3/h |
56m3/h |
75m3/h |
Weighing accuracy |
±1% |
±1% |
±2% |
Max Capacity |
2000kg |
3000kg |
3000kg |
Aggregate species |
2 |
3 |
3 |
Filling height |
2400mm |
3000mm |
2900mm |
Belt conveyor speed |
1.0m/s |
1.0m/s |
1.6m/s |
Power |
3×2.2kw |
3×4kw |
4×5.5kw |
Weight |
2450kg |
4500kg |
5600kg |
Dimension |
5600×1830×2700 |
9000×220×600 |
9900×2000×3200 |

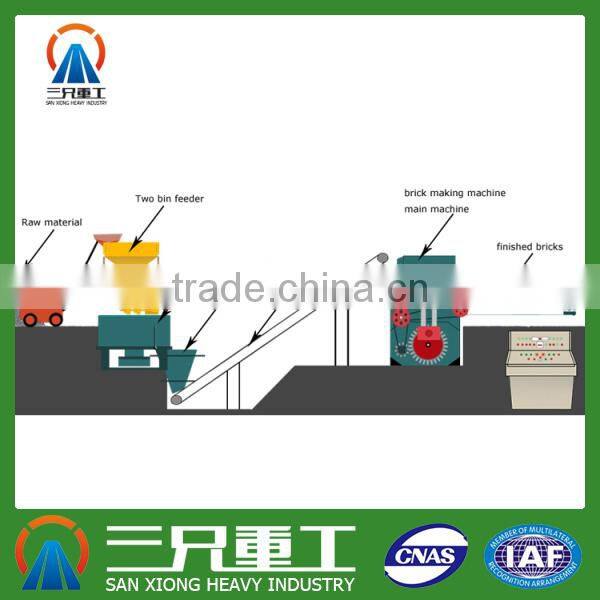

Technological Process of the whole brick&block production line:
Working Principle of cement batching machine:
Belt conveyor starts out of the material in the storage hopper to setting point ,and belt stops, then under the control instrument control, the configuration of several kinds of materials, until all materials to be configured, instrument control will start unloading belt ,conveying material into the next stage - grinding wheel mixer or blender.
some of our foreign customers:

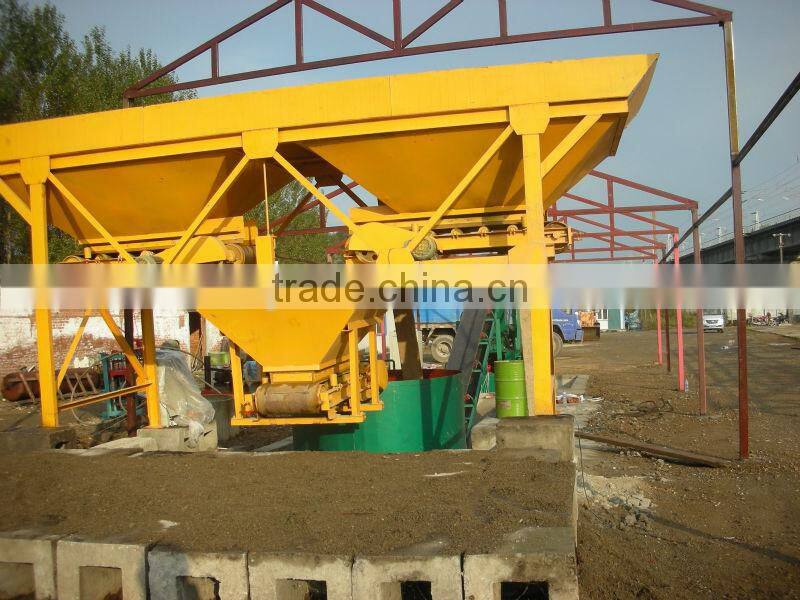

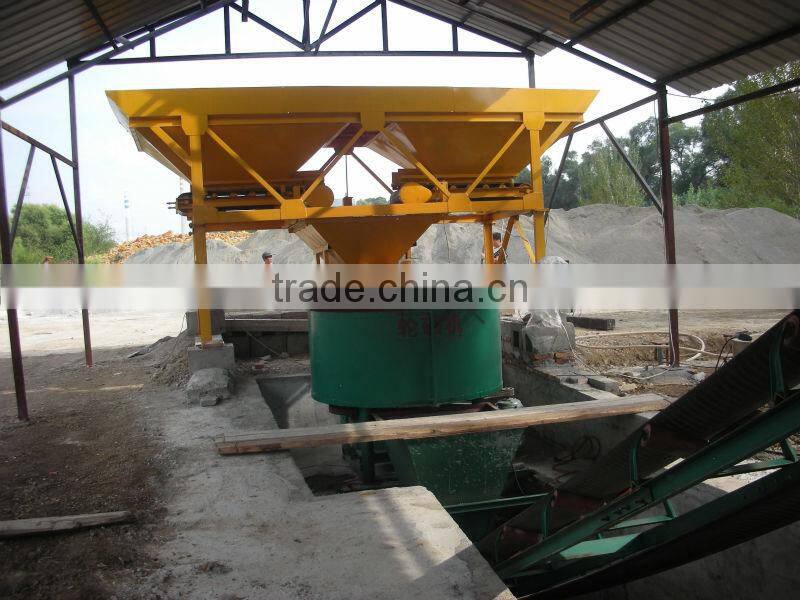

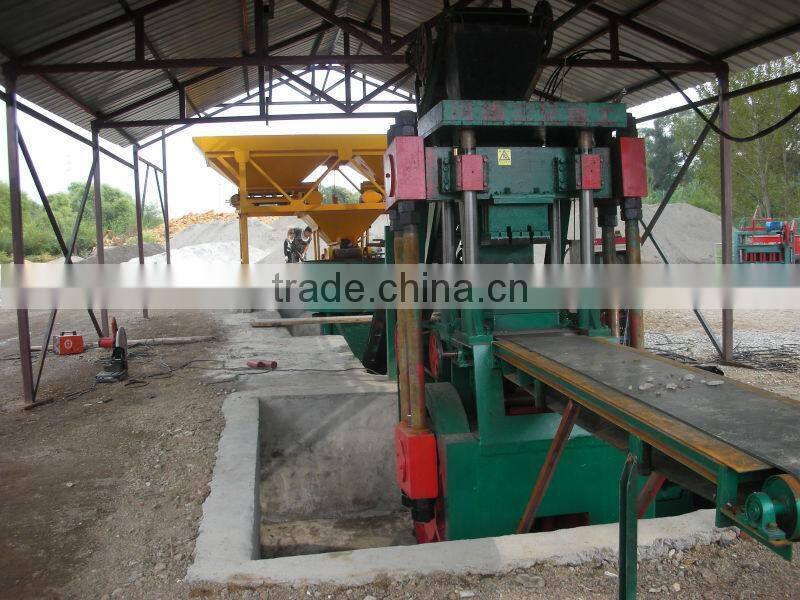

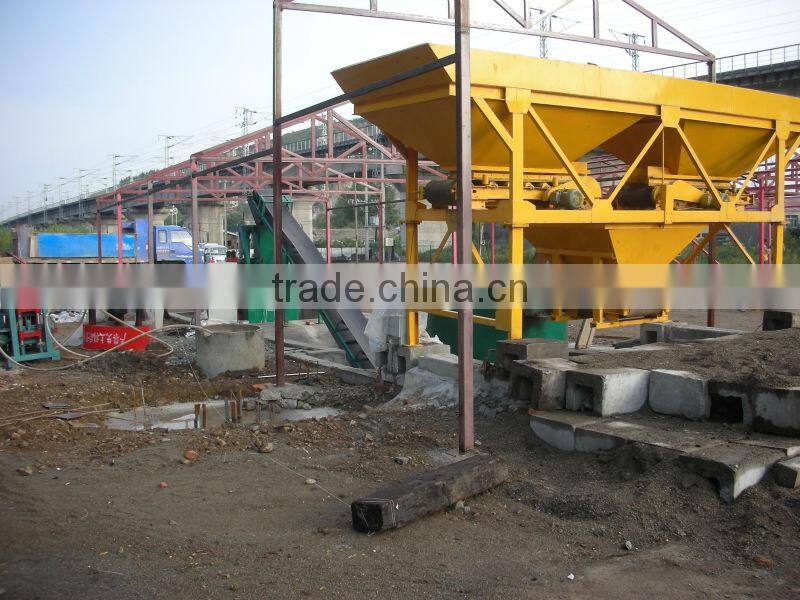

two bin feeder in the working site:
After sales service:
1.Establish managing documents for customer;
2.24-hour online consultation;
3.Regular feedback on equipment use;
4.Spare accessory delivery in time;
5.Provide the engineers to overseas for technical guidance.
Brief introduction of our company:
Henan Sanxiong Heavy Industry Co.Ltd. was founded in 1984, specializing in developing and producing new building materials. We have more than 30 years of brick-making experience. We have passed the authentication of ISO9001:2000 Quality Management System, and acquired the patent of “Yuhu” Brand brick-making machine,too. We devote ourselves on research and development of baking-free bricks, so as to doing our part for “sustainable development”strategy.
Your concerns will be highly appreciated an given prompt reply,and we will try our best to solve your problem with best service!
