Specifications
still kettle1.28 years experience
2. Simens Electronic component
3. Smart control system
4.ISO9001:2000

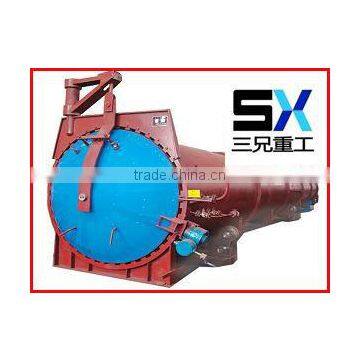

This product is key equipment which has a widely application in building material factory
to autoclaved cure different kinds of building materials.
Autoclave belongs to pressure vessel which has explosion risk. According to the
supervision regulation on safety technology for pressure vessel on divide standard of
pressure vessel, the product is part of first and second class pressure vessel. Before
putting into operation, the end−user must register in the local boiler and pressure vessel
safety supervision organization and acquire the operation permit, at the same time it
must accept supervision and inspection.
Item | Type | |||||||
FGZSS1.5-1.65*L | FGZCS1.5-2*L | FGZSS1.5-2.5*L | FGZSS1.5-2.68*L | FGZSS1.5-2.85*L | FGZCS 1.5-3*L | FGZCS 1.5-3.2*L | ||
Inner diameter | Ø 1.6m | Ø 2m | Ø 2.5m | Ø 2.68m | Ø 2.85m | Ø 3m | Ø 3.2m | |
Length*1 | L | L | L | L | L | L | L | |
Designed pressure | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa | 1.6Mpa | |
Designed temperature*2 |
204°C |
204°C |
204°C |
204°C |
204°C |
204°C |
204°C | |
Max operation pressure | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa | 1.5Mpa | |
Max operation temperature | 201°C | 201°C | 201°C | 201°C | 201°C | 201°C | 201°C | |
Medium | Saturated steam | |||||||
Track gauge/height | 600mm/ 150mm | 600mm/ 150mm | 800mm/ 200mm | 800mm/ 250mm | 963mm/ 280mm | 1220mm /320mm | 1220mm/ 320mm | |
Corrosion allowance | 2mm | 2mm | 2mm | 2mm | 2mm | 2mm | 2mm | |
