Automatic Production Line mold master brick making machine
Automatic Production Line mold master brick making machine
1, What's the MZJ360-3 Red Bricks Automatic Production Line ?
MZJ360-3 red bricks automatic production line is the one of backing-free brick machine. It's the common block machineupdated version. Refers to the process of production of brick, it is different form the traditonal kiln brick process. MZJ360-3 red bricks automatic production line don't need to fire, just through the high press press block molding.

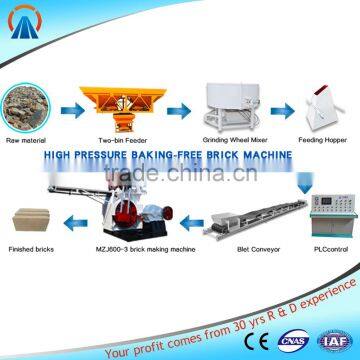

2,MZJ360-3 red bricks automatic production line production process
Ingredients → Grinding Material → Pressure Molding → Natural Curing
3, Material for the red bricks automatic production line ?
Cement, sand slag, stove ash, fly ash, construction waste, etc...
A: Ingredients (MZJ360-3 red bricks automatic production line )
1, According to the mixture ration to do the ingredients for the red bricks automatic production line . Make the block meeting the strength and other features of the requirements.
2, Ingredients will be adjustment by the fluctuation of the raw material quality for the red bricks automatic production line .
B: Grinding Material ( MZJ360-3 red bricks automatic production line )
Edge Runner Tech Patameters
Production ( m³/time) |
3200~3600 pieces |
Rationed Power(KW) |
11kw |
Efficiency ( mins/time) |
3 mins/time |
Vee Belt Model |
B4200 |
Weight (KG) |
1900kg |
External size(mm) |
1800*1500mm |
The characteristics of the raw materials after grinding wheel (MZJ360-3 red bricks automatic production line )
1, Uniformity, caking all increase
2, Brick's appearance, drying have improved
3, Improve the quality, intensity of brick
C Pressure Molding ( MZJ360-3 red bricks automatic production line )

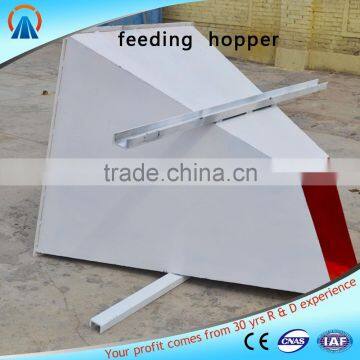

After the grinding materil, the material will be send into the feeder machine, and then pressed into bricks. Compacting press, speed will affect the quality of the brick.
Feeder Machine Tech Patameters (MZJ360-3 red bricks automatic production line )
Production ( m³/hour) |
20m³/hour |
Weight (KG) |
280kg |
External size(mm) |
1800*1160*1400mm |
Belt Conveyor Tech Patameters (MZJ360-3 red bricks automatic production line )
Belt Width (mm) |
500mm |
Transportation Length (meter) |
10 meters |
Rationed Power(KW) |
4kw |
Vee Belt Model |
B2100 |
Weight (KG) |
570kg |
External size(mm) |
10000*500mm |
The testing results (MZJ360-3 red bricks automatic production line Testing) show that all kinds of index, such as, compressive strength, specific absorption and freezing thawing, can meet the requirements.
D: Natural Curing
1, The bricks produced by MZJ360-3 red bricks automatic production line can stacking directly, no need pallets.
2, Curing with water after 24 hours (MZJ360-3 red bricks automatic production line )
3, 2 times/ day in the spring, autumn; 3 times/day in summer
4,The brick's advantage produced by MZJ360-3 red bricks automatic production line
1, 3 High: High density; High quality; High strength
2, 1 brick press power ≥60 ton
3, Stacking directly, no need pallets, cost saving
Service
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of build factory, feasibility analysis for brick machine production line ```)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) 24 hours service
(4) Welcome to visit our factory and production line anytime
(5) Introduce the company file, product categories and production process.
(6) OEM design
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side.
(2) Set up, fix,and operate
(3) Will not train the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time,keep well communication with each other.
Henan Sanxiong Heavy Industry Co., Ltd was built in 1984. Having been specialized in the development, researchand production of new building materials equipment for almost 38 years. We have successfully installed and debugged whole brick press machine production lines, automatic hydraulic block making machine production lines and clay brick making machine production lines for customers at home and abroad. Our products have achieved ISO9001:2000 certificare,National patent products, also won a series of national and local technical award certificates. Our products have been sold to Middle East, Russia, Austrialia, South Asia, South Africa, West Africa and other Areas. More information, please clikc here
Q: What is the quality and strength of the brick?
A: First,we have developed a new type of mixer for the brick making machine,it will grind the material when it is mixing the material.and in this way,we make the material mixed uniformly ,improved the density of the brick,and for no gas barrier and the pressure of the brick making machine is 360t and 600t ,so we make the brick more strength,and the pressure every brick can bear is more than 10Pa for every square centimeter. And a man can stand on the brick which was made just now, the brick can be can be also directly stacked 10-12 layer.
Q: What is the application of the brick?
A: Bear wall ,Isolation wall
Q: What is the size of the brick?
A: Standard bricks,hollow bricks,blind hall,and we can make the bricks as your order.
More questions, please contact our after-sale team.
The MZJ-360-3 high pressure backing-free small fly ash brick machine compaction of equipment, strong rigidity, east operation, stable running, accurate in positing, repair rate is low. All machine with the ISO9001:2000 certificates. Your attention will be highly appreciated ! Welcome to visit our factory and make the comments.
