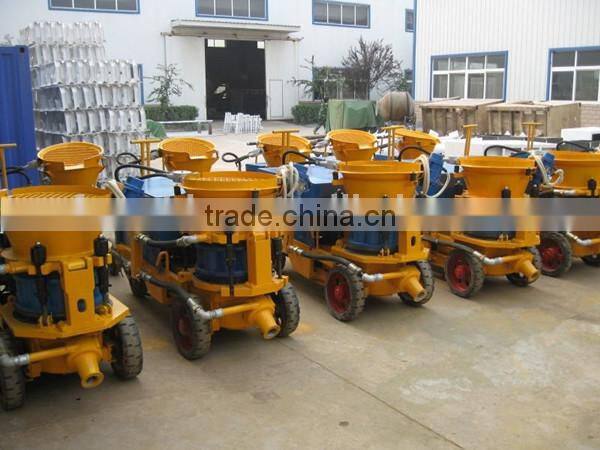

High efficiency gunite shotcrete machine/dry mix shotcrete machine/wet mix shotcrete machine
- 100 Set / Sets per Month
- shanghai/qingdao/ningbo/tianjing
- T/T Credit Card PayPal
Product Details
Max. Conveying Distance: | level200m vertical 50m | Max Aggregate Size: | 20m | ||
Hose Inner Diameter: | 50 mm | Air Consumption: | 7-8m3/min,6-7m3/min, 7-8m3/min,6-7m3/min | Place of Origin: | Henan, China |
Brand Name: | FURUI | Model Number: | FR-5 | Voltage: | 380V, 380V |
Power(W): | 3000 | Dimension(L*W*H): | 1520*820*1180mm | Weight: | 580KG |
Certification: | CE, CE | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High efficiency gunite shotcrete machine/dry mix shotcrete machine/wet mix shotcrete machine
Detailed Description of gunite shotcrete machine:
1.The shotcrete machine sets the advantages of wet and dry spray machine at home and
abroad in one, it is easy to operate, sprays evenly. and has the advantage of a low dust, low rebound.
2.The shotcrete machine are divided into two major categories, that is explosion-proof type and non-explosion proof type, both are based on straight through type rotor blanking under the rotor material, can take full
advantage of the role of air force jet to ensure the smooth discharge.
3.The rotor chamber and the discharge elbow materials are made of flexible rubber abrasion. When working, under the
action of the pressure can be rushed to the selfcleaning effect, reducing adhesive material and congestion, greatly
reduced the maintenance workload of the machine.
4.The shotcrete machine optimized the working environment, and improved the quality of spray layer.
The parameter of gunite shotcrete machine:
Model | Capacity | Air consumption | Conveying distance | Material ratio | Motor power | Max Aggregate size | Conveying pipe inner diameter | Weight |
FR-5 | 5 m3/h | 7-8 m3/h | 200m- 40m⊥ | 1:3-5 | 5.5kw | 20m | 51mm | 600kg |
FR-6 | 6-7 m3/h | 10-15 m3/h | 200m- 40m⊥ | 1:3-5 | 7.5kw | 20mm | 51/64mm | 800kg |
FR-7 | 7-8 m3/h | 10-15 m3/h | 200m- 40m⊥ | 1:3-5 | 7.5kw | 20mm | 51/64mm | 800kg |
FR-9 | 7-8 m3/h | 10-12 m3/h | 200m- 40m⊥ | 1:4-5 | 5.5kw | 15mm | 51mm | 1350kg |

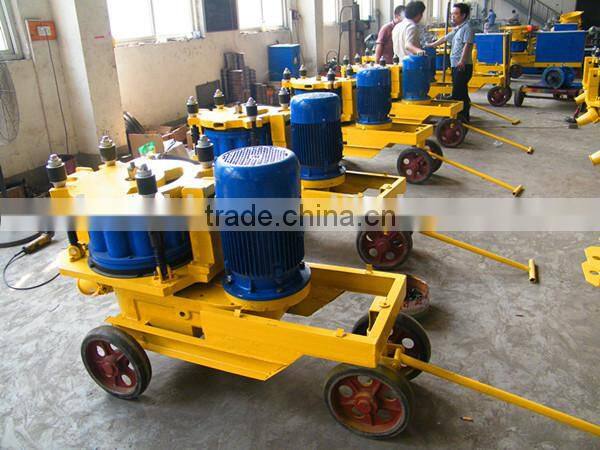

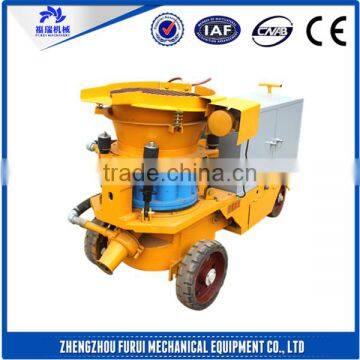

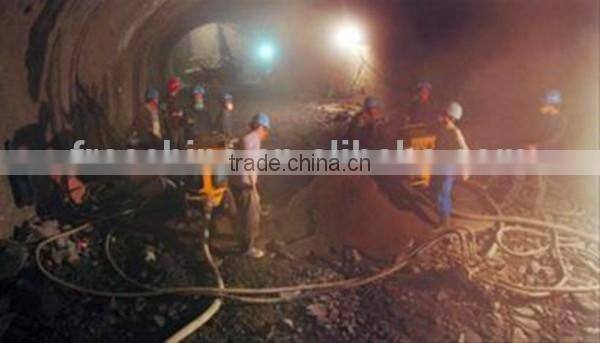

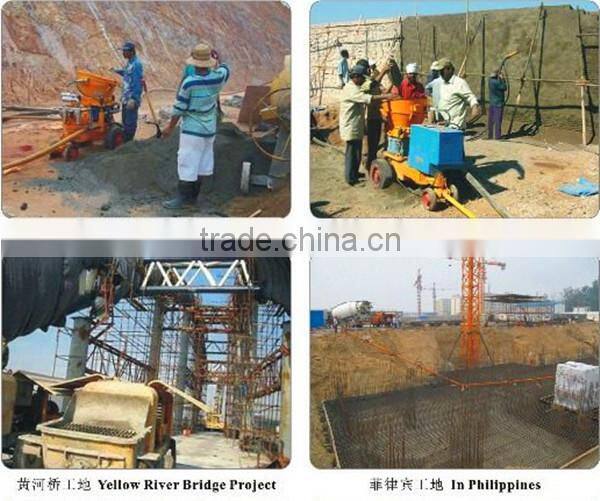

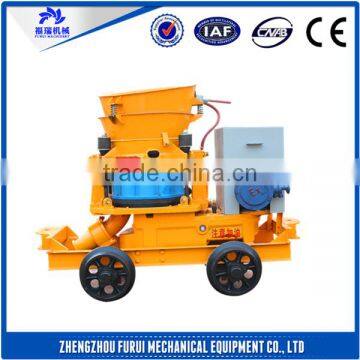

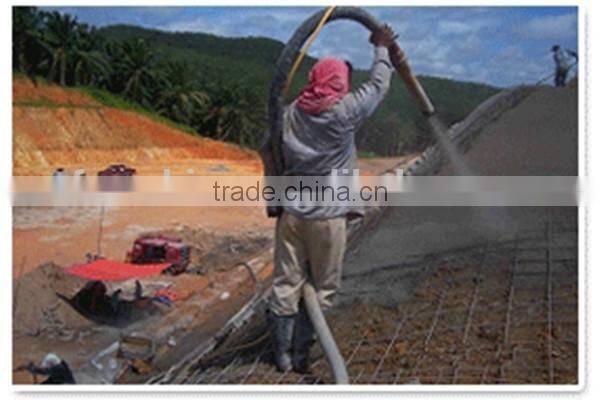

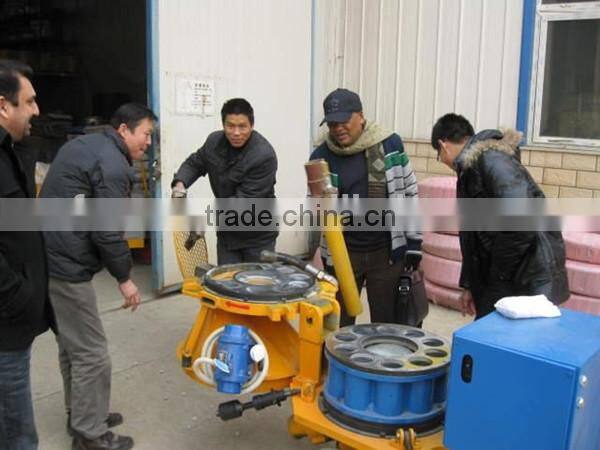

More pictures of gunite shotcrete machine:
If you are interested in this machine,please contact me!
