mortar machine,mortar pumping machine on sale,mortar rendering machine
1. Introduction of mortar machine :
1. mortar machine are divided into two major categories, that is explosion-proof type and non-explosion-proof type, both are based on straight-through-type rotor blanking under the rotor material, can take full advantage of the role of air force jet to ensure the smooth discharge.
2.The rotor chamber and the discharge elbow materials are made of flexible rubber abrasion.When working, under the action of the pressure can be rushed to the self-cleaning effect, reducing adhesive material and congestion, greatly reduced the maintenance workload of the machine.
3.If you use mortar machine under the mine, must be the explosion protection construction:but if in the ground, you will not need it , buy ordinary will do it.
4. mortar machine set the advantages of wet and dry spray machine at home and abroad in one, it is easy to operate, sprays evenly.
5.The advantage of mortar machine has a low dust, low rebound. It optimized the working environment, and improved the quality of spray layer.
2. technical parameters of mortar machine :
Model |
Capacity |
Air consumption |
Conveying distance |
Material ratio |
Motor power |
Max Aggregate size |
Conveying pipe inner diameter |
Weight |
FR-5 |
5 m3/h |
7-8 m3/h |
200m- 40m⊥ |
1:3-5 |
5.5kw |
20m |
51mm |
600kg |
FR-6 |
6-7 m3/h |
10-15 m3/h |
200m- 40m⊥ |
1:3-5 |
7.5kw |
20mm |
51/64mm |
800kg |
FR-7 |
7-8 m3/h |
10-15 m3/h |
200m- 40m⊥ |
1:3-5 |
7.5kw |
20mm |
51/64mm |
800kg |
FR-9 |
7-8 m3/h |
10-12 m3/h |
200m- 40m⊥ |
1:4-5 |
5.5kw |
15mm |
51mm |
1350kg |

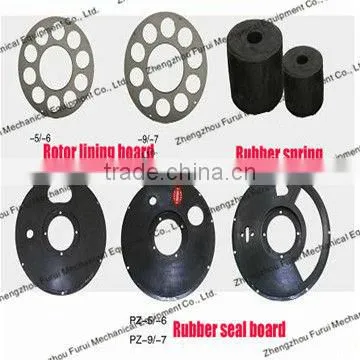

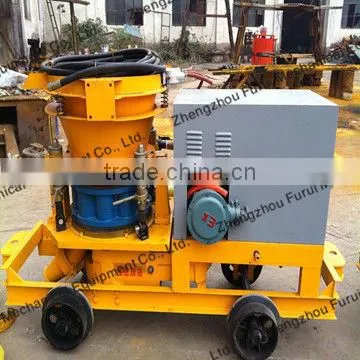

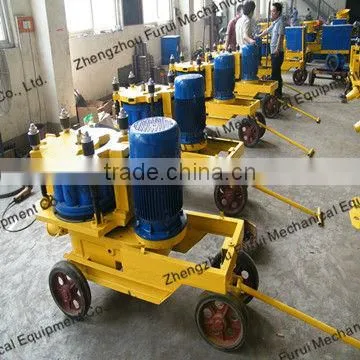

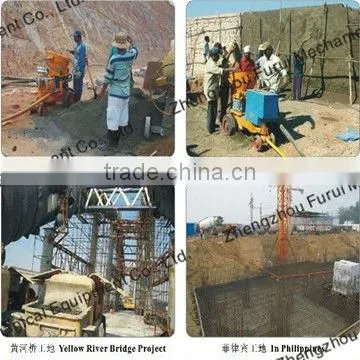

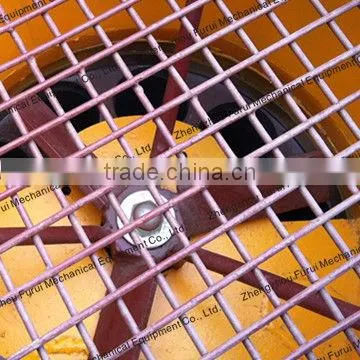

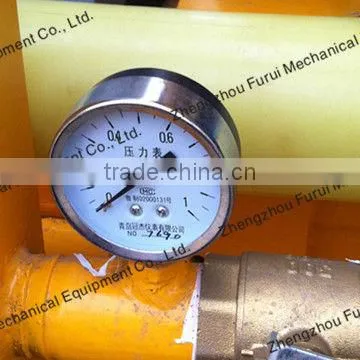

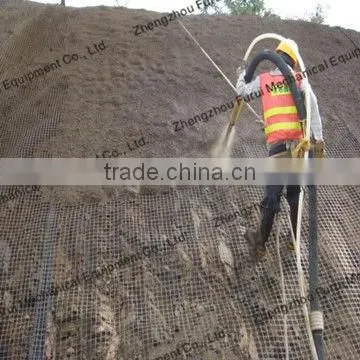

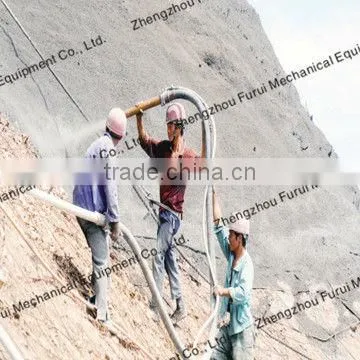

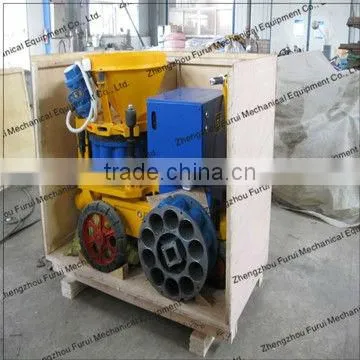

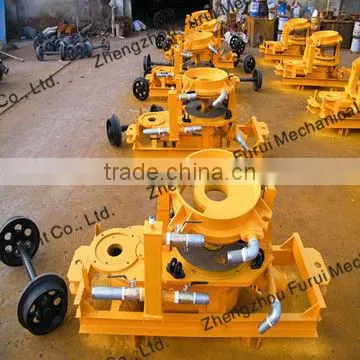

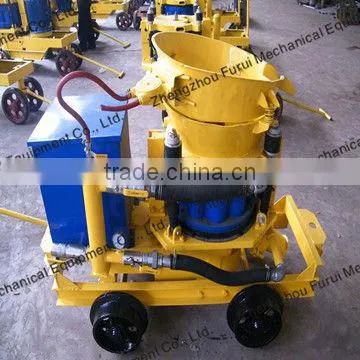

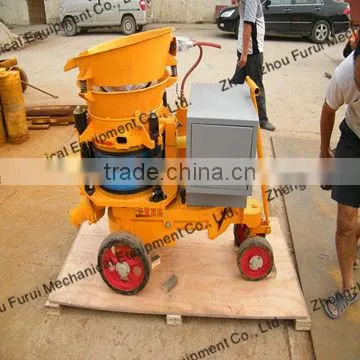

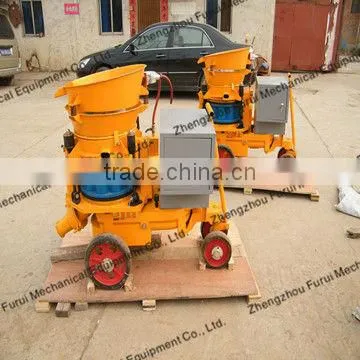

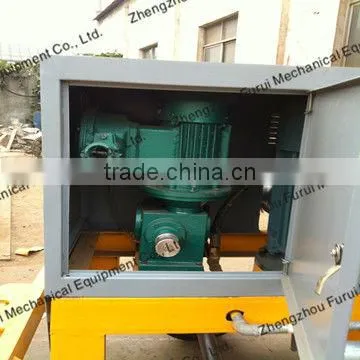

3. photos of mortar machine :
If you are interested in mortar machine ,pls contact with us .
24hours hot line:0086--15225069383.Skype:sunnywang201314.
Sunny is here waiting for your kindly reply.
