low electricity consumption coconut shell charcoal making carbonization machine
| Introduction of coconut shell charcoal making carbonization machine |
|
This coconut shell charcoal making carbonization machine belongs to the charcoal industry, with features of carbonization fast and no smoke or little smoke and little pollution. It's the new coking equipment with high efficiency.
The working principle of coconut shell charcoal making carbonization machine : put raw material into the inner stoves, seal the cover with fine sand soil, then hoist the inner stoves inside the furnace, heating the bottom of inner stoves by setting fire at the heating room(under the furnace). The raw material in the inner stove will come to the drying procedure(100-280 centi-degree), and then hoist charcoal making machine carbonization procedure(280-400 centi-degree). When it rise to the temperation starting carbonization procedure, connect the gas recycling pipe, leading the exhaust gas returning to the heating room to burn as fuel, heating the inner stove.
Three connected coconut shell charcoal making carbonization machine : (capacity 7-9t for 10% moisture sawdust briquette)
|
Structure of our coconut shell charcoal making carbonization machine |
|
This bamboo charcoal making machine is the cylinder shape. The whole single furnace consists of main furnace(outer stove), carbon basket(inner stove), fume extraction tube, smoking purification system and hoisting equipment. Features of our coconut shell charcoal making carbonization machine : 1. easy to operate and maintain, higher safety, energy saving. 2. High carbonization ratio, no smoke, little pollution, high efficiency. 3.This wood carbonization furnace is our newly developed charcoal making furnace, which can dry the mateiral with the the superfluous energy produced in the process of carbonization. 6-8hours per stove and the inner basket can work continuously by shift. 4. the bbq charcoal briquette stove has smoke purifying system, smoke can be filtered before be discharged to air.
|
|
Raw materials for coconut shell charcoal making carbonization machine
palm shell, palm fiber, bamboo, etc.
To meet different capacity, we have different models, single furnace, two connected furnace, three connected furnace, four connected furnace.
Below is the parameters of coconut shell charcoal making carbonization machine :
Model |
Capacity |
Note |
Power |
Weight |
Temperature |
|
Model-1 |
1-3T/day |
1 outer stove+3 inner stoves |
No |
3.8T |
420-480° C |
|
Model-2 |
4-6T/day |
2 outer stove+6 inner stoves |
No |
7.6T |
420-480° C |
|
Model-3 |
7-9T/day |
3 outer stove+9 inner stoves |
0.75 |
10.8T |
420-480° C |
|
Model-4 |
10-12T/day |
4 outer stove+12 inner stoves |
0.75 |
14.4T |
420-480° C |
|
| ||||||
Type: |
Dry distillation type. |
|||||
Raw materials: |
wood log, briquette wood, tree branches, nut shells, bamboo, ect. |
|||||
Environment: |
Totally No pollution, it will not produce any smoke. |
|||||
Energy consumption: |
20-30kg firewood or 15kg liquid gas . This type will save 30% payment |
|||||
Final product |
For the wood, its calorific value is 6000-6500kal for wood briquette calorific value is 6500-7500kal. For the nutshell, the calorific value is 7000-8000kal. |
|||||
single coconut shell charcoal making carbonization machine :
Four connected model coconut shell charcoal making carbonization machine :

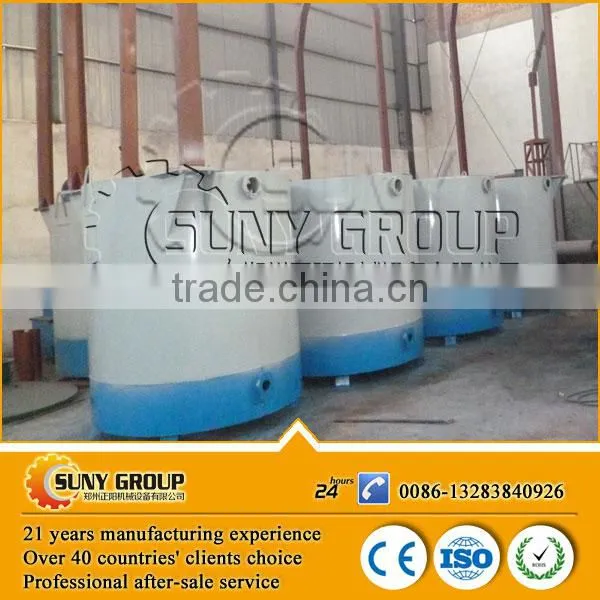

hoist coconut shell charcoal making carbonization machine in manufacturing:
Delivey photos of our coconut shell charcoal making carbonization machine :
Welcome contact Allison Xue for more details.
Pre-sale:
1. Suggest to client suitable models of our coconut shell charcoal making carbonization machine , according to the raw material, including its type, huimidity, final charcoal capacity requirements.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
Our company regards the product quality as the life of our enterprise. Our products have already passed relevant International Quality Management System Certifications. Our products are exported to clients across the world. We adopt highly abrasive materials and advanced processing technique, making the devices have long life span and wearproof performance. We have won a great reputation at home and abroad.
If you want to know more about our machine, please contact me without any hesitation !
