Specifications
charcoal carbonization kiln1.Large productivity.
2.Long life-span.
3.High charcoal making ratio

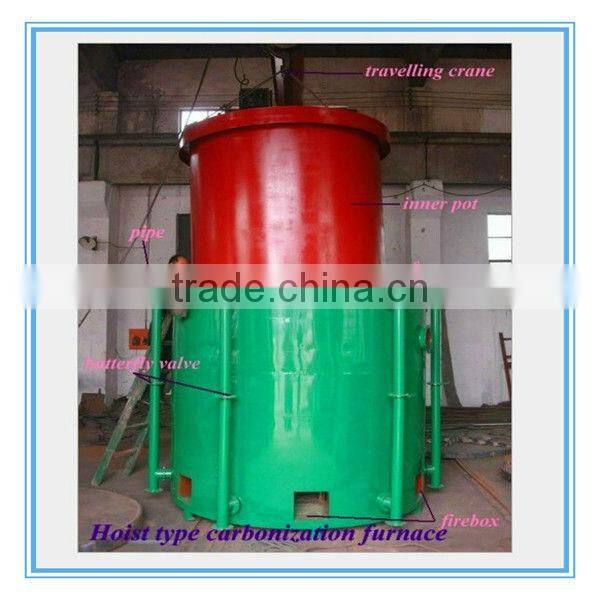

coconut shell charcoal kiln
Introduction
Charcoal kiln take high-tech purification technique, special high temperature resistant steel into precious metal, durable, not deformation, oxidation.
Technical parameters of charcoal kiln:
Model |
Capacity |
Diameter |
Heighth |
QL-260 |
260kg/4-6h |
1.45m |
1.85m |
QL-500 |
500kg/6-8h |
1.8m |
1.9m |
QL-1000 |
1000kg/12-16h |
2.15m |
2.2m |
Main datas of the charcoal:
Moisture |
Charcoal content |
Ash content |
Combustion time |
Heating value |
Volatilize content |
Combustion temperature |
0.98% |
83.28% |
3.68% |
200min/kg |
7.9kcal/kg |
6.68% |
880°C |
Procedure
1. Fill the four carbonization pots with biomass briquettes and woods. Use the small gantry crane to lift the pots into the hearths of carbonization furnace.
2. In the burning ovens under the two pots, put into the firewood and ignite them.
3. About one hour later, the temperature of the two pots will go up to 200°C. Then open all of valves, ignite the four burners and put out the firewood in the first two burning ovens.
4. After 30-40 minutes and the temperature reach around 430°C, take out the first carbonization pot with the longest heating time. And put it into the soil pit dug in advance for cooling naturally. Then put the standby pot filled with biomass briquettes and woods into the empty hearths. Same operation for the second pots when carbonization is finished.
5. At this moment, two pots is under cooling condition, two pots with semifinished charcoals, and two pots with new briquettes and
woods for new round of carbonization. The cycling operation makes the continuous production come true.
6. After cooling for 3/4 hours in pits, the finished charcoal can be taken out from the pots. Thereafter, there will be two pots of charcoals finished every one hour, and the target of capacity 200kg/h even more is reached (the capacity of every pot is 100-200kg). Such continuous production will make it to over 4 tons.
